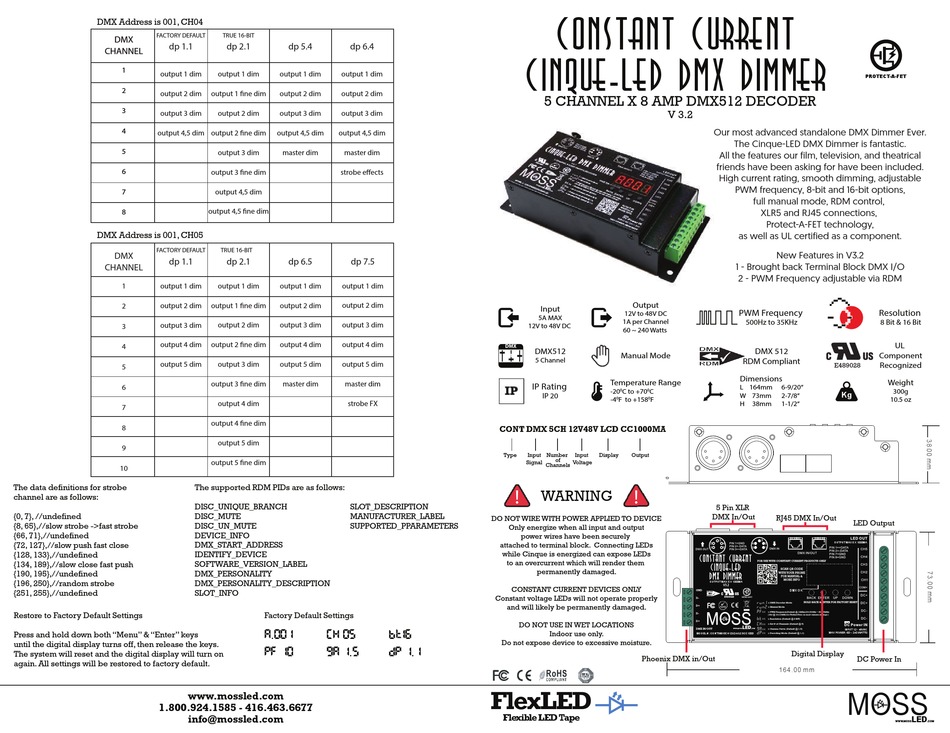

Moss LED FlexLED DMX512 Quick Start Manual

DMX Address is 001, CH04
FACTORY DEFAULT
DMX DMX
dp 1.1
CHANNEL CHANNEL
1 1
output 1 dim
2 2
output 2 dim
3 3
output 3 dim
4 4
output 4,5 dim
5 5
6 6
7 7
8 8
DMX Address is 001, CH05
FACTORY DEFAULT
DMX
dp 1.1
CHANNEL
1 output 1 dim
2 output 2 dim
output 3 dim
3
output 4 dim
4
output 5 dim
5
6
7
8
9
10
The data definitions for strobe
channel are as follows:
{0, 7}, //undefined
{8, 65},//slow strobe ->fast strobe
{66, 71},//undefined
{72, 127},//slow push fast close
{128, 133},//undefined
{134, 189},//slow close fast push
{190, 195},//undefined
{196, 250},//random strobe
{251, 255},//undefined
Restore to Factory Default Settings
Press and hold down both "Menu" & "Enter" keys
until the digital display turns off, then release the keys.
The system will reset and the digital display will turn on
again. All settings will be restored to factory default.
www.mossled.com
1.800.924.1585 - 416.463.6677
info@mossled.com
TRUE 16-BIT
dp 2.1 dp 5.4 dp 6.4
output 1 dim output 1 dim output 1 dim
output 1 ne dim output 2 dim output 2 dim
output 2 dim output 3 dim output 3 dim
output 2 ne dim output 4,5 dim output 4,5 dim
output 3 dim master dim master dim
output 3 ne dim strobe e ects
output 4,5 dim
output 4,5 ne dim
TRUE 16-BIT
dp 2.1 dp 6.5 dp 7.5
output 1 dim output 1 dim output 1 dim
output 2 dim output 2 dim
output 1 ne dim
output 2 dim output 3 dim output 3 dim
output 2 ne dim output 4 dim output 4 dim
output 3 dim output 5 dim output 5 dim
output 3 ne dim master dim master dim
output 4 dim strobe FX
output 4 ne dim
output 5 dim
output 5 ne dim
The supported RDM PIDs are as follows:
DISC_UNIQUE_BRANCH SLOT_DESCRIPTION
DISC_MUTE MANUFACTURER_LABEL
DISC_UN_MUTE SUPPORTED_PPARAMETERS
DEVICE_INFO
DMX_START_ADDRESS
IDENTIFY_DEVICE
SOFTWARE_VERSION_LABEL
DMX_PERSONALITY
DMX_PERSONALITY_DESCRIPTION
SLOT_INFO
Factory Default Settings
A.001 CH 05
PF 10 9A 1.5
CONSTANT CURRENT

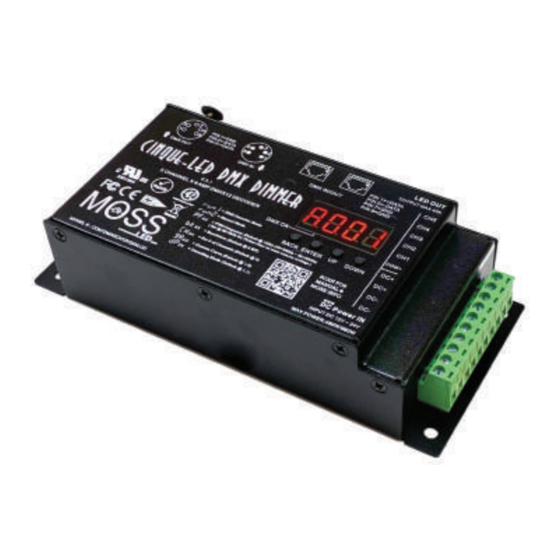

CINQUE-LED DMX DIMMER
5 CHANNEL X 8 AMP DMX512 DECODER
Input
5A MAX
12V to 48V DC
DMX
DMX512
512
5 Channel
IP Rating
IP 20
CONT DMX 5CH 12V48V LCD CC1000MA
Type Input Number
of
Signal
Channels
!
WARNING
DO NOT WIRE WITH POWER APPLIED TO DEVICE
Only energize when all input and output
power wires have been securely
attached to terminal block. Connecting LEDs
while Cinque is energized can expose LEDs
to an overcurrent which will render them
permanently damaged.
CONSTANT CURRENT DEVICES ONLY
Constant voltage LEDs will not operate properly
and will likely be permanently damaged.
DO NOT USE IN WET LOCATIONS
B 16
Indoor use only.
Do not expose device to excessive moisture.
DP 1.1
FlexLED
Flexible LED Tape
V 3.2
Our most advanced standalone DMX Dimmer Ever.
The Cinque-LED DMX Dimmer is fantastic.
All the features our film, television, and theatrical
friends have been asking for have been included.
High current rating, smooth dimming, adjustable
PWM frequency, 8-bit and 16-bit options,
as well as UL certified as a component.
1 - Brought back Terminal Block DMX I/O
2 - PWM Frequency adjustable via RDM
Output
PWM Frequency
12V to 48V DC
1A per Channel 500Hz to 35KHz
60 ~ 240 Watts
Manual Mode
RDM Compliant
Dimensions
Temperature Range
L 164mm
-20 0 C to +70 0 C
W 73mm
-4 F to +158 F
0 0
H
Input Display Output
Voltage
!
5 Pin XLR
DMX In/Out
CONSTANT CURRENT
CINQUE-LED
DMX DIMMER
OUTPUT MAX 5 X 1000MA
V3.2
GND
E489028
D-
D+
D-
D+
DMX IN/OUT
MODEL # : CONTDMX5CH12V24VLCDCC1000
Phoenix DMX in/Out
Protect-A-Fet
full manual mode, RDM control,
XLR5 and RJ45 connections,
Protect-A-FET technology,
New Features in V3.2
Resolution
8 Bit & 16 Bit
UL
DMX 512
Component
Recognized
E489028
Weight
6-9/20"
300g
Kg
2-7/8"
10.5 oz
38mm 1-1/2"
RJ45 DMX In/Out
LED Output
OUTPUT MAX 5 X 1000MA
FOR USE WITH CONSTANT CURRENT PRODUCTS ONLY
SCAN QR CODE
WITH YOUR PHONE
FOR MANUAL &
MORE INFO
DMX OK
HOLD BACK & ENTER FOR FACTORY RESET
= DMX Decoder Mode
= Manual Mode
XX = PWM Frequency(Default @ 10kHz)(00=500Hz ~ 35=35kHz)
( Set @ 10=10kHz for Flicker-Free on most camera settings )
XX = Resolution (Default @ 8 BIT)
XX = Set # of Channels (Default @ 5)
XX INPUT 12 - 48VDC
= Gamma Curve (Default @ 1.5)
XX MAX POWER: 60 ~ 240 WATTS
= Decoding Mode (Default @ 1.1)
Digital Display
DC Power In
164.00 mm
