Owner's Manual

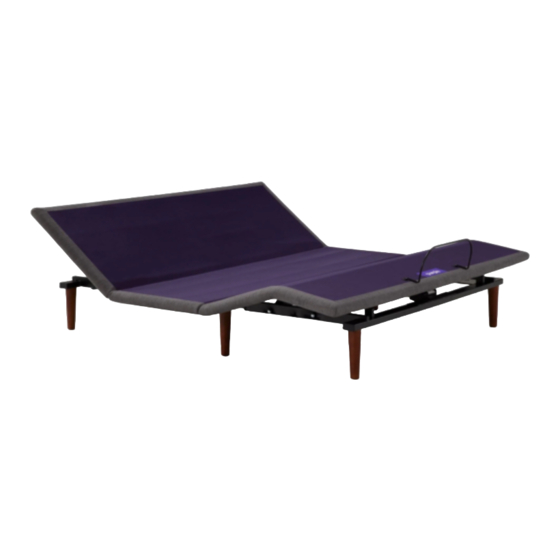

The Purple
®
Ascent Adjustable Base™
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ascent Adjustable Base and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Purple Ascent Adjustable Base

Summary of Contents for Purple Ascent Adjustable Base

  • Page 1 Owner’s Manual The Purple ® Ascent Adjustable Base™...

  • Page 2: Table Of Contents

    Purple® 10 Year Limited Warranty ........

  • Page 3: Safety Precautions And Usage Statements

    Safety Precautions Usage Statements ATTENTION: IMPORTANT SAFETY DISCLAIMERS Read the following information before using this product. Failure to use a surge protection device could compromise safety or cause product malfunction and could void the electrical portion of your warranty.
  • Page 4 Keep air openings STANDARDS free of lint, hair, and the like. Do not drop Purple adjustable bed bases are designed or insert any object into any opening. Dis- solely for in-home use. This base was not continue use of the bed base and contact a...
  • Page 5 This is normal. MATERIALS Purple adjustable bases are constructed from various materials including woods, metals, plastics and fabrics. Tension, pres- sure, or movement applied to the frame, THAT “NEW PRODUCT”...
  • Page 6 SAFETY PRECAUTIONS and USAGE STATEMENTS WEAR AND TEAR SAVE THESE INSTRUCTIONS. Wear and tear is damage that naturally and inevitably occurs as a result of normal use or aging. FCC Compliance This equipment has been tested and found FABRIC CARE to comply with the limits for a Class B dig- To prolong the life of your fabric, protect ital device, pursuant to part 15 of the FCC...

  • Page 7: Parts List

    Parts List...
  • Page 8 PARTS LIST All electronics and components that need to be installed are located in boxes under the base or attached to the frame. Wireless Remote Control (1) Mattress Retainer Bar (1)* Legs (6) Power Cord (1) Power Supply (1) Sync Cord ‡ Battery Backup Strap (1) (2) 9V Batteries (not included) Connecting Strap‡...
  • Page 9 F ‡ H ‡ HEADBOARD BRACKET COMPONENTS (Optional) J † K † L † M † N † O †...

  • Page 10: Base And Remote Overview

    Base and Remote Overview...
  • Page 11 BASE Head Motor Ports Ports Control Foot Motor...
  • Page 12 REMOTE Head Up Foot Up Head Down Foot Down Anti-Snore Preset Zero-G® Preset Flat Preset Sitting Preset...

  • Page 13: Quick Reference Guide

    Quick Reference Guide...
  • Page 14 ELECTRONICS OVERVIEW Remote Emergency Battery Backup Strap Head Motor Foot Motor Control CONTROL BOX Ports POWER MULTIFUNCTION Input Cord Power Supply Power Cord...

  • Page 15: Installation Guide

    Installation Guide...
  • Page 16 INSTALLATION GUIDE We’ve made the setting up of your Purple Ascent Adjustable Base as easy as possible so you can begin relaxing in less than 15 minutes! Do not attempt to set up the base by yourself. Always set up with the help of an additional, able-bodied person.
  • Page 17 INSTALLATION GUIDE If installing a King, see instructions on pages 19-24. Flip the base & connect the cables. • Uncoil the input cord (connected to control box’s power port) and plug it into the power supply. • Carefully flip the base over on to its legs.
  • Page 18 INSTALLATION GUIDE ® Purple has partnered with Ergomotion on this amazing product. ® For technical or warranty support please contact Ergomotion 1-888-550-3746. Install mattress retainer bar and test remote functions. Place each end of the mattress retainer • bar into the inserts at the foot of the base and rotate the bar so that it rests on the edge of the base.

  • Page 19: King Installation Guide

    King Installation Guide...
  • Page 20 KING INSTALLATION GUIDE Short Bolts (2) Long Bolts (2) Nuts (4) Washers (4) Clevis Pins (2) Cotter Pins (2) Box Wrenches (2) Legs (6) Unfold the base Always use two people when setting up, moving, or flipping base. Unfold the base so that the bottom side is facing up.
  • Page 21 KING INSTALLATION GUIDE ® Purple has partnered with Ergomotion on this amazing product. ® For technical or warranty support please contact Ergomotion 1-888-550-3746. Secure hinge with short bolt Insert a short bolt through the first hole in the hinge of the frame.
  • Page 22 KING INSTALLATION GUIDE Secure hinge with long bolt Insert a long bolt through the second short bolt hole in the middle of the hinge of the frame. long bolt Secure the end of the long bolt with a washer and a nut. Tighten the bolts with the box wrenches provided.
  • Page 23 KING INSTALLATION GUIDE Install pins Insert a clevis pin through the hole of the connecting point located next to the leg inserts at the middle of the frame. Secure it with a cotter pin. Do this on each side of the frame.
  • Page 24 KING INSTALLATION GUIDE ® Purple has partnered with Ergomotion on this amazing product. ® For technical or warranty support please contact Ergomotion 1-888-550-3746. Screw in the legs Attach legs by screwing them into leg threads. Do this on all four corners and on each side in the middle.

  • Page 25: Remote Control

    Remote Control...
  • Page 26 REMOTE OVERVIEW  The HEAD arrows lift and lower the head section of the base.  The FOOT arrows lift and lower the foot section of the base. The ANTI-SNORE preset posi- tion* will elevate the head section slightly and may help reduce snoring.

  • Page 27: Pairing The Remote

    PAIRING REMOTE CONTROL The original remote that comes in the box is already paired to the adjustable base. No further action is required. In the event that the remote is not paired with the base, follow the steps below. Unplug the power cord from your pow- er outlet.
  • Page 28 Optional Adjustments...

  • Page 29: Connecting Strap

    CONNECTING STRAP (ONLY INCLUDED WITH TWIN XL) Connecting straps are secured to the base frame upon delivery. Legs are required for the installation of the connecting straps. The straps are used for holding two Twin XL bases together for a Split King. With the bases in their desired location, slightly loosen both legs to allow the strap to fit on the leg bolt, between the...

  • Page 30: Syncing Two Bases

    SYNCING TWO BASES (OPTIONAL) A Sync Cord is included with the Twin XL size base. Not available on Queen, Full or Full-Long size bases. The Sync Cord connects the two control boxes to a single remote for the synchronization of two bases. This process is most commonly used for syncing two connected Twin XL bases.

  • Page 31: Headboard Brackets

    HEADBOARD BRACKET INSTALLATION GUIDE (OPTIONAL) Headboard brackets are not included. If interested in headboard brackets please visit purple.com to order or call Purple at 1-888-848-0248. A 9/16” (14 mm) & 1/2” (13 mm) socket and crescent wrench are necessary to complete installation.
  • Page 32 HEADBOARD BRACKET INSTALLATION GUIDE (OPTIONAL) Attach the plastic spacer and T-Bracket. Measure the distance between the mounting holes on the headboard and install the spacer and attachment plate to accommodate the headboard. To install the plastic spacer and at- tachment plate, you will need (2) long bolts and (2) nuts.

  • Page 33: Emergency Battery Backup Strap

    BATTERY BACKUP STRAP For emergency use only, if the base is in an elevated position and the power goes out, you can use the battery backup strap to return the bed to a flat position. Batteries are not to be used for normal operation of the bed.
  • Page 34 BATTERY BACKUP STRAP ® Purple has partnered with Ergomotion on this amazing product. ® For technical or warranty support please contact Ergomotion 1-888-550-3746. Connect the end of the Battery Backup Strap to the input cord that is attached to the control box.

  • Page 35: Troubleshooting

    TROUBLESHOOTING If one or more functions on the bed base have stopped operating: • Check under the bed base to verify that the wired connections are secure and that there are no cords or bedding obstructing the movement of the base. •...

  • Page 36: Notes

    NOTES...
  • Page 37 NOTES...

  • Page 38: Purple® 10 Year Limited Warranty

    PURPLE 10 YEAR LIMITED WARRANTY FULFILLED THROUGH ERGOMOTION ® Register your warranty online at: https://warranty.ergomotion.com/warranty Please prepare a digital copy of your proof of purchase (invoice or sales receipt) when registering online. 2-Year Hassle Free Warranty part, or the entire adjustable base if deemed...
  • Page 39 C. Damage caused if the adjustable base has PERMITTED BY APPLICABLE LAWS, been mishandled (including during shipping), ANY IMPLIED WARRANTIES (IF APPLI- subject to physical abuse or an improper power CABLE) ARE LIMITED IN DURATION supply, or by failing to adhere to the Owner’s TO THE DURATION OF THIS WARRAN- Manual and this warranty.
  • Page 40 ©2020 PURPLE INNOVATION, LLC. TECHNICAL AND WARRANTY SUPPORT: PURPLE HAS PARTNERED WITH ERGOMOTION ® TO PROVIDE SUPPORT FOR THE PURPLE ASCENT ADJUSTABLE BASE Phone 1.844.534.3676 1.805.979.9399 Email info@ergomotion.com www.ergomotion.com The Purple ® Ascent Adjustable Base™...
