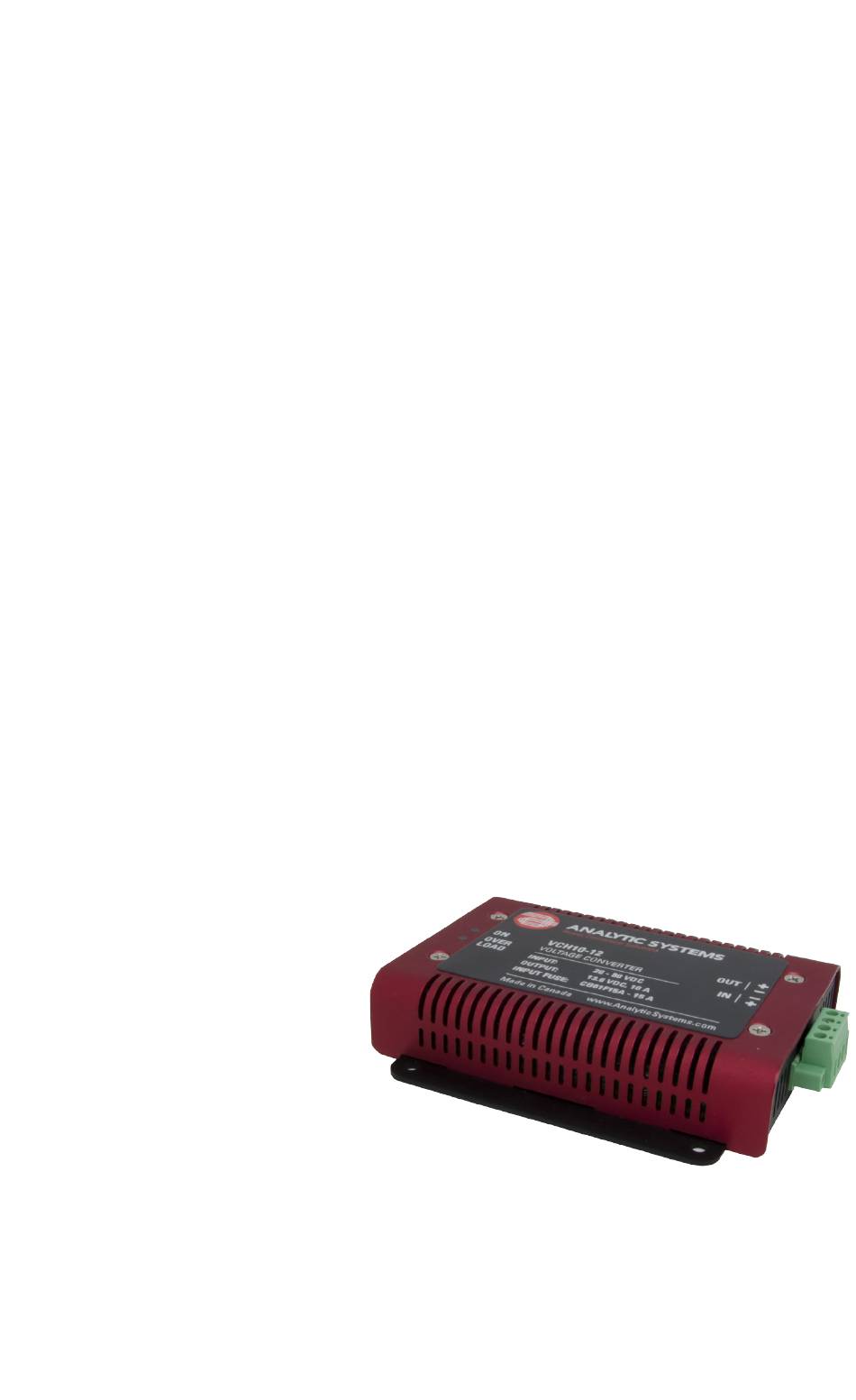

- Page 1 INSTALLATION & OPERATION MANUAL VCH10 Voltage Converter...
-
Page 2: Important & Safety Instructions
IMPORTANT & SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS — this user guide contains important safety and operating instructions for the battery charger. VOLTAGE CONVERTER PRECAUTIONS 1. Do not expose the voltage converter to rain or snow unless it is a sealed model. 2. - Page 3 Introduction The VCH10 Step Down series of Voltage Converters supply up to 10 amps of output current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC for use in automotive, heavy equipment, marine, industrial, rail or alternative energy environments.
-
Page 4: Specifications
Specifications Input Model VCH10-12 VCH10-24 VCH10-32 VCD10-36 VCH10-48 Input Volts VDC 20 - 80 30 - 80 40 - 80 45 - 80 60 - 80 Input Fuse CB61F15A - 15 Amp Surface Mount Output Nominal VDC Actual 13.6 27.2 36.3... -
Page 5: Installation
Installation MOUNTING Mount the unit in a DRY location on any convenient surface using #8 screws. POWER CONNECTION The unit is equipped with a terminal strip for easy connection. Markings on the unit indicate the proper wire connections. IN + Input Positive IN - Input Negative... -
Page 6: Limited Warranty
Limited Warranty 1. The equipment manufactured by Analytic Systems Ware (1993) Ltd. (the “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. 2. This warranty is in effect for: 3 Years from date of purchase by the end user for standard products offered in our catalog. 2 Years from date of manufacture for non-standard or OEM products 1 Year from date of manufacture for encapsulated products.
