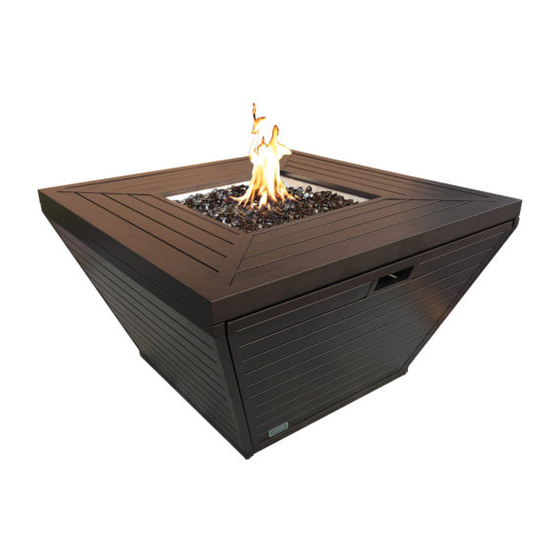

Aluminum Fire Table
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Read the owner's manual thoroughly before installing or servicing this
result causing property damage, personal injury or loss of life.
CAUTION
Firebowl Pan and Flame Glass are wet!
If you smell gas:
1. Shut off gas to the appliance.
3. If odor continues, keep
away from the appliance and
immediately call your gas
Do not store or use gasoline
liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected
for use shall not be stored in
the vicinity of this or any other
appliance.
For outdoor use only.
DANGER
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
Owner's Manual
Items #
9104, 9718
DANGER
WARNING
WARNING
CARBON MONOXIDE HAZARD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9104 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunbeam 9104

  • Page 1 Items # 9104, 9718 Aluminum Fire Table DANGER If you smell gas: 1. Shut off gas to the appliance. 3. If odor continues, keep away from the appliance and immediately call your gas WARNING Do not store or use gasoline liquids in the vicinity of this or any other appliance.
  • Page 2: Safety Information

    Safety Information explosion, injury or death. WARNING • The installation of this unit must adhere to local codes or either the National Fuel Gas Code, ANS Z21.97-2017/CSA 2.41-2017 Standard for Outdoor Decorative Gas Appliances. • THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a ventilated space and shall not be used in any enclosed area.
  • Page 3 Safety Information cleaned regularly. • Inspect all elements of this heating unit before each use. If there is damage, the burner must be replaced. • Keep the hose out from any pathways to eliminate any accidental damage. (if external tank) •...
  • Page 4: Package Contents

    Package Contents PART DESCRIPTION QUANTITY Fire Table Protective Cover Flame Glass (32 lbs) 1 Box Pre-Assembled Feet Page 4...
  • Page 5: Hardware Contents

    Hardware Contents PART DESCRIPTION QUANTITY Burner Firebowl Pan Ignition Pin Thermocouple Corrugated Pipe LPG Reducer Valve with LPG Hose and Regulator Control Knob Pulse Ignition Heat Resistant Panel Ignition Screen Control Panel NG Reducer AAA Batteries 1-877-387-3639 Page 5...
  • Page 6 Safety Information Please read and understand this entire manual before attempting to assemble, operate or install this appliance. If you have any questions regarding the product, please call customer service 1-877-387-3639, 8 a.m. – 4 p.m., EST, Monday – Friday. This appliance has been tested to and complies with the ANS Z21.97-2017/CSA 2.41-2017, Outdoor Decorative Gas Appliances CGA CR 97-003 Outdoor Gas Fireplaces.
  • Page 7 Assembly Natural Gas Conversion Natural gas conversion must be performed only by a natural gas provider or service company. Refer to pages 11 - 13 for more information. glass (D) around burner and put lid (A) in place. 1.1. Leave adequate space around the Ignition Screen for ventilation.
  • Page 8 Assembly Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. A cylinder must be stored outdoors in a well-ventilated area out of reach of children. A disconnected cylinder must have all dust caps tightly installed and must no be stored in a building, garage or any other enclosed area. The maximum inlet gas supply pressure: 250 psi.
  • Page 9 Assembly 6 A. Install Cylinder. Put the cylinder into bottom Plate. 6 B. Secure the cylinder by tightening the screw in the bottom plate. 6 C. Close the door. Fire table assembly is now complete. 1-877-387-3639 Page 9...
  • Page 10 Assembly 7. Perform Leak Test WARNING Perform all tests outdoors. NEVER leak test when smoking. have been leak tested and do not leak. Hose/Regulator Connection (I) Make 2-3 oz. of leak test solution (one part liquid dishwashing detergent and three parts water). (III) Apply several drops of solution whe re hose attaches to regulator.
  • Page 11: Natural Gas Conversion

    Natural Gas Conversion CAUTION Natural gas conversion must be performed only by a natural gas provider or service company. 1. Disconnect the propane hose from the gas valve. gas valve propane hose red mark. propane bellows propane bellows 1-877-387-3639 Page 11...
  • Page 12 Natural Gas Conversion bellows tightly, then connect and tighten the natural painted with black mark. inlet tube bellows 4. Connect the natural gas hose with the gas valve by screwing clockwise tightl y. gas valve Requires a CSA Certified NG Conversion kit 50 000 BTU and 3/8”...
  • Page 13 Natural Gas Conversion 6. Retain the rating label for your records. EN VERSION: ANS Z21.97-2017 / CSA Decorative Outdoor 2.41-2017 Outdoor Decorative Gas Appliances Gas Firepit Table MFG Date: Series No.: Model: Manufacturer: Foshan Genux Metal Products Co.,Ltd No.11 Beiwei Rd,Xihai Industrial Zone,Beijiao Town, Shunde District, Foshan City, Guangdong, China Type of Gas: Natural Gas or Propane Gas ORIFICE SIZE: NG=3.66mm, LPG=2.12 mm Manifold pressure for input Adj.
  • Page 14: Operation

    Operation Keep children away during assembly, as this item contains small parts which can be swallowed by children. Do not use indoors or inside any enclosure. Retain the assembly instructions for future reference. Installer – Please leave these instructions with the owner. For a safe heating experience, perform these checks before each use.
  • Page 15: Warning For Your Safety

    Operation Caution: Do not attempt to operate until you have read and understand all Safety Information in this manual and all assembly is complete and leak checks have been performed. Before Turning Gas Supply On: enclosed area. 3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and there are no leaks. 4.
  • Page 16: Care And Maintenance

    Care & Maintenance you perform the following maintenance activities WARNING on a regular basis: FOR YOUR SAFETY Keep exterior surfaces clean. minutes after use. Fire table is hot to the touch. or corrosive cleaning agents. 2. While cleaning your unit, be sure to keep the area around the burner dry at all times.
  • Page 17 Storage CAUTION Firebowl Pan and Flame Glass are wet! cover (C) to prevent water from accumulating in the Firebowl Pan and to protect exterior surfaces. direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris). 1-877-387-3639 Page 17...
  • Page 18: Limited Warranty

    5. Pictures should be sent to custserv@jaytrends.com Jay Trends Sales 1901 Aut. Transcanadienne Dorval, QC H9P 1J1, Canada Customer Service: 1-877-387-3639 in USA & Canada custserv@jaytrends.com © 2020 Sunbeam Products, Inc. All rights reserved. Distributed by Jay Trends Sales, Dorval, Canada H9P 1J1. Page 18...
