Checking the Contents

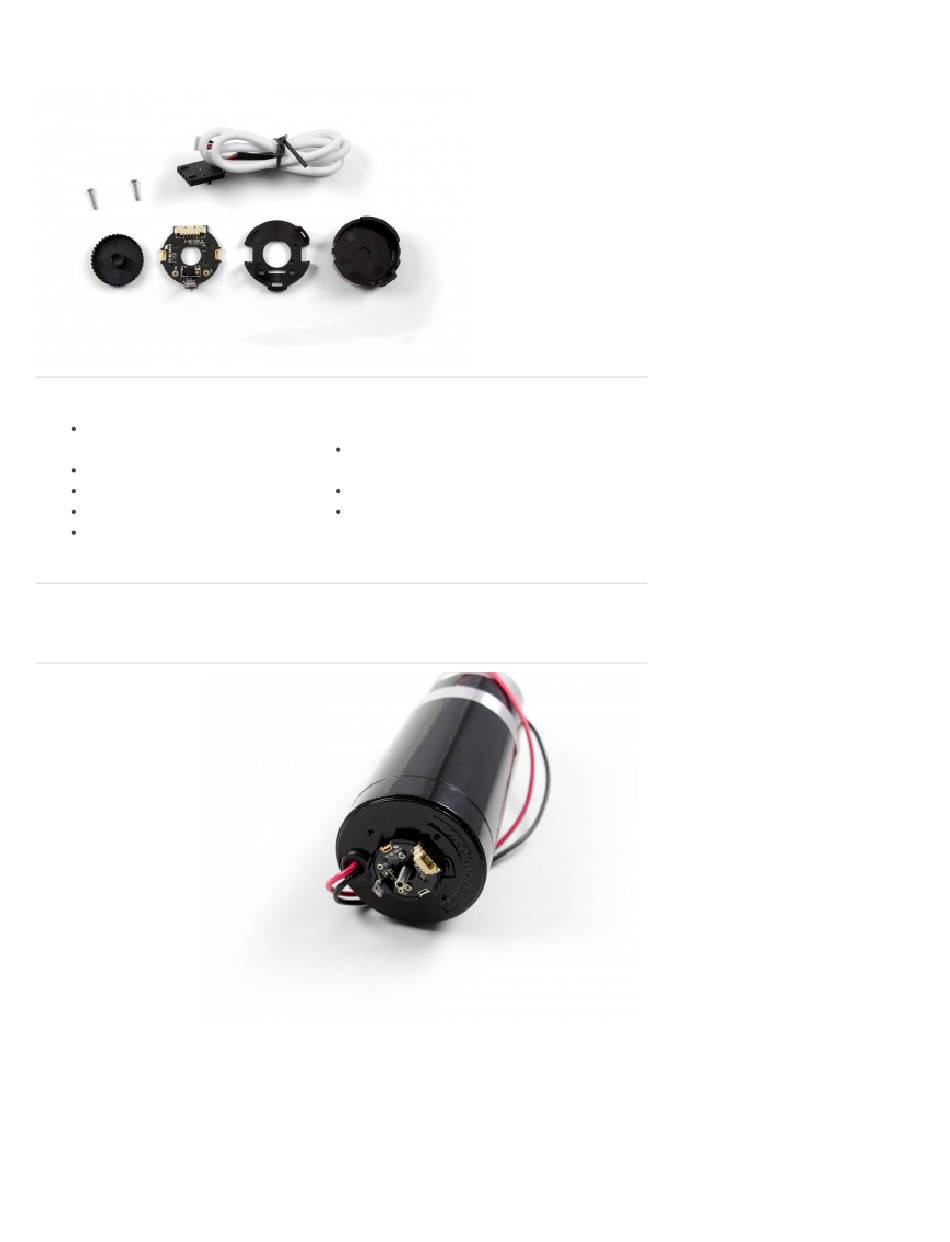

You should have received:
Plastic encoder cap
and base
Plastic encoder disk
Encoder PCB
Two screws
3035 - Encoder
Cable
Connecting the Pieces
Take the
plastic base,
the encoder
PCB, and
the two
screws.
Place the
PCB inside
the base in
the
orientation
shown
above so
that it fits in.
Place the
combined
base and
PCB on the
back of the
motor such
that the
mounting
holes line
up with the
holes in the
base. There
https://www.phidgets.com/?tier=3&catid=64&pcid=57&prodid=1016
40 CPR Quadrature Encoder - ENC4109_0 at Phidgets
In order to test your new Phidget you will also
need:
A motor with a rear shaft and compatible
mounting holes
A motor controller Phidget
A Phidget with an encoder input
1/3
Advertisement
Table of Contents
Summary of Contents for Phidgets 40 CPR Quadrature Encoder
- Page 1 3/8/2018 40 CPR Quadrature Encoder - ENC4109_0 at Phidgets Checking the Contents You should have received: In order to test your new Phidget you will also need: Plastic encoder cap and base A motor with a rear shaft and compatible...
- Page 2 3/8/2018 40 CPR Quadrature Encoder - ENC4109_0 at Phidgets are two orientations possible- whichever is more convenient for motor wiring. Place the screws in the two holes in the PCB and screw until the base and PCB are firmly attached,...
- Page 3 3/8/2018 40 CPR Quadrature Encoder - ENC4109_0 at Phidgets Take the plastic cap and align the hole with the white connector. Press the cap on so that the tabs on either side click in. Attach the cable to the white connector.
