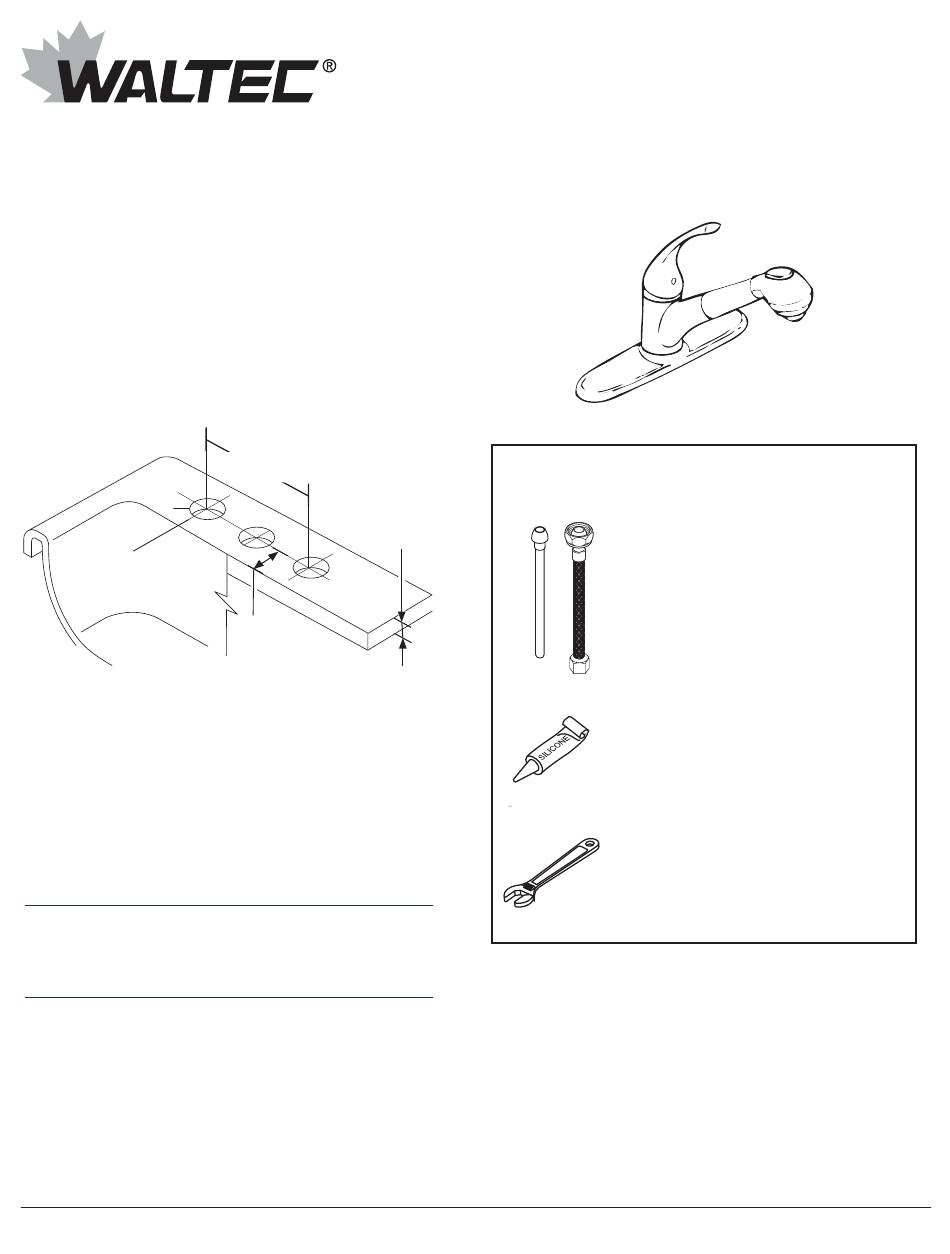

Model/Modèle
81W450
Sink Hole Dimensions
Dimensions des orifices de l'évier
1-3/8" Dia.
(34.9 mm)
WARNING: This faucet should not be used with portable dishwashers.
AVERTISSEMENT : On ne doit pas brancher un lave-vaissele portatif
sur ce robinet.
Estimated Time for Assembly
The estimated time to install this faucet is 45 minutes. The estimated
time to install the spray & hose assembly is 20 minutes. These
estimates do not include removing the old faucet & spray assembly.
Durée d'installation estimée
Le temps nécessaire à l'installation du robinet est estimé à 45
minutes. Le temps nécessaire à l'installation de la douchette et du
tuyau souple est estimé à 20 minutes. Ces estimations n'incluent
pas le temps de dépose du vieux robinet et de la vielle douchette.
8"
(20.32 cm)
2-1/2" Max.
(63.5 mm)
2" Max.
(50.8 mm)
SINGLE LEVER HANDLE PULL-OUT
KITCHEN FAUCET
ROBINET DE CUISINE À UNE MAN-
CHETTE À LEVIER AVEC DOUCHETTE
RÉTRACTABLE
Articles dont vous pouvez avoir besoin :
Water supply hook-ups:
(NOT PROVIDED)
Choose hook-ups for 1/2" I.P.S. connections;
Ball nose riser (3/8" O.D. copper tubing), or
1/2" I.P.S. faucet connector.
Raccords :
(NON FOURNIS)
Choisissez des raccords compatibles 1/2 po IPS.
Tubes-raccords à portée sphérique (tube en cuivre
3/8 po d.e.) ou raccords de robient 1/2 po IPS.
Silicone sealant:
(NOT PROVIDED)
If sink is uneven, use silicone sealant under base
of faucet.
Composé d'étanchéité à la silicone :
(NON FOURNIS)
Si la surface de l'évier est inégale, appliquez du
composé d'étanchéité à la silicone sous la base
du robinet.
Wrench(es):
(NOT PROVIDED)
For faucet removal/installation.
Clé(s) :
(NON FOURNIS)
Pour pose et dépose de robinet.
Page 1
You may need:
210028 Rev. A
Advertisement
Table of Contents
Summary of Contents for Walter 81W450
- Page 1 SINGLE LEVER HANDLE PULL-OUT KITCHEN FAUCET ROBINET DE CUISINE À UNE MAN- CHETTE À LEVIER AVEC DOUCHETTE RÉTRACTABLE Model/Modèle 81W450 Sink Hole Dimensions Dimensions des orifices de l’évier 8" You may need: (20.32 cm) Articles dont vous pouvez avoir besoin : 2-1/2"...
- Page 2 For Deck Mount Style (Steps 1-3) Install locknuts (1) onto threaded shanks (2) Set new faucet into place over baseplate. Push and hand-tighten. No wrench is required. faucet as far back on sink as possible. Secure Shut off water supplies. Remove old faucet. to sink by installing mounting bracket (1) and Insert bolts (1) into baseplate (2).
- Page 3 Pass hose (1) through faucet (2). Snap clip (3) to hose. Be sure clip is CONNECT TO WATER SUPPLIES. oriented as illustrated. Attach hose by firmly pushing onto valve shank (4) (HOOK-UPS NOT PROVIDED). (at back of valve) until it clicks. WARNING: Do not remove check valve assemblies during installation.
- Page 4 Care Instructions Care should be given to the cleaning of this product. To clean: • Wipe gently with a damp cloth. • Blot dry with a soft towel. Maintenance SHUT OFF WATER SUPPLIES. When replacing a part, follow the illustrated instructions provided on the back of the Repair Part kit.
- Page 5 RP44476 Lever Handle with Set Screw & Button Manette avec Vis de Calage et Bouton RP44478 RP41376 Adjusting Ring Clip Anneau de réglage Hose Assembly Agrafe (includes Gasket) Tuyau souple Cam and Packing (inclut Joint) RP44123 Jeu de cames Repair Kit Kit de réparation Ball Assembly Rotule...
- Page 6 Waltec Lifetime Faucet and Finish Limited Warranty ® All parts and finishes of the Waltec faucet are warranted to the original OR DAMAGES ARE EXCLUDED. Some states/provinces do not allow the consumer purchaser to be free from defects in material & workmanship for exclusion or limitation of incidental or consequential damages, so the above as long as the original consumer purchaser owns their home.
