Summary of Contents for AkcesMED PARAMOBIL

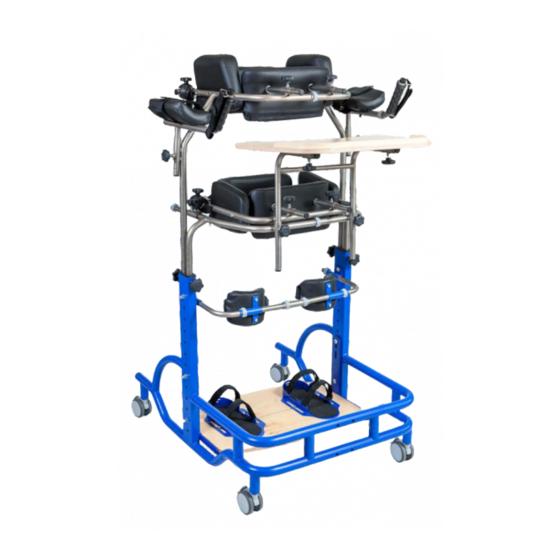

- Page 1 STANDING FRAME P A R A M O B I L ™ USER MANUAL...
- Page 2 Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-Med employee or at specialized medical store! AKCES-MED. Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning. Product marked with the CE sign is Class I medical device, of rule 1, consistent with the requirements of Regulation (EU) 2017/745 of the European Parliament and of the Council of 5...
-
Page 3: Table Of Contents
PARAMOBIL CONTENTS 1. The Purpose of user manual....................5 2. Indications for use.........................5 3. General characteristics of standing frame................6 3.1 Standard equipment....................6 3.2 Additional equipment....................7 4. Size table..........................9 5. Description how to assembly standing frame..............11 A. Static version...................11 B. Dynamic version................12 C. - Page 4 PARAMOBIL INTRODUCTION The static-dynamic rehabilitation standing frame was designed to help in rehabilitation of people with paresis of lower limbs as well as trunk and to enable standing in upright position, walking and active rehabilitation. We did our best to give you the product which is functional, ergonomic and safe. The advantages of our standing frame are: light and stable base, easy regulation of hip clamping-ring and chest clamping-ring, solid closings etc.
-
Page 5: The Purpose Of User Manual
User manual should be kept in easily accessible place. It is designed for people who look after the disabled , and for both doctors as well as physiotherapists who operate the device. Before using the PARAMOBIL™ standing frame, user is obliged to familiarize himself/herself with user manual. - Page 6 PARAMOBIL Contraindications: While standing upright, the user who is in a standing position should be closely monitored. The therapy should be discontinued in case of such side effects as: turning pale, sweating or fainting, joint strain and the resulting deformities of the body. Further proceeding should be consulted with the medical specialist or a physiotherapist who prescribed the treatment.
-
Page 7: General Characteristics Of Standing Frame
PARAMOBIL GENERAL CHARACTERISTICS OF STANDING FRAME 3.1. Standard equipment 1. Frame with rotating wheels equipped with brakes 2. Chest clamping-ring with pelot-pads 3. Hip clamping-ring with pelot-pads 4. Upper limbs stabilizers (bolsters and grips) 5. Feet stabilizer 6. Knee stabilizer with pelot-pads 7. -
Page 8: Additional Equipment
PARAMOBIL 3.2. Additional equipment Safety PML_002 Aid for moving PML_008/019 Castors with PML_009 Castors with patients AM_P friction brake friction brake PML_010 Castors with blockade PML_011 Castors with fixed PML_015/016/020 Tango of reverse movement of direction of movement Wheel standing frame... - Page 9 PARAMOBIL Lower limb braces PML_201 Lower limb immobilizer PML_403 Tray PML_406 Rotor gripa AM-TUD-KD PML_208 Universal knee PML_205 Lower limb extension Lower limb in 20° flexion PML_207 immobilizer OKD-01 immobilizer OKD-03 immobilizer OKD-03/20 PML_210 Post operative knee PML_212 Foot-drop brace with PML_211 Post operative knee brace with polycentric 20°...
-
Page 10: Size Table
PARAMOBIL SIZE TABLE Symbol Measurement Unit Size 1 Size 2 Size 3 Size 0 [cm] Indicative user height* 90 - 150 110 - 170 130 - 190 130 - 200 [cm] Pelvic support width [cm] Pelvic support depth 15-24 15-28... -
Page 11: Description How To Assembly Standing Frame
PARAMOBIL DESCRIPTION HOW TO ASSEMBLY STANDING FRAME A. Static version Picture 1 Picture 3 Picture 2 Picture 4 Picture 5 www.akces-med.com +48 17 864 04 70 export@akces-med.com... -
Page 12: Dynamic Version
PARAMOBIL B. Dynamic version Chest and hip clamping-rings and upper limbs stabilizers should be installed like in static version (Picture 1 i Picture 3) Install the separator according to the Picture 6. Picture 6 C. Rehabilitation version Chest and hip clamping-rings and upper limbs stabilizers should be installed... -
Page 13: Description How To Use Standing Frame
Suitably trained persons have to assist patient while doing exercises. Standing frame PARAMOBIL™ has a module construction equipped with three functions: static, dynamic and rehabilitating. Selection of particular units of the standing frame and their proper adjustment depends on chosen functions. - Page 14 PARAMOBIL Verticalize patient, fasten both fasteners of hip and chest clamping-ring (double protective system – upper and lower blockades). Then adjust the knee pelot- pads to user's knees (vertical and horizontal regulation) by unfastening the snap fasteners, shifting pelot-pads and fastening the snap fasteners. Finally button up VELCRO stickers (picture 2 and 3).
-
Page 15: Dynamic Function
PARAMOBIL CAUTION! While regulating the height of the hip clamping- ring and chest clamping-ring you cannot exceed the double lines on cantilever. Patient's forearm should be placed on supporters (their height can be regulated), hands should be placed on handles (their... -
Page 16: Rehabilitation Function
C. REHABILITATION FUNCTION -Enables active rehabilitation of patient's flower limbs in vertical position. Specific construction of standing frame PARAMOBIL™ enables to use the rehabilitation function separately or by reassembly of accessories of dynamic and static functions (without necessity of leaving the standing frame). - Page 17 During using of electric rotor patient should seat on saddle comfortable. Unacceptable is to stand by patient onto rotor's pedal. After exercising with standing frame PARAMOBIL™ patient must return safely on wheelchair, chair, armchair, bed etc. www.akces-med.com +48 17 864 04 70...
- Page 18 PARAMOBIL CAUTION! Patient cannot leave standing frame independently! To leave standing frame the following should be done (hints for doctors of rehabilitation): 1. Block the wheels of standing frame using brakes. 2. At the back of standing frame put the wheelchair, chair, armchair etc.
-
Page 19: The Use Of Standing Frame
PARAMOBIL THE USE OF STANDING FRAME CAUTION! PARAMOBIL™ has to be used with compliance to guidelines included in this user manual. Remember to use the product only with someone who is trained and knowledgeable. Do not forget to prepare both product as well as patient before using PARAMOBIL™! -
Page 20: How To Use Standing Frame
PARAMOBIL 7.2. How to use PARAMOBIL 1. Before use it is necessary to: Unfold the device; § Place the device on even ground; § Make sure that all parts a re serviceable, correctly mounted and stable; § Block brakes; §... -
Page 21: Upright Position
PARAMOBIL 7.3. Upright position CAUTION! The length of time for upright position process is different for each patient. It is recommended to extend this time during the initial period (adaption period for the change of position). Either doctor or physiotherapist can make decision concerning the length of upright position process. - Page 22 PARAMOBIL Incorrect adjustment of the device can lead to side effects such as: fainting, body deformities, overloading joints. It is highly advisable to adjust the device before every use of a standing frame. This adjustment has to be done only by a trained person or therapist. If...
-
Page 23: Safety Rules
It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of PARAMOBIL™ and its size. It is also essential to familiarize with the guidelines described in user manual before using the device. - Page 24 PARAMOBIL 2. It is forbidden to use the device for different purposes that it is intended to. 3. It is forbidden to use the device when it is damaged or any part is missing. 4. It is forbidden to leave the patient unattended.
-
Page 25: Terms Of Warranty
PARAMOBIL It is forbidden to make any changes concerning device's structure due to the fact that it is dangerous and it results in loosing warranty. Under no circumstances should an unqualified person repair or alter the product and its construction, as the health and safety of the user depend on it as well as it will lead to the loss of warranty. -
Page 26: Maintenance And Cleaning
PARAMOBIL MAINTENANCE AND CLEANING The standing frame PARAMOBIL ™, which is a medical device, should always be kept clean and should be used in accordance with the manufacturer's instructions. The standing frame should be kept in a clean, dry and ventilated room. Maintenance and cleaning must be done at least once a month. - Page 27 PARAMOBIL Remember that upholstery has to be always dry before using! The manufacturer of the standing frame, Akces-MED Sp. z o. o., is not responsible for any damages caused by using unsuitable cleaners. Before using it is necessary to: clean wheels;...
-
Page 28: Labelling
PARAMOBIL LABELLING Symbols 11.1. Declaration that the product meets Dry vertically the essential requirements Catalog number Do not chlorinate Serial number Do not iron Please read the manual instructions before Do not dry in a drum dryer You need to take special precautions... - Page 32 MANUFACTURER Akces-MED Sp. z o.o. Jasionka 955B 36-002 Jasionka tel. +48 17 864 04 70 e-mail: export@akces-med.com BDO: 000031619 Authorised Dealer Date of issue: 15.09.2006 The last update: 20.05.2021 © Sławomir Wroński 2021...
