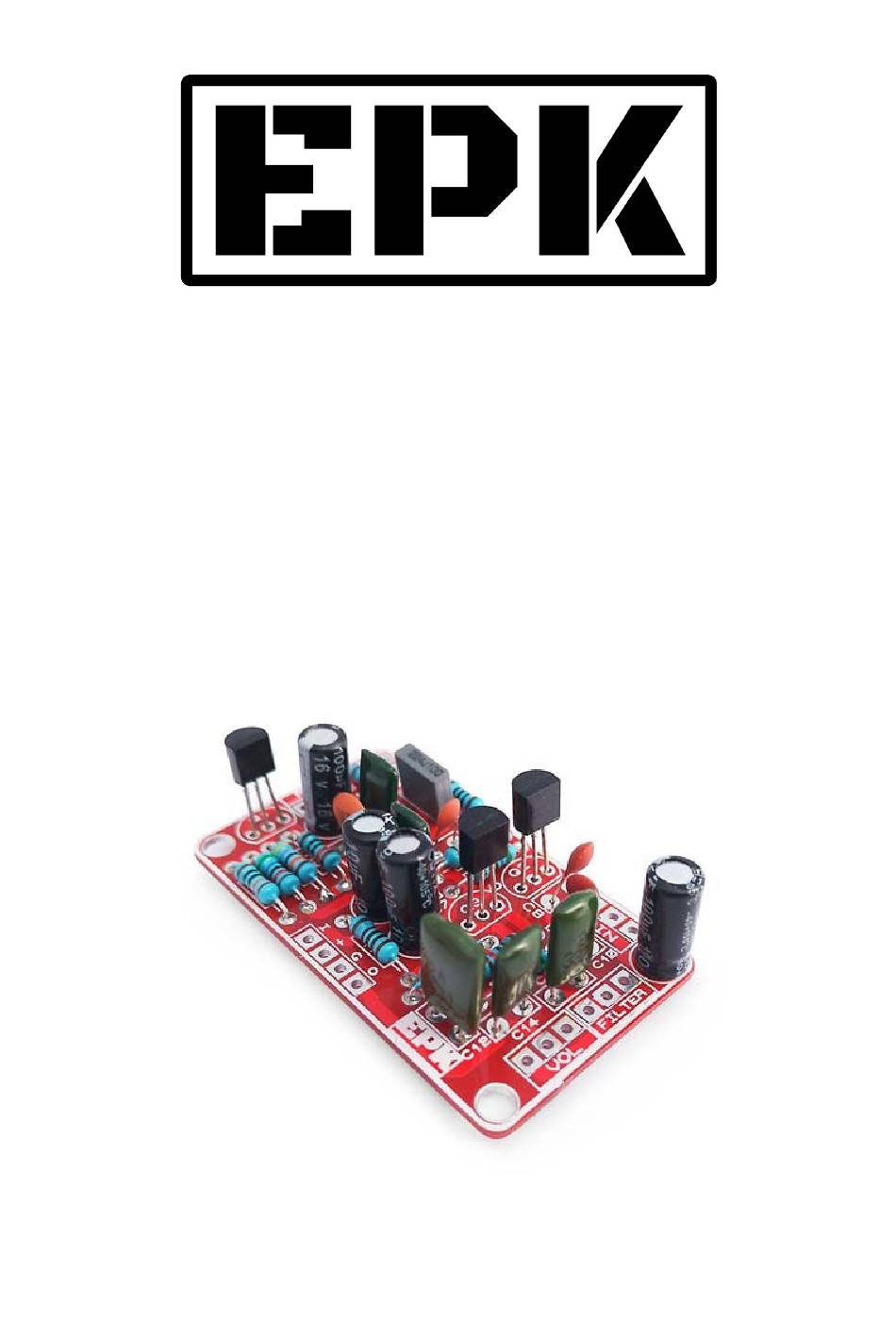

- Page 1 Moon Fuzz Kit Building Manual...
- Page 2 Effect Pedal Kits: Moon Fuzz A silicon fuzz with a dark and brooding character, the Moon Fuzz is designed around the fuzz tones you can hear on Pink Floyd's Dark Side of the Moon from 1973. But the Moon Fuzz is a versatile pedal that goes way beyond that: at low settings it works great as an overdrive pedal, something atypical with fuzz pedals, and at maximum settings it delivers some thick and sick fuzz tones.
- Page 3 BOM (1/2) Resistors (13) Capacitors (14) R1, R10, R11 10u (electrolytic) R2, R9 100k C2, C4, C11 100u (electrolytic) 470k 100p (ceramic) R4, R6, R8 5.6n R5, R12 220n 4.7n 2.7k C8, C10 220p (ceramic) 500p (ceramic) 3.3n 2.2n...
- Page 4 BOM (2/2) Diodes, Transistors and ICs Generic Parts and Potentiometers Q1, Q2, Q3 2N5089/2N5088 Battery clip DC Jack RLED 1k LED resistor LED Bezel 3PDT IN, OUT 6.35mm Jacks 100k Linear (B) Potentiometer Filter 100k Logarithmic (A) Potentiometer Sharp, Vol 1k Linear (B) Potentiometer Gain 2k Linear (B) Potentiometer...
-
Page 5: Component Placement
Component Placement... -
Page 6: Board Layouts
Board Layouts 3PDT PCB Effect PCB... - Page 7 Building Tips 1- Pay attention to the orientation of the 3PDT! In the following picture you can see how the 3PDT pins should be positioned (inserting the pins in the holes can be a bit tight to avoid movement while soldering): 2- For a proper soldering you just have to apply the right amount of solder wire.
- Page 8 Building Tips 5- Pay attention to the parts that have a polarity and make sure they are connected as in the component placement picture: - ICs (they have a small dot or indication that must fit the indication in the board - Electrolytic capacitors (longer pin is connected to the “+”...
- Page 9 Building Tips 6- With the kit we include plastic PCB supports with an adhesive bottom. You can use them to anchor the PCB to your enclosure for a better stability. Just insert the PCB support tip into the 3.5mm holes and remove the adhesive protective film.
- Page 10 Schematic...
