IWL252 (Cordless)
Quick Merchant Operator Guide

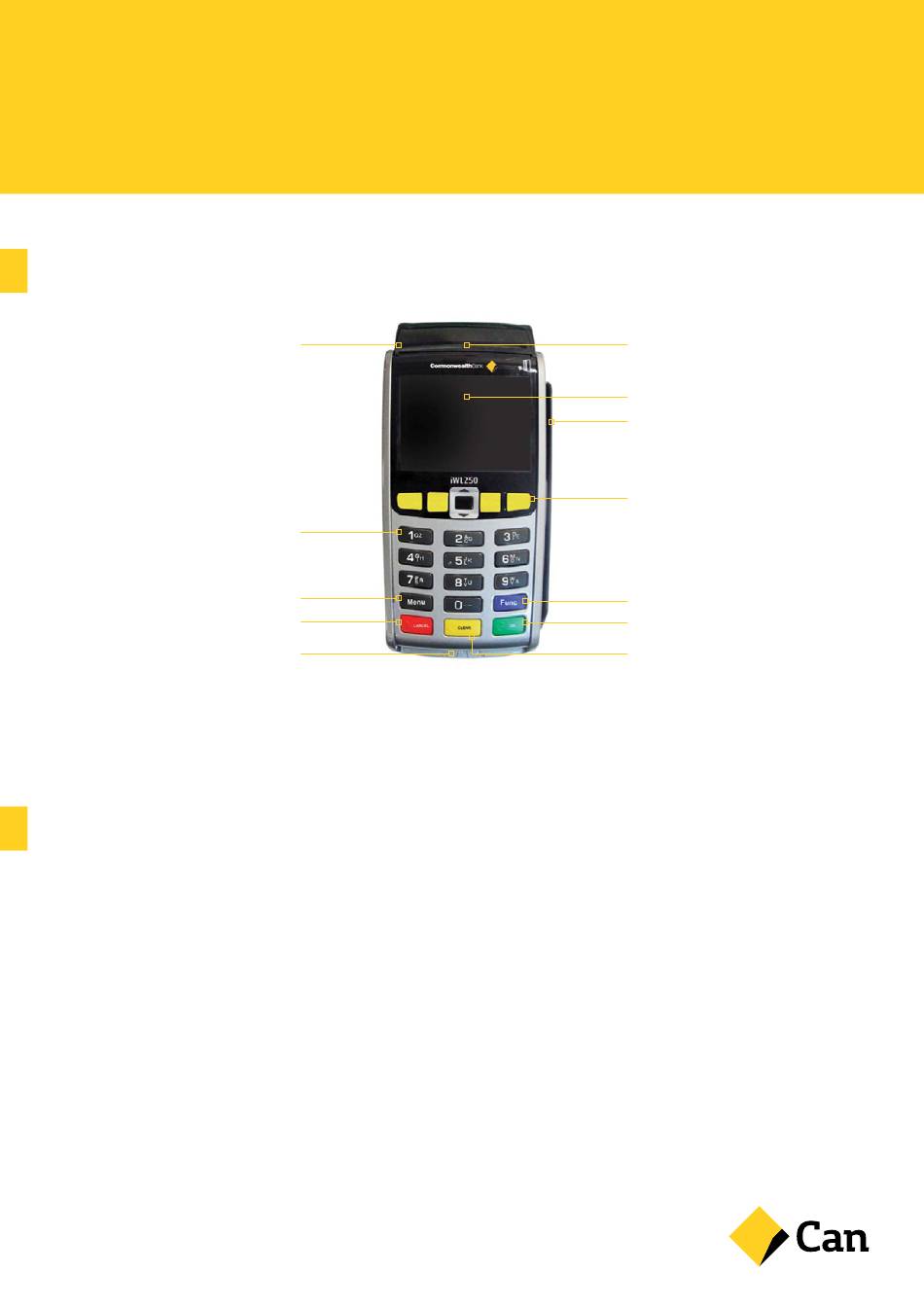

IWL252 (Bluetooth CORDLESS) Terminal Features
Printer paper door
Alphanumeric keys
Menu button
Cancel button
Smart card reader
Note: The first three yellow option buttons will be used as the Cheque, Savings and Credit keys. The fourth soft key
will not be used. During Idle state, only the [Menu] and [Func] buttons are operable. Pressing either button will open
the Main Functions Menu.
Key Functions
Power on/off
To POWER ON, simply place the terminal on its base
(with the base's external power cable plugged in) and
it will power up automatically. Alternatively, hold down
the [OK] key while the terminal is off the base with a
sufficiently charged battery. To REBOOT, hold down
both the [FUNC] and [CLEAR] keys on the terminal at
the same time. To POWER OFF, remove the terminal
from its base and hold down both the [FUNC] and
[CLEAR] keys at the same time.
Bluetooth logo
Integrated contactless reader
Magnetic strip reader
Yellow OPTION buttons
Function button
OK button
Clear button
Terminal Functions Menu
1.
Press the [MENU] key
2. Press [1] to enter the EFTPOS menu
3. Press [2] to enter the TERMINAL menu
4. Press [4] to enter the PCEFTPOS menu
Advertisement
Table of Contents
Related Manuals for CAN CommonwealthBank IWL252
Summary of Contents for CAN CommonwealthBank IWL252
- Page 1 IWL252 (Cordless) Quick Merchant Operator Guide IWL252 (Bluetooth CORDLESS) Terminal Features Printer paper door Bluetooth logo Integrated contactless reader Magnetic strip reader Yellow OPTION buttons Alphanumeric keys Menu button Function button Cancel button OK button Smart card reader Clear button Note: The first three yellow option buttons will be used as the Cheque, Savings and Credit keys.
- Page 2 Status Bar When the terminal is powered-on, the terminals’ Operating System provides data to display the Status Bar as follows, and consisting of the information as described below. Information Indicator Description System Date and Time This shows the current system time and date. Security Status This indicates that Ingetrust keys have been injected and that terminal data is secure.
- Page 3 Purchase – Swipe and EMV with PIN/ Purchase – Low Value Payment (LVP) Signature Note: This function is only available to clients that provide certain types of goods or services. The Initiate a purchase transaction on the POS merchant category codes allowed LVP are determined 2.
- Page 4 3. Settlement report is printed 3. Swipe, insert or tap the card Note: The terminal can also typically be set via the POS Note: Remainder of refund transaction flow is the same to automatically settle every day at a particular time.
- Page 5 If still no response, invoke SAF. DECLINED - S0 Modem error This can represent an error with an external modem, or if the MODEM ERROR terminal is set to fallback to internal modem and no phone line has been plugged in. Check communications link on base and wall plug.
- Page 6 User enables training mode on the POS and initiates a purchase transaction Note: Only financial transactions can be performed whilst in training mode. Training mode can also only be enabled when the terminal is in a ready state and when there are no reversal or advices pending.
