L 2003
Digital TV Antenna Kit
Operating Instructions

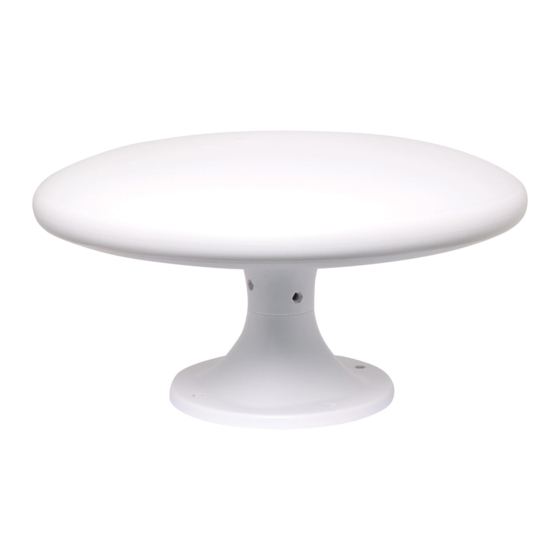

This outdoor antenna is a must have for your next caravan, RV or boat trip.
It provides crystal clear reception in mobile vehicles. Compatible with
Australian DVB-t terrestrial and DAB+/FM radio signals. The housing is
completely waterproof and constructed from UV resistant ASA plastic for
long term durability even in harsh Australian conditions. The antenna is
powered and is provided with a 5V USB adapter cable. Also included is
10m of coaxial F to F type cabling for easy installation.
Advertisement
Table of Contents
Summary of Contents for Dynalink L 2003
- Page 1 L 2003 Digital TV Antenna Kit Operating Instructions This outdoor antenna is a must have for your next caravan, RV or boat trip. It provides crystal clear reception in mobile vehicles. Compatible with Australian DVB-t terrestrial and DAB+/FM radio signals. The housing is completely waterproof and constructed from UV resistant ASA plastic for long term durability even in harsh Australian conditions.
- Page 2 L 2003 Digital TV Antenna Kit Specifications • Frequency Range: FM 88-108Mhz/ VHF174-230/UHF470-862Mhz • Gain: 32dBI • VSWR: max 2.0 • Polarization: 360° Omni-directional • Impedance: 75Ohm • Power supply: USB port(5V/500MA) • Cable Length: 10M 3C2V cable • Connector Type: F male •...
- Page 3 L 2003 Digital TV Antenna Kit Antenna Installation Step 2: Install the antenna to the antenna base. 1. Find the locating slot of the bracket. 1. Insert the screw into the hole position 2. Aim at the locating slots of the bracket of the antenna bracket.
- Page 4 L 2003 Digital TV Antenna Kit Note: For the best reception, please check the following tips 1. Please make sure your TV has a HDTV tuner. If not, we recommend you purchase a set top box. 2. Not all digital signals are high definition. Ensure your digital receiver is a HD receiver, otherwise no HD channels can be viewed.
