INSTALLATION AND OPERATING INSTRUCTIONS

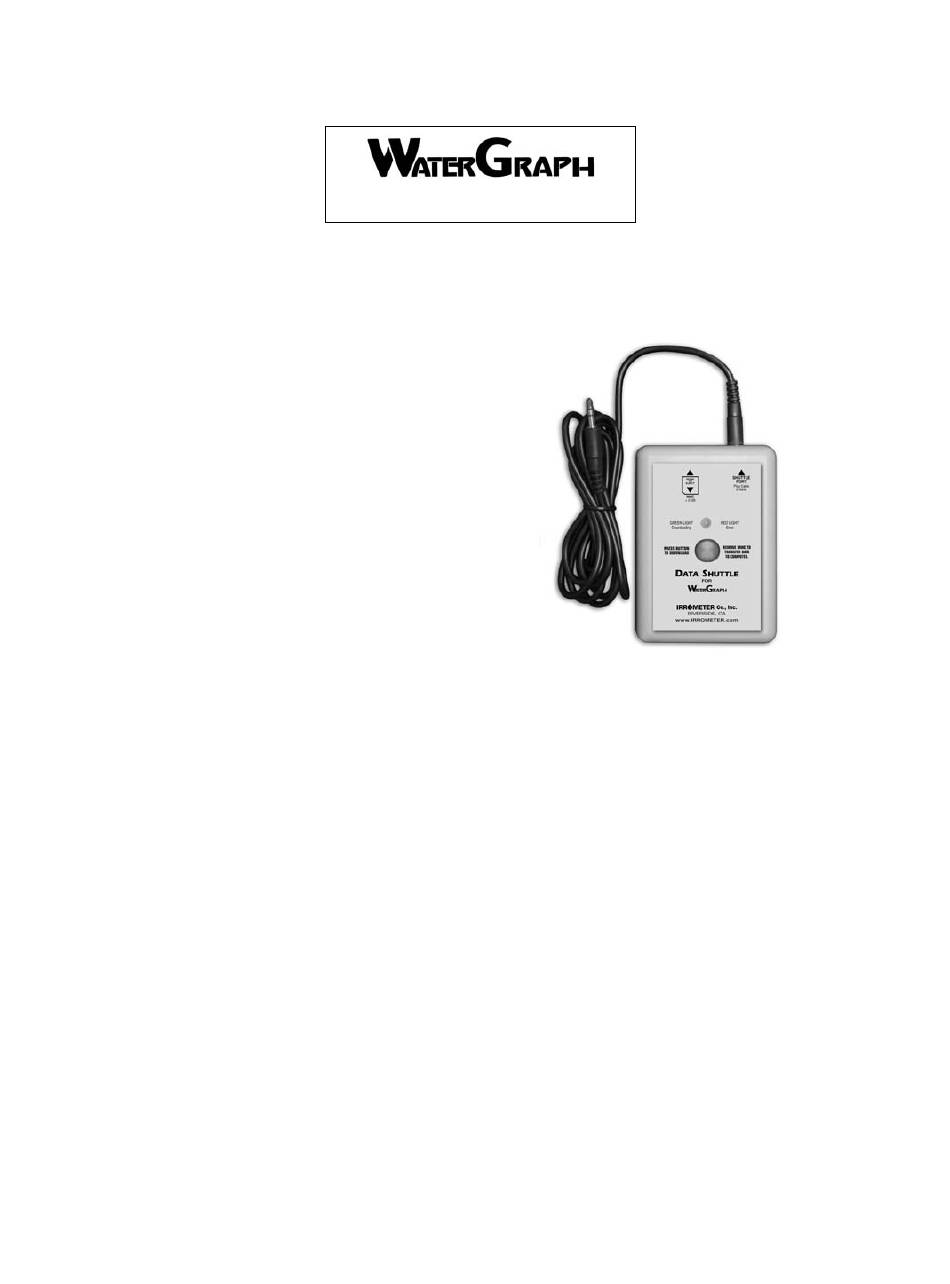

The WaterGraph Data Shuttle (900-DS) is a device that downloads collected data
from either 900M or 950R series WATERMARK Monitors and stores the
data on a multimedia card (MMC). The card can be removed
from the Data Shuttle, inserted in to a reading device
connected to a PC, then read by WaterGraph
software for analysis of the recorded data.
Operation
The Monitor should be asleep with no
information on the display before proceeding. If
necessary, wait 30 seconds for the unit to return
to sleep mode.
Downloading from the Monitor will not
delete data from the Monitor by default. If
deleting data is desired, an option can be set on
the device. Refer to the software instructions on
page 4 for information on setting this parameter.
To collect data from a Monitor:
1. Connect the supplied cable from the Data Shuttle to the shuttle port on the
Monitor.
2. Press the green button on the Data Shuttle. The green LED should light, and
begin flashing as the data is downloaded.
3. When the download is complete the LED will go out, followed by an audible beep.
4. Disconnect the cable. The Data Shuttle is now ready to download other
Monitors.
5. When all downloading is complete, use WaterGraph software to import
collected data.
The Data Shuttle is supplied with a multimedia card (MMC) and reading device.
To install the reading device, simply plug it in to an open USB port on your PC. The
PC will automatically detect and install the device. Once installed, cards installed in
the reader will be accessible as drives in "Computer" or "My Computer" in your
D
S
ATA
HUTTLE
1
Advertisement
Related Manuals for IRROMETER WaterGraph Data Shuttle
Summary of Contents for IRROMETER WaterGraph Data Shuttle
- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS HUTTLE The WaterGraph Data Shuttle (900-DS) is a device that downloads collected data from either 900M or 950R series WATERMARK Monitors and stores the data on a multimedia card (MMC). The card can be removed from the Data Shuttle, inserted in to a reading device connected to a PC, then read by WaterGraph software for analysis of the recorded data.
- Page 2 operating system. Refer to the software instructions below for information on using WaterGraph software to retrieve data from the card. Maintenance The Data Shuttle enclosure is not designed to protect the device from moisture or excessive dust. Keep the Data Shuttle in the supplied storage pouch or a clean and dry environment to ensure long life.
- Page 3 Open WaterGraph software. From the tools menu, select “Import IRROMETER Data Shuttle MMC”. Point the browse window to the drive letter assigned to the card, and then select the “Import files” button to read data off of the card. WaterGraph will read all of the files, convert them in to CSV files, and list each logger imported.
- Page 4 The settings are stored on the card as a file. If a new card is used, the setup must be applied again. WARRANTY: The IRROMETER COMPANY warrants its products against defective workmanship or materials under normal use for one year from date of purchase. Defective parts will be replaced at no charge for either labor or parts if returned to the manufacturer during the warranty period.
