Green Air Products THC-1 Quick Start Instructions

D e s c r i p t i o n
Recommended for indoor use only.

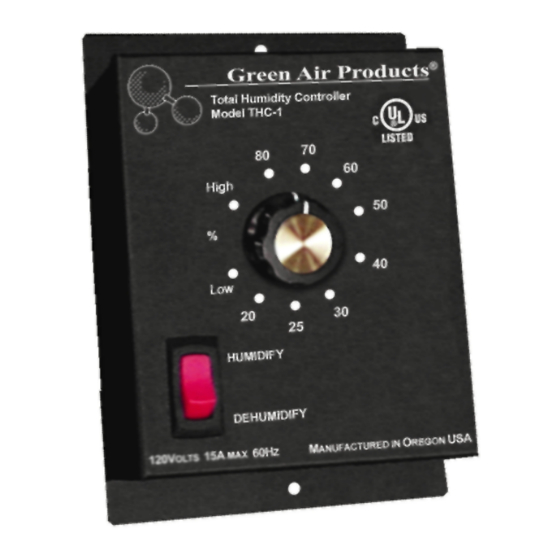

The THC-1 Total Humidity Controllers is specifically designed to manage
humidifying and dehumidifying equipment, including fans in an indoor
environment or zone. The THC-1 switches easily between humidify and
dehumidify control.
S a f e t y
• Mount unit on a wall or support structure using mounting parts provided.
• Do not operate unit when wet and keep unit out of direct sprays from foliar
applications or irrigation moisture.
• Unit not intended for outdoor use
• Do not service unit yourself. Breaking factory seal will void warranty.
• If using an extension power cable, ensure that the total ampere rating of
the equipment plugged in to the extension cable does not exceed the
ampere rating of the extension cable.
• Use a surge protector unit with a minimum of 850 joules.
P a r t s
1 - THC-1
1 - Quick Start Instructions
2 - #6x1" Pan Phillips-head Tapping Screw for mounting the unit
2 - E-Z Anchors for dry-wall mounting
S p e c i f i c a t i o n s
Humidity Range
Humidity Differential
Operating Temperature
Operating Humidity
Voltage Input
Voltage Output
Max Amperage Rating
Frequency
Dimensions: W x H x D
Power Cord
Five Year Limited Warranty
Green Air Products, Inc. guarantees that this equipment will perform as implied
for the purpose it is intended Green Air Products warrants the original
purchaser of this equipment against defects in mechanical parts and
workmanship for 5 years. At our option we will repair or replace defective
equipment. Warranty service is only performed at the factory or authorized
service center. Any usage contrary to specified application or alterations of
original construction will void warranty obligations.
information contact vour dealer or Green Air Products service department.
I n s t r u c t i o n s
L i s t
32-140°F (0-60°C)
Non-Condensing Environment (0-99% RH)
120 or 115 VAC
120 or 115 VAC
4in x 5-7/8 in x 2-1/4in (10cm x 15cm x 6cm)
6-ft, piggy-back 14 awg, SJTW rated
For further warranty
E n g l i s h
• C-UL-US-Listed; File # E234868
• Plug and play; easy to install & operate
• Change from humidify and dehumidify control with the flip of a switch
• Standard 5% differential
• Control exhaust fans, foggers, humidifiers and dehumidifiers
• Fully integratable with other atmospheric controllers and timers
• Anodized, black, aluminum chassis resists rusting, corrosion & scratching
• Red, illuminated flip switch
• 14 AWG, SJT rated, piggy-back power cord
• Operates on 120/115 VAC with 15 Amp switching capacity
• Manufactured in Oregon, USA
20-80%
5% RH
15 AMPS
60 Hz
Humidifying or Dehumidifying Humidistat
F e a t u r e s
Quick Start Instructions
Total Humidity Controller
THC-1
