- Page 1 FH325 25X 4K HD Zoom Camera with 3-Axis Gimbal...
-
Page 2: Table Of Contents
Content 3-Axis Gimbal Brief Introduction ……… 、Gimbal …………………………………… ………2 Target Tracking ………… ………………………………………………………2 2、 3、 G i m b a l D e s c r i p t i o n … … … … … … … … … … … … … … … … … … … … … 3 4、Packing List …………………………………………………………………………4 5、Loading Board Drawing………………………………………………………4 6、Install …………………………………………………………………………………5... -
Page 3: Gimbal Brief Introduction
PWM and serial command control. Target Tracking（Optional) FH325 also can be equipped with tracking module to realize the target tracking function, with which you will never lose the object. Just zoom in and put the object you want to track in the screen, move the cursor to the object and lock it via controller, and then the camera will track it automatically. -
Page 4: 3、 G I M B A L D E S C R I P T I O N
G i m b a l D e s c r i p t i o n [5]Yaw Axis Motor [1]Fixedpillars [6]Roll Axis Motor [2]Damper [7]Pitch Axis Motor [3]Upper Damper Board [8]HD Zoom Camera [4]Lower Damper Board Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: 4、Packing List
Packing List Gimbal*1 Screw Pack*1 M3*5mm half round inner six angle*12 Copper pillar*4 Damper*12 Loading Board Drawing Unit：mm... -
Page 6: 6、Install
Install Mechanical@electronic Characteristics Voltage 3S~4S IDDQ 330mA@12V Environment IDDT 450mA@12V -10~+50 666g Size Weight L144*W85*H134mm Working Characteristics Pitch：-90°~+90° Roll: -85°~+85° Yaw：-150°~+150° Precision：Pitch & Roll：± 0.02° Yaw± 0.03°... -
Page 7: 9、G I M B A L S I G N A L W I R E C O N N E C T I O N D I A G R A M
Gimbal Signal Wire Connection Diagram HDMI : micro HDMI OUTPUT 1080P 60fps default SD card: max 32G ,class10 FAT32 format HDMI : HDMI 输出，micro HDMI 接口 高清输出 1080P 60fps SD card: 最大支持256G 卡，class10 高速卡 格式化为FAT32 PWM in 5V output USER BOARD TTL 9600/8/1/N... - Page 8 S.bus/Rx:connect to Rx2 for track function. （ S.bus/Rx 用户不可用， 默认出厂与RX2连接，用做串口功能） Roll/ Tx:connect to Tx2 for track function. ( Roll/ Tx 用户不可用，默认 出厂与TX2连接，用做串口功能） Pitch:PWM in, pitch control (俯仰控制，PWM 输入） 1 pitch up 俯仰向上 2 pitch stop 俯仰停止 We have protocol for c o n t ro l t h e g i m ba l and camera, please contact our technical...
- Page 9 Mode:change the speed / home position (调整云台控制速度/一键回中） Position 1： lowest speed for pitch and yaw. (云台低速） Position 2: middle speed for pitch and yaw. (云台中速） Position 3: highest speed for pitch and yaw. the speed is continuously quickly from 1 to 3. （云台高速） Click = from 2 to 3 and back to 2 quickly.
- Page 10 Pic/Rec ： picture / start record， stop record （拍照，开始录像，停止录像） Switch 2 to 1 camera mode change.(从2 切 到 1 ， 拍 照 模 式/录 像模式切换） Picture mode:the number is quantity of SD card can storage; (拍照模式下，数字显示卡里剩余空间还能保存的照片数） Record mode:the time is recording time from start record. （录像模式下，时间显示录像进行的时间）...
-
Page 11: Camera Brief Introduction

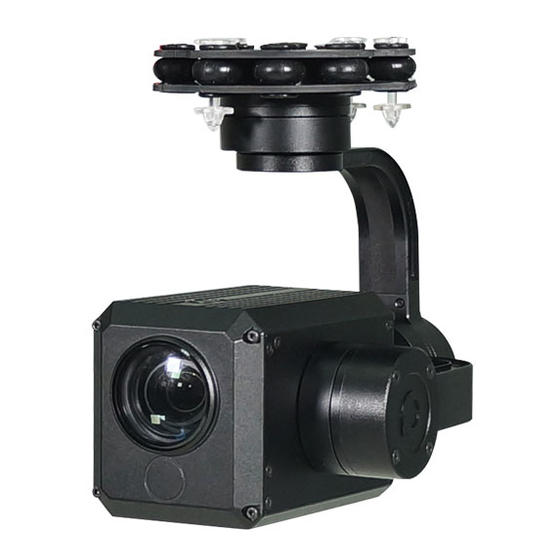

FH325 4K 25X Optical Zoom camera has 20.4 mega effective pixels, supports 25X optical autofocus, 4K@25FPS/1080P25 video record and HDMI 1080P/60fps output for HD video transmission back to the ground. And FH325 supports max 256G SD card. FH325 features small size, compact structure and light weight,only 666g. Camera Specification...
