Summary of Contents for Tactical TPS12-2.5DC

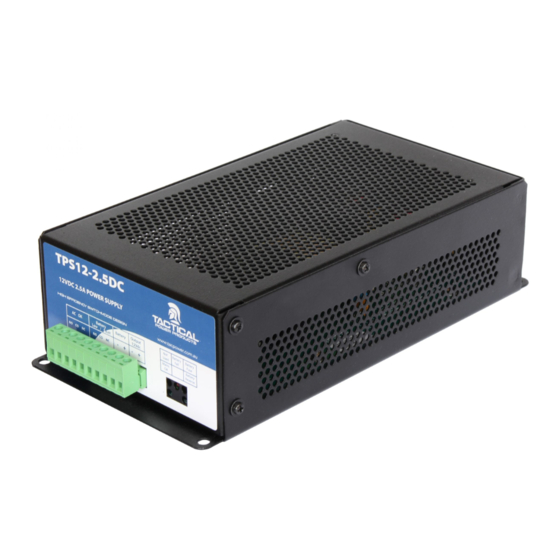

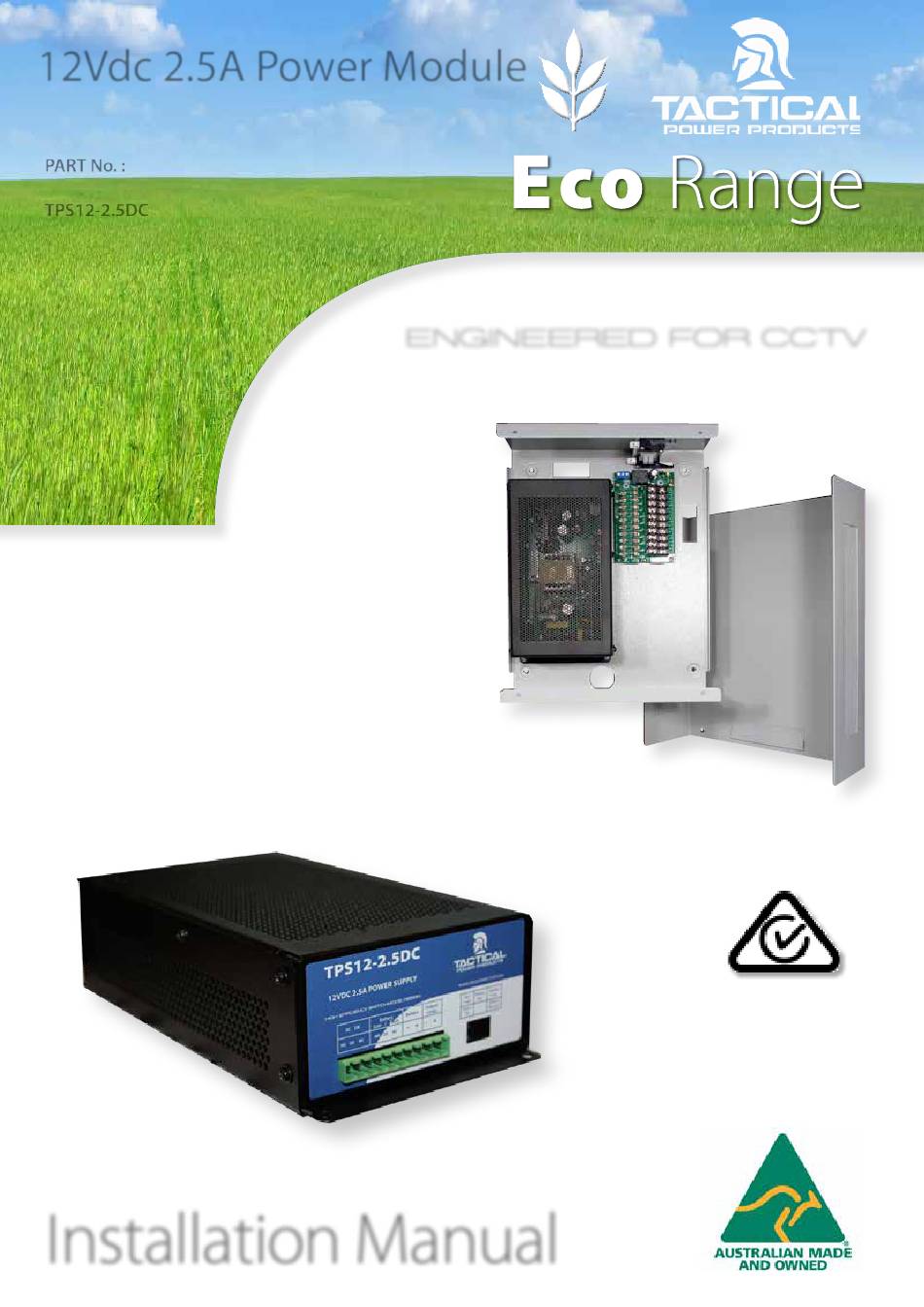

- Page 1 12Vdc 2.5A Power Module PART No. : TPS12-2.5DC Engineered for CCTV © 2018 The contents of this manual are copyright and may not be reproduced without written permission Tactical Power Products Pty Ltd. TPS12-2.5DC, Small Kit and PDM Shown Installation Manual...
- Page 2 NOTE: DO NOT connect loads which exceed the output rating of the supply (2.5A) Failure to observe this precaution can lead to output failure, requiring factory service. TPS12-2.5DC models are high performance, extremely low noise, Dual Channel Switch Mode power supplies offering 12.4Vdc at 2.5A continuous.
- Page 3 AYOUT Multi-Output Models TPS12-2.5DC Module Front Face NO CO NC NO CO NC Output Terminals ( Multi Output models only ) PDM Input ( Multi Output models only ) Individual Circuit Status LEDs ( Multi Output Models ) Individual Circuit Fuses ( Multi Output models only )
- Page 4 12Vdc 2.5A Series Specifications : ( In the interests of product improvement, Tactical reserves the right to change specifications without notice) 2.5DC+Small 2.5DC+Medium Kit + 2.5DC+Medium 2.5DC 2.5DC+Small Kit Kit+PDM5-250 PDM5-250 Kit_PDM5-250 Output Voltage 12.4 Vdc Output Current 2.5A Continuous...
