Summary of Contents for Jasmine JS-TA214J

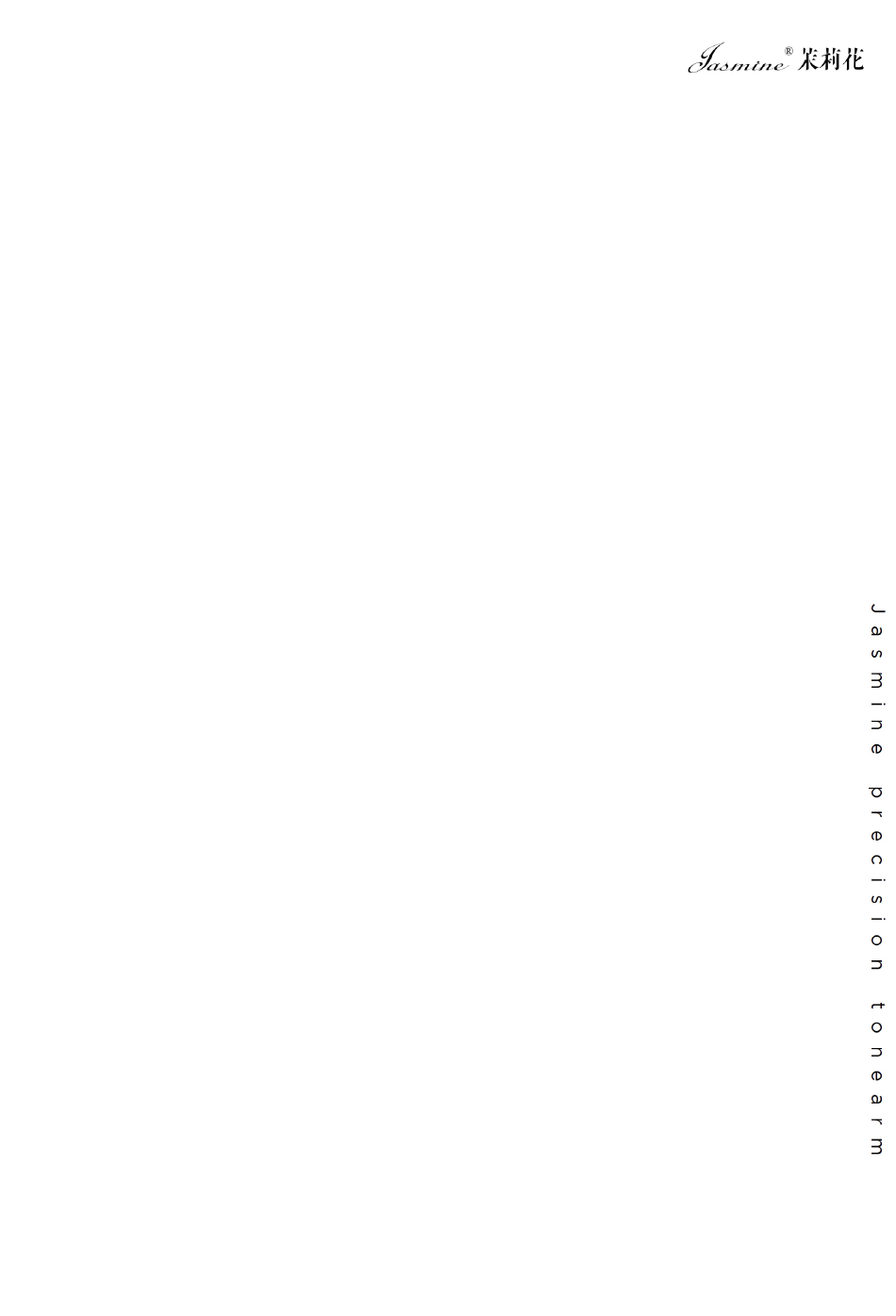

- Page 1 JS-TA214J 9’TONEARM USER S MANUAL ’...
-
Page 2: Important Precautions
Important Precautions Be sure to adjust the tracking force to less than 2.0g before setting the cartridge, to avoid damaging the stylus! When installing the tonearm, please handle it gently to avoid breaking the arm wire! - 2 -... -
Page 3: Table Of Contents
CONTENTS Important Precautions Introduction The brief of Jasmine Audio The design concept of Jasmine Audio Installation Unpacking Packing list Arm base installation Connection of tonearm cable Install a cartridge Side bias adjusting Lateral balance JS-TA214J Specification Warranty - 3 -... -
Page 4: Introduction
HIFI brands. Since 2008, we have independently designed and produced products with Jasmine brand. Jasmine has won many awards both in China and abroad due to its high reputation in the international market. Jasmine design and produce HIFI level audio products. It is our unswerving goal to bring wonderful music enjoyment to users. -
Page 5: Installation
Installation This section describes how to install the Jasmine JS-TA214J tonearm Unpacking After you receive the Jasmine JS-TA214J tonearm, please open the box to check whether the product appearance has obvious deformation and damage. If yes, please do not install the product, contact your seller or agent in time to inform the problems and ask for the after-sales service. -
Page 6: Arm Base Installation
1. Open holes for arm base Please open holes for JS-TA214J arm base at the 214mm mounting distance according to the size in the figure below, and install the arm base equipped with the arm. - Page 7 2. Setting mounting distance and VTA Tonearm cable connection Please refer to the following picture to insert the arm cable connector in place ! - 7 -...
-
Page 8: Install A Cartridge
Install a cartridge JS-TA214J tonearm is specially equipped with a protractor to set the cartridge. As shown as the figure below: Step 1: first, put the protractor into the central pillar of the turntable, and rotate the protractor until the line "pointing to the arm pivot"... -
Page 9: Side Bias Adjusting
the protractor surface, and the two sides are parallel to the vertical line of the null point matrix. Step 5: VTA adjustment. Upper or lower the height of the tonearm pillar to make the tonearm tube parallel to the protractor surface. Step 6: Calibrate the stylus tracking force again according to the specification of the cartridge！... - Page 10 - 10 -...
-
Page 11: Lateral Balance
Lateral Balance It is necessary to solve the problem of left-right balance for the bent arm tube. Therefore, a side balance weight is set at the counterweight position. As shown in the figure below: The left-right balance can only be roughly set, and by spinning in or out the side balance weight，the lateral balance torque can be adjusted to balance the torque generated by the cartridge weight on the other side . -
Page 12: Js-Ta214J Specification
JS-TA214J SPECIFICATION： Effective length： 230mm Pivot to Spindle distance： 214mm Overhang : 16mm Offset angle： 22.7 ° Peak Distortion： <= 0.8% Null points： 60.94mm / 116.58mm Cartridge weight : min. 5, max. 17 g Effective mass : 4 g （without headshell ) -
Page 13: Warranty
Warranty Card ● Thank you and congratulations on your purchase from Jasmine Audio ● We will confirm your purchase certificate and provide warranty service according to the warranty terms. Please keep this warranty card properly. ● Please show the warranty card when applying for maintenance service.
