Bastl Instruments Knit Rider Quick Start Manual

The Knit Rider expander adds clock OUT and reset IN / OUT
connections to the Knit Rider sequencer. It doesn't work
without Knit Rider Eurorack module.
instruction
)
Clock Out outputs a pulse each time a step on the
Knit Rider changes (1 step = 4 substeps). It also has
an indicatior LED.
)
The Reset socket acts as an output or input, depending
on whether the Knit Rider is master or slave. In master
mode, the reset outputs a pulse each time you press
the start stop button. In slave mode, it acts as an input.
When it detects a pulse, the sequencer goes to its first
step (it will play the first step with the first incoming
clock pulse).
)
additional feature of this expander is a 3-way passive
multiple with clock inverter. The lower 3 connectors
are simple passive multiples.
)
The uppermost connector outputs an inverted version
of the signal in the passive multiple. The inversion is
done with a 2.5V threshold (0V or lower becomes 5V
and 5V and higher becomes 0V).
www.bastl-instruments.com
)

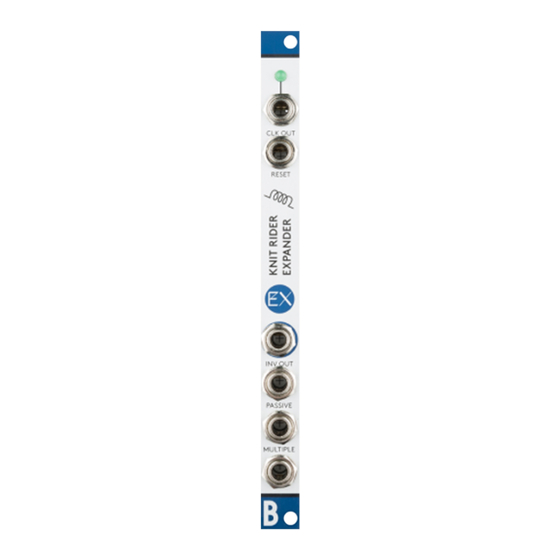

CLK OUT
)
RESET
)
INV OUT
PASSIVE
)
MULTIPLE
