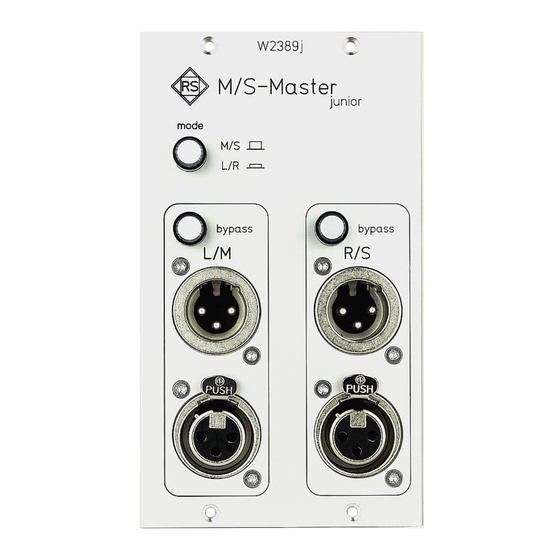

Summary of Contents for roger schult M/S-Master junior W2389j (f)
- Page 1 M/S-Master junior W2389j (f) Operating Manual Quick Guide W2389j (f) M/S-Master junior Operating Manual for api ® 500 System Version 01.2021 roger schult D 50374 Erftstadt Peter-May-Str. 104 -1 -...
- Page 2 Table of Contents Page Table of Contents Introduction and important safety notices Product Details Controls and operation Application examples for the W2389j (f) M/S-Master junior Installation Installing the W2389f module in an api ® 500 system* Recycling Specifications Box contents and compatibility Manufacturer contact and support *api ®...
- Page 3 Thank you for purchasing our product! Our W2389f M/S Master junior module for the api®500 system was built to ensure and exceed the highest manufacturing standards possible. We are adhering to all European and national guidelines currently in effect. The EMV compatibility has been certified and the appropriate records are available in our office.
- Page 4 Function, controls and their effect M/S technology - The term M/S technology means that a stereo signal is divided into its mid and side signal components. The mid signal (M) contains all signals that are identical on the left and right side. The side signal (S) contains the non-identical signal components.
- Page 5 Installation of the W2389j (f) M/S-Master junior in an api ® 500 system Electric potential differences and electrostatic discharges (ESD) can destroy your api ® 500 system and the W2389j module. Please ensure to discharge any potential electrostatic charges by touching a plumbing pipe, heating pipe or any other piece of metal connected to earth before installing the W2389j module.
-
Page 6: Technical Data
Technical Data Tentative spec sheet, 01/2021 Input (electronically balanced) Reference input level +6 dBu Maximum input level +14 dBu Input impedance 10 kOhm Output (electronically balanced) Reference output level +6 dBu Maximum output level +14 dBu / (0.05% THD+N) Output impedance 55 Ohm Gain at linear setting 0 dB at 1 kHz (-0.03 dB) - Page 7 - Quick start guide in English Compatibility The compatibility certification records for this product are available upon request from the manufacturer. As all Roger Schult products, the W2389j is hand-crafted and precision-engineered in Germany. roger schult german audio lab D 50374 Erftstadt Peter-May-Strasse 104 www.rogerschult.com...
- Page 8 Manufacturer roger schult german audio lab Peter-May-Str.104 D 50374 Erftstadt www.rogerschult.com info@rogerschult.com W2389j (f) M/S-Master junior -8 -...
