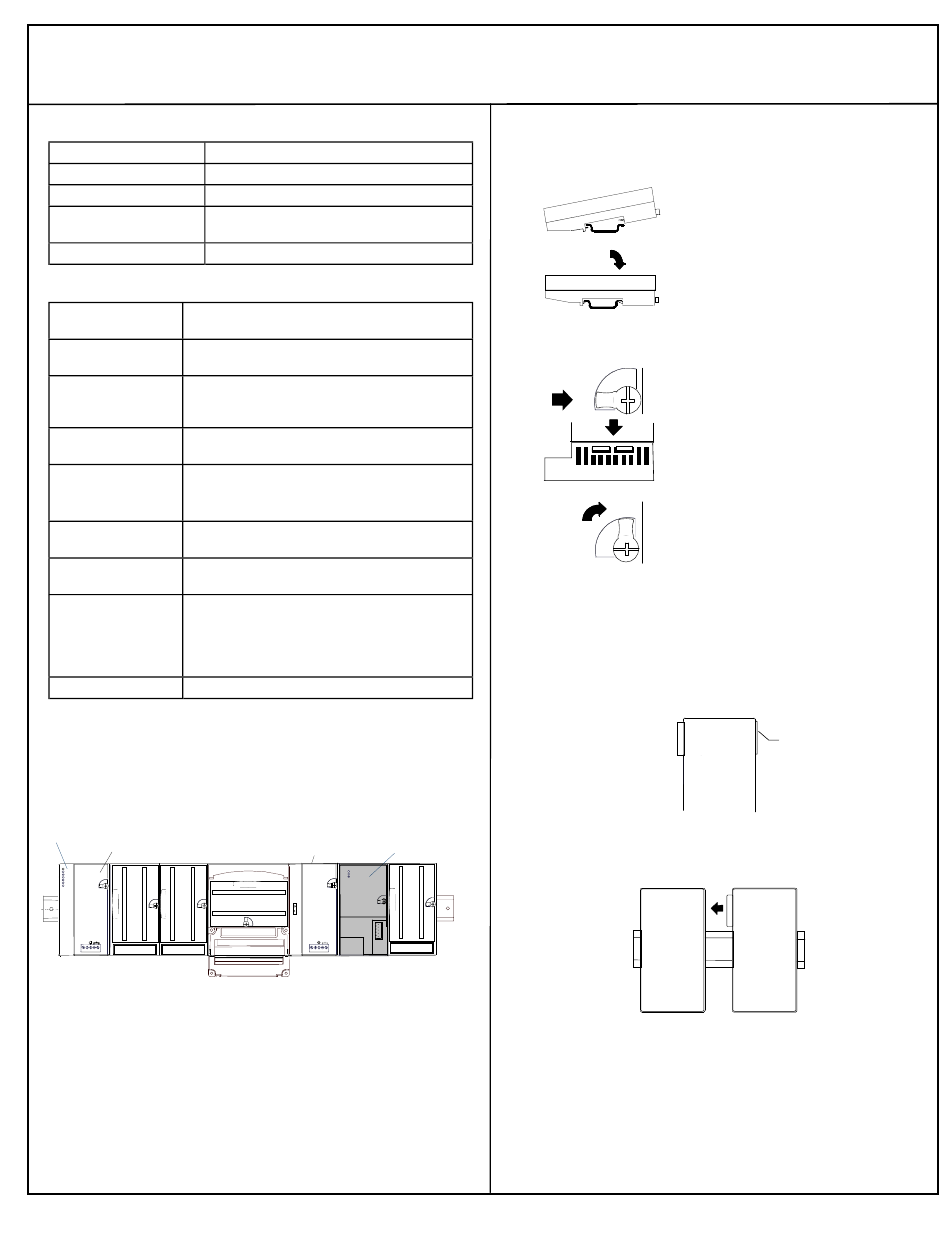

Product Description ______________________________
Revision Letter: BA
Firmware version: 1.10
Firmware upgrades: None
DeviceNet Certificate available upon request.
Certification:
Product Name: DeviceNet Network Control Module (NCM)
Specifications ___________________________________
Operating Modes: Master only, Slave only, Combined
Master/Slave
Slaves Supported: Up to 40 slave devices may be configured for
the Master mode
Configuration: Configured as a Generic Communication
Module with contiguous %I, %Q, %AI, and
%AQ references.
Status Data: Slave presence bit per each slave device, 64
bits total.
DeviceNet Features: Slave only - Group 2 Only Server or UCMM
Capable (COMMREQ selectable)
Master or Master/Slave - UCMM Capable
DeviceNet network 0 to 63. COMMREQ selectable.
address:
DeviceNet network 125K, 250K, 500K baud. COMMREQ
data rate: selectable.
Indicators (3): OK LED to indicate the status of the NCM after
powerup. Mod LED to indicate the status of the
NCM module. Net LED to indicate
communication status on the DeviceNet
network.
Power Consumption: 140mA at 5V, 10mA at 3.3V
The DeviceNet Network Control Module is a DeviceNet master/slave
module that provides an interface to the a DeviceNet network. One
or more NCMs may be installed at any location in the PLC.
PLC CPU
power supply
Preinstallation Check _____________________________
Carefully inspect all shipping containers for damage. If any
equipment is damaged, notify the delivery service immediately. Save
the damaged shipping container for inspection by the delivery
service. After unpacking the equipment, record all serial numbers.
Save the shipping containers and packing material in case it is
necessary to transport or ship any part of the system.
DeviceNet Network Master/Slave
DeviceNet Network
Optional booster
Control Module
power supply
Quick Start Guide ________________________________
1. Install the Communications Carrier on the DIN Rail by simply
clicking it into place.
2. Install the Module on the Communications Carrier.
3. Connect the communications bus to the connector on the front
of the Network Control Module. (Refer to the heading Bus
Installation Guidelines for detailed bus installation instructions.)
4. Remove the connector cover on the right-hand side of the
Communications Carrier. Do not discard this cover; you will
need to install it on the last carrier. It protects the connector pins
from damage and ESD during handling and use.
Install additional modules by mounting modules on their
5.
carriers and sliding them along the DIN rail to fully engage the
connectors in the sides of the carriers.
1
Note: Connecting carriers must be
installed on the same section of
35mm x 7.5mm DIN rail.
The DIN rail must have a conductive
(unpainted) finish for proper
grounding.
The latch on the module must be in the
unlocked position.
Align the connectors and the latch post
and press the NCM down until the two
tabs on the bottom of the NCM click
into place.
Turn the latch to the locked position to
secure the NCM to the top of the
carrier.
Connector
