ITEM # GSSIPRO / GSSICARB / GSSI

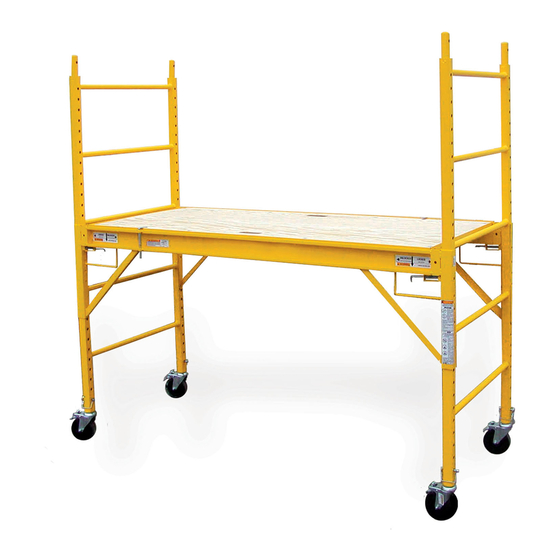

MULTI-USE 6 FT BAKER-STYLE INTERIOR/EXTERIOR SCAFFOLDING
SAFETY, ASSEMBLY & OPERATING INSTRUCTIONS
Features non-slip walkboard
1,000 LB MAX WEIGHT CAPACITY WORKERS & MATERIALS
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT
This manual provides important information on proper operation and maintenance. Every effort has been made to
ensure the accuracy of this manual. We reserve the right to change this product at any time without prior notice. IF
THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE, DO NOT USE THIS PRODUCT!
QUESTIONS? PROBLEMS? CALL CUSTOMER SERVICE AT 1-636-532-9888
If you need instructions on how to use this item properly, experience a problem, or need parts, call our customer
service department Monday-Friday, 8 AM - 4 PM Central Time. A copy of the sales receipt is required.
NOTE: This scaffold can be used indoors or outdoors on an even, flat surface. Do not store the scaffold
outdoors, as the wood platform is not water resistant. This item is not compatible with stem jacks.
WARNING: METAL CONDUCTS ELECTRICITY
Do not use this equipment where contact may be made with power lines or other live electrical circuits.
W A R N I N G : D O N O T O V E R L O A D T H E M A X I M U M W E I G H T C A P A C I T Y
This unit can support a maximum weight capacity of 1,000 lbs. The max load capacity decreases when stacking
units: One unit high = 1,000 lb, Two units high with guardrails = 938 lb, Three units high with guardrails = 831 lb.
GSSICARB is TSCA Title VI Compliant
ANSI
OSHA
MEETS CODE A10.8
Advertisement
Summary of Contents for Pro Series GSSIPRO
- Page 1 ITEM # GSSIPRO / GSSICARB / GSSI MULTI-USE 6 FT BAKER-STYLE INTERIOR/EXTERIOR SCAFFOLDING SAFETY, ASSEMBLY & OPERATING INSTRUCTIONS Features non-slip walkboard GSSICARB is TSCA Title VI Compliant 1,000 LB MAX WEIGHT CAPACITY WORKERS & MATERIALS ANSI OSHA MEETS CODE A10.8 READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT This manual provides important information on proper operation and maintenance.
-
Page 2: Safety Instructions
This unit can support a maximum weight capacity of 1,000 lbs. ITEM # GSSI MULTI-USE 6 FT BAKER-STYLE INTERIOR/EXTERIOR SCAFFOLDING PAGE 2 SAFETY INSTRUCTIONS WARNING: DO NOT OVERLOAD THE MAXIMUM WEIGHT CAPACITY 1,000 LB The max load capacity decreases when stacking units: One unit high = 1,000 lb, MAX WEIGHT CAPACITY Two units high with guardrails = 938 lb. - Page 3 ITEM # GSSI MULTI-USE 6 FT BAKER-STYLE INTERIOR/EXTERIOR SCAFFOLDING PAGE 3 ASSEMBLY INSTRUCTIONS Locate and identify all individual parts. Follow the diagrams for proper assembly. Item Part Name Frame Side Brace Platform Caster Lock Pin Connector Pin G Platform Locks are built into Side Brace If you need instructions on how to use this item properly, experience a problem, or need parts, call customer service at 636-532-9888...
-
Page 4: Operating Preparation
ITEM # GSSI MULTI-USE 6 FT BAKER-STYLE INTERIOR/EXTERIOR SCAFFOLDING PAGE 4 ● Be certain the casters are locked to the side frames OPERATING PREPARATION using connector pins. ● Follow assembly instructions to be certain the ● Be certain all four casters are in LOCK position scaffolding is properly set up. - Page 5 CODE OF SAFE PRACTICES FOR FRAME SCAFFOLDS, SYSTEM SCAFFOLDS, TUBE AND CLAMP SCAFFOLDS & ROLLING SCAFFOLDS DEVELOPED FOR INDUSTRY BY SCAFFOLD INDUSTRY ASSOCIATION, INC. It shall be the responsibility of all users to read and comply with the following common sense guidelines which are designed to promote safety in the erecting, dismantling and use of Scaffolds.
- Page 6 BRACKETS AND CANTILEVERED PLATFORMS Brackets for SYSTEM SCAFFOLDS shall be installed and used in accordance with manufacturer’s recommendations. Brackets for FRAME SCAFFOLDS shall be seated correctly with side bracket parallel to the frames and end brackets at 90 degrees to the frames. Brackets shall not be bent or twisted from normal position.
- Page 7 ARTÍCULO N° GSSI ANDAMIO MULTIUSOS ESTILO BAKER DE 6 PIES (1,82 m) PARA INTERIORES/EXTERIORES INSTRUCCIONES DE SEGURIDAD, ENSAMBLAJE Y OPERACIÓN Tabla de paso antideslizante GSSICARB cumple ley TSCA Título VI 1000 LB/453,6 KG CAPACIDAD DE PESO MÁX EMPLEADOS Y MATERIALES ANSI CUMPLE CON CUMPLE CON...
-
Page 8: Instrucciones De Seguridad
ARTÍCULO N° GSSI - ANDAMIO MULTIUSOS ESTILO BAKER DE 6 PIES (1,82 m) PARA INTERIORES/EXTERIORES PÁGINA 2 INSTRUCCIONES DE SEGURIDAD ADVERTENCIA: NO EXCEDA LA CAPACIDAD DE PESO MÁXIMA La capacidad de carga máxima se reduce cuando las unidades están apiladas: Altura de una 1000 LB/453,6 KG CAPACIDAD DE PESO MÁX unidad = 1000 lb/453,6 kg, Altura de dos unidades con barandillas = 938 lb/425,4 kg, Altura... - Page 9 ARTÍCULO N° GSSI - ANDAMIO MULTIUSOS ESTILO BAKER DE 6 PIES (1,82 m) PARA INTERIORES/EXTERIORES PÁGINA 3 INSTRUCCIONES DE MONTAJE Encuentre e identifique todas las piezas individuales. Siga los diagramas para realizar el ensamblaje correctamente. Elemento Nombre de la pieza Cant.
-
Page 10: Preparación Para La Operación
ARTÍCULO N° GSSI - ANDAMIO MULTIUSOS ESTILO BAKER DE 6 PIES (1,82 m) PARA INTERIORES/EXTERIORES PÁGINA 4 ● Asegúrese de que las ruedas estén trabadas en los PREPARACIÓN PARA LA OPERACIÓN marcos laterales con los pines conectores. ● Siga las instrucciones de ensamblaje para ●... - Page 11 COLOQUE ESTAS GUIAS DE SEGURIDAD DE ANDAMIAJE en un lugar visible, y asegúrese de que todas las personas que montan, desmontan o utilizan andamiaje las conozcan, y también que las usen en las reuniones de seguridad en el lugar de trabajo. CODIGO DE PRACTICAS SEGURAS PARA ANDAMIOS RETICULADOS, ANDAMIOS DE SISTEMA, ANDAMIOS TUBULARES Y ANDAMIOS RODANTES DESARROLLADO PARA LA INDUSTRIA POR EL SCAFFOLDING, SHORING &...
- Page 12 H. DEBE PROVEERSE EL ACCESO A TODAS LAS PLATAFORMAS. No se trepe sobre refuerzos cruzados o diagonales. I. SUMINISTRE UN SISTEMA DE VALLAS DE SEGURIDAD, PROTECCION CONTRA CAIDAS Y ELEVACIONES DEL SUELO, ALLI DONDE LO REQUIERA EL CODIGO QUE PREVALECE. J.
