Core ANT100TCR User Manual

Core ANT100TCR User Manual

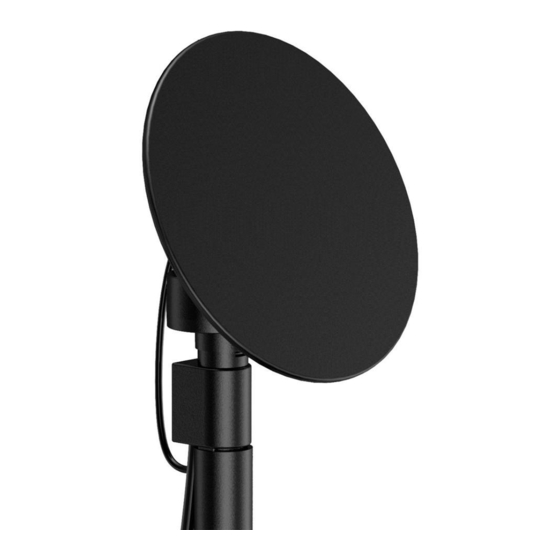

100-mile range outdoor/attic amplified tv antenna

Advertisement

Quick Links

ANT100TCR
User Manual
100-Mile Range Outdoor/Attic Amplified TV Antenna

Advertisement

loading
Need help?

Need help?

Do you have a question about the ANT100TCR and is the answer not in the manual?

Questions and answers

Summary of Contents for Core ANT100TCR

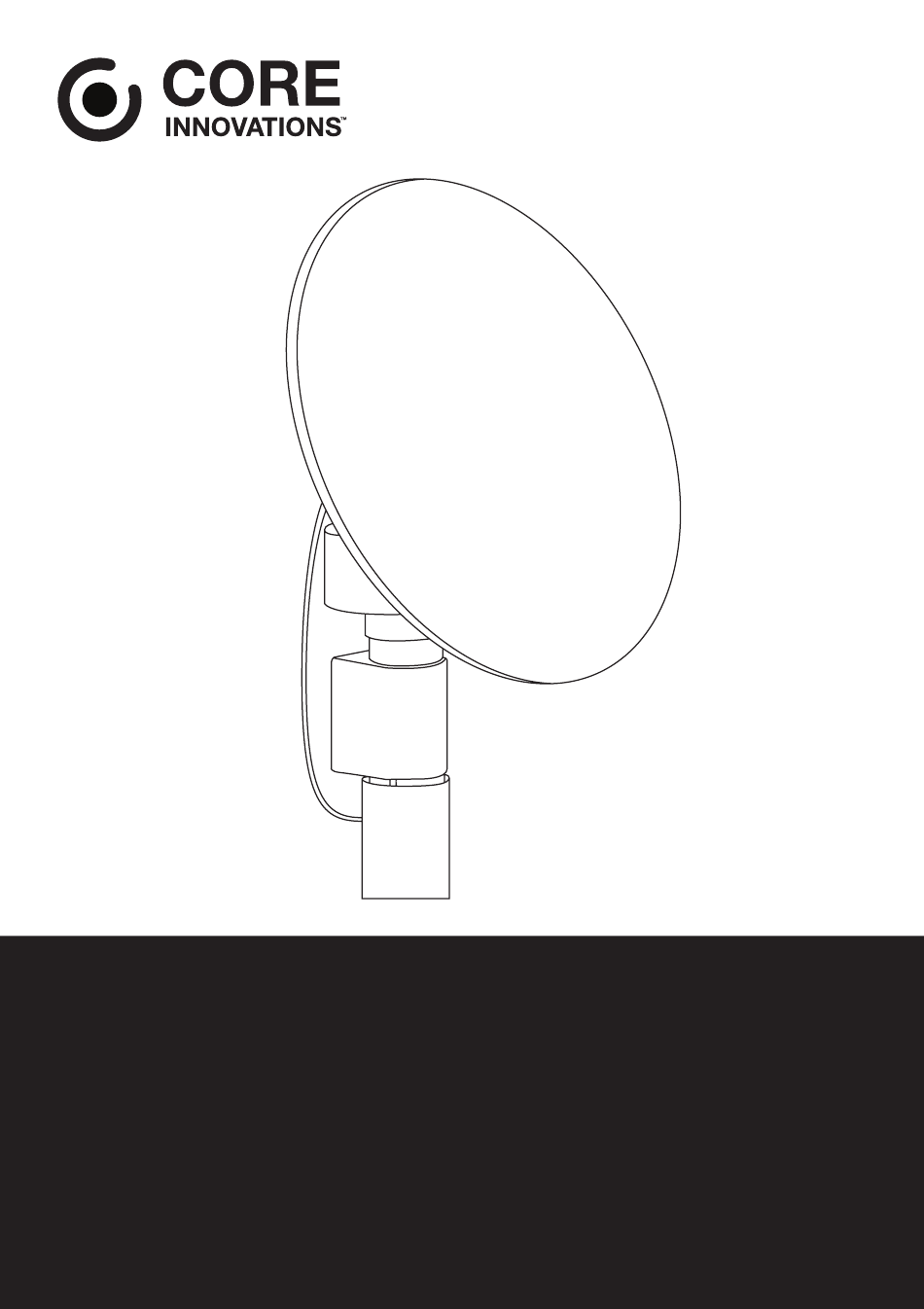

  • Page 1 ANT100TCR User Manual 100-Mile Range Outdoor/Attic Amplified TV Antenna...
  • Page 2 Safety Precautions Before using this antenna, please read these instructions carefully. Store this manual in a safe place for future reference. Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact Customer Service.
  • Page 3 I. Included Parts and Hardware 1. Main Unit 8. Power Adapter 2. Motor 9. Bracket 3. Carriage Bolt ( ” x 1 ”) 10. J Pole 4. Wing Nut ( ”) 11. Expansion Screws x 4 5. Power Supply 12. Bolts & Nuts x 2 6.
  • Page 4 II. Power Supply Infrared LED Indicators Receiver Indicators Power Rotation Red Light Power on On/Off Switch Green Light Antenna is rotating Something is wrong with Yellow Light the power supply. Check cable connection. AC Power Input III. System Connection Digital Converter Box (sold separately - for analog TVs only) Antenna Coaxial Cable...
  • Page 5 IV. Key Considerations for Your Installation Site • Be sure that installation is in accordance with all local, city and state electrical and building codes. • Understand where broadcast towers are located in your area. Visit www.antennapoint.com or www.antennaweb.org and enter your zip code to identify the channels you can expect to receive.
  • Page 6 Step 1: Connect the Main Antenna and Motor Align the motor with the main unit and secure them in place with the carriage bolt wing nut Connect the coaxial signal line from the motor to the main unit and tighten the fastener. Step 2: Attach Your Antenna to the J-Pole Place your antenna &...
  • Page 7 Step 4: Scan for Channels To perform a TV channel scan: • Set the tuner mode to “Antenna” or “Air” on your TV’s setup menu. • Set your TV to scan for channels. This may be listed as auto-program, auto-scan, channel search or channel scan. Move and rotate your antenna, and note which locations receive the most channels and best channel reception.
  • Page 8 Step 5: Mount Your Antenna Make sure to test your antenna in multiple locations to find the best reception. Placing your antenna higher up or in a position that is angled toward the broadcast tower may result in better reception. Once you find the location that receives the most channels and best channel reception, you can mount the pole and antenna.
  • Page 9 Specifications This antenna can support two TVs at the same time. Simply connect an additional coaxial cable between the power supply box output connector and your second TV. Antenna Specifications: • 25’ coaxial cable • Easy install and setup • Remote control included •...
  • Page 10 Troubleshooting I am not getting any channels, or channels are missing. Keep your antenna away from sources of interference, including air conditioners, hair dryers and microwave ovens. Rotate your antenna and re-run a channel scan on your TV. Refer to your TV’s user manual for more information.
  • Page 11 Troubleshooting Does my antenna work with any HDTV? Your antenna works with any HDTV or device that has an ATSC tuner. Any TV manufactured after March 1, 2007 is required by US government to have an ATSC tuner. If your TV menu has an option to scan for digital channels, your TV has an ATSC tuner.
  • Page 12 You may also reach a Core Innovations customer service representative by calling 1-833-909-CORE (1-833-909-2673). We are available Monday - Friday, 9am - 5pm PST, except major holidays. Core Innovations strongly urges customers to email their inquiry prior to calling, as this will enable us to better assist you.
  • Page 13: Warranty Information

    Warranty Information Limited Warranty Core Innovations (the “Company”) warrants the product purchased and contained in this package (the “Product”) against defects in material or workmanship for 90 Days (Parts & Labor) and 1 Year (Limited). In order for the Company to honor this limited warranty, you must present a valid proof of purchase (i.e.
  • Page 14 Appendix Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 15 Core Innovations intends to make this manual accurate and complete. However, Core Innovations makes no claim that the information contained herein covers all details and conditions. The information in this document is subject to change without notice at any time.
