SainSmart FC-6S Instruction Manual

User Manual
Fiber Holder
Main Body
Blade
◎ Operation Procedure of Products
Open the body cover, and put
1.
the stripped fiber on the v-groove.
And make sure that the cleave
length is set as per operators'
intended length.
3. Close the cover and make
sure that the end of the fiber
is sticking out of the rubber
pad exactly in a straight line.
HIGH PRECISION OPTICAL FIBER CLEAVER
Instruction Manual
Usage and Safety Regulation
◆
☉ R ead this description, before using Cleaver and keep description with
Cleaver .
☉ U sing Cleaver, please be cautious of the following particulars and prevent
your body and property from harm and use carefully and usefully.
☉ K eep Cleaver away from water.
☉ P lace Cleaver away from humid and dusty place.
☉ H igh temperature causes transforming, so keep it in normal temperature.
☉ B e careful with serious impact on it.
☉ B e sure that the stripped fiber length should be at least 12mm or longer.
☉
C lean the Cutting Edge Rubber Pad regularly with alcohol. Try not to use
acetone or corrosive solvent when you clean the rubber pad.
☉
K eep the fiber holder clean to ensure no dust in it

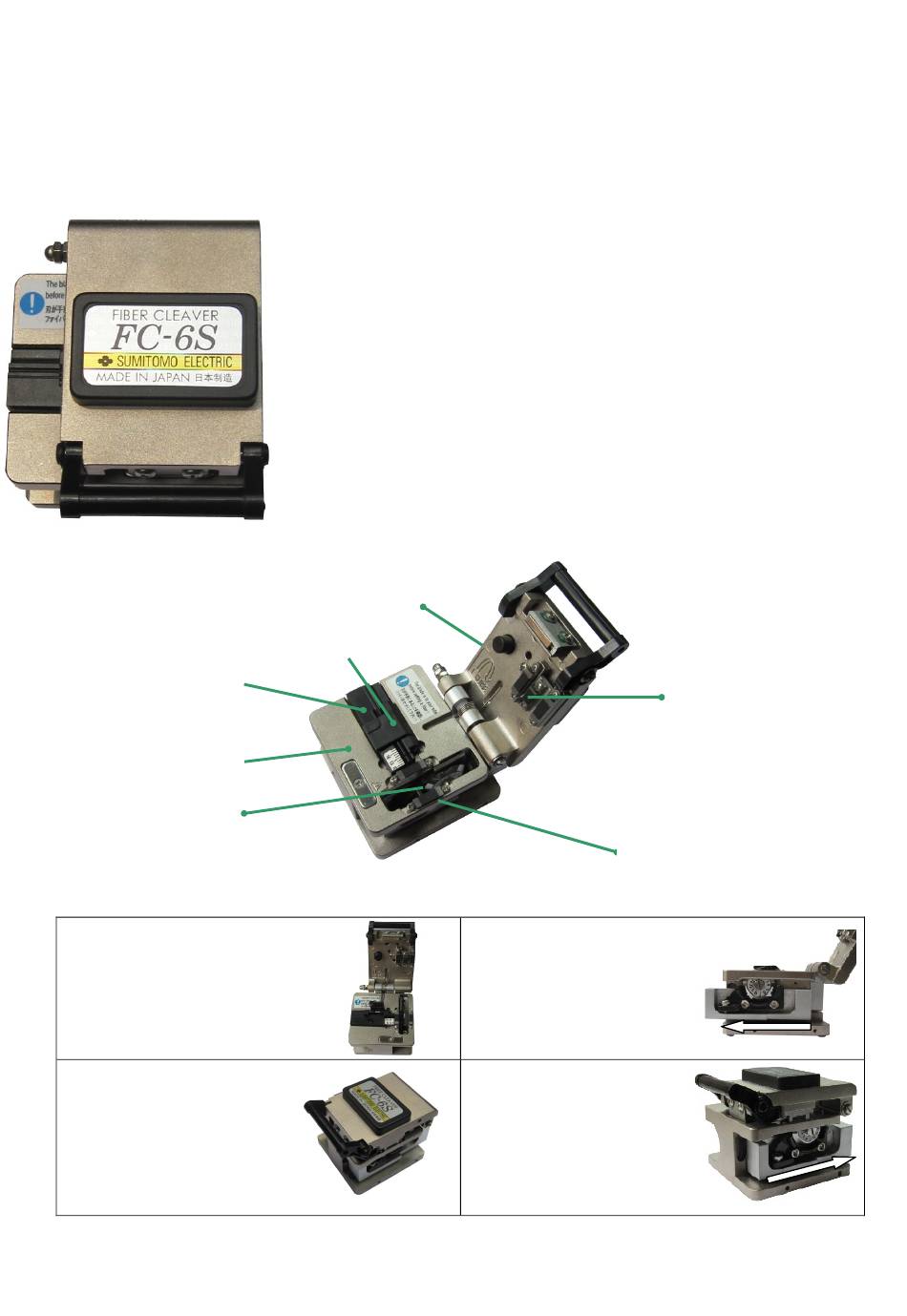

Cover
Pressing Board
FC-6S
Push the Blade Carriage to
2.
the back, then close the
pressing board to fix the
fiber.
4. Push the blade carriage to
the front until it stops.
.
Cutting Edge
Rubber Pad
Blade Carriage
