RigSwitch
Introduction
Revisions
Warnings & Safety
Installation
Connecting the mains
Connecting channel outputs
Control
DMX Control
DALI Control
iCANnet Control
Mixing Control Methods
Alarm Input
Mechanical
Support

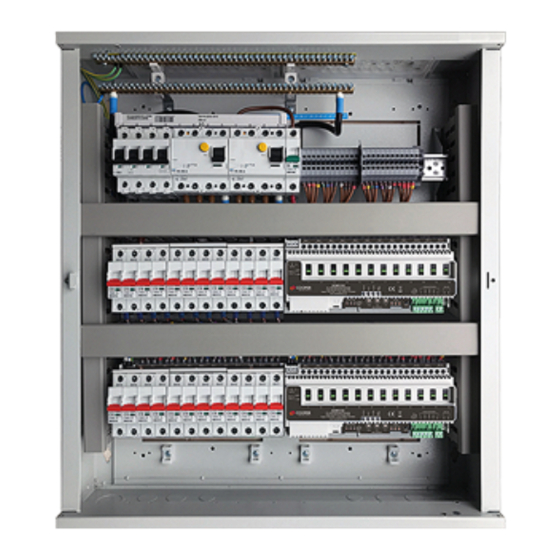

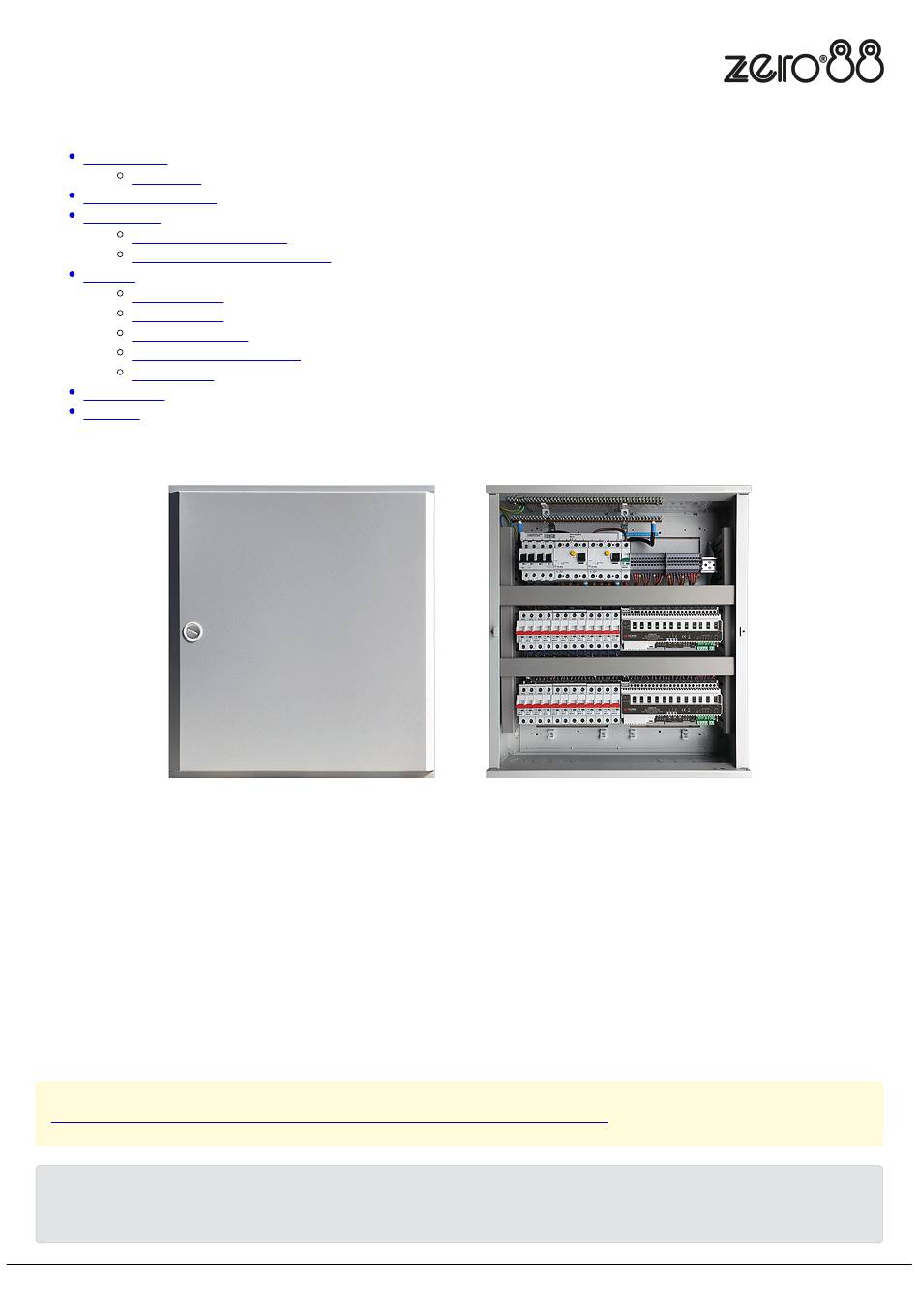

RigSwitch is a remote controlled power switching solution suitable for any size venue, utilising Cooper Lighting
Solutions broad portfolio of power management technologies.
RigSwitch can be delivered in standard 12 or 24 channel cabinet configurations with RCD or RCBO options with a
wide choice of user control interfaces. Customised RigSwitch configurations include larger channel counts and options
for RCBO traffic lights and AFDD (Arc Fault detection). With individual relays rated for up to 32A operation RigSwitch
can cater for even the most power hungry user.
RigSwitch is ideal for switching power for todays' modern entertainment lighting systems, including moving lights, hot
power sockets, specials and LED equipment.
Please read this manual before use, especially the Warnings & Safety section.
Zero 88 - RigSwitch - Page 1 of 16
Printed: 12/03/2021 11:03:15 ES
Advertisement
Table of Contents
Related Manuals for Zero88 RigSwitch
Summary of Contents for Zero88 RigSwitch
- Page 1 Solutions broad portfolio of power management technologies. RigSwitch can be delivered in standard 12 or 24 channel cabinet configurations with RCD or RCBO options with a wide choice of user control interfaces. Customised RigSwitch configurations include larger channel counts and options for RCBO traffic lights and AFDD (Arc Fault detection).
- Page 2 E&OE. Cooper Lighting Solutions reserves the right to make changes to the equipment and specificationdescribed in this manual without prior notice. Zero 88 - RigSwitch - Page 2 of 16 Printed: 12/03/2021 11:03:15 ES...
- Page 3 Thank you Thank you for choosing RigSwitch by Zero 88 to fulfil your lighting power needs. We sincerely hope that your new unit will bring you years of trouble free service. We make great efforts to build in reliability and serviceability at every stage of our development and production processes and include a three-year limited warranty - giving you peace of mind for your investment.
- Page 4 If you see something that doesn't look right, or have suggestions, please send us an email to support@zero88.com. Revisions Jan 2021 - Manual created - ES Zero 88 - RigSwitch - Page 4 of 16 Printed: 12/03/2021 11:03:15 ES...
-
Page 5: Warnings And Safety
Warnings & Safety Do not remove the covers without first completely disconnecting RigSwitch from the mains supply. This product must be earthed. This equipment is designed for professional stage lighting control and is unsuitable for any other purpose. It should be used by, or under the supervision of, an appropriately qualified or trained person. -
Page 6: Installation
The unit should be installed in a dry ventilated location, where ambient temperature and humidity are within the operating range of the unit. RigSwitch cabinets are provided with four fixing holes for wall mounting. The mounting holes can be accessed by undoing the screws on the front cover and removing it Wall drilling positions are shown in the diagram below. -
Page 7: Connecting The Mains
Connecting the mains Zero 88 - RigSwitch - Page 7 of 16 Printed: 12/03/2021 11:03:15 ES... - Page 8 To connect the mains to RigSwitch cabinets, bring in a suitable 3 phase supply at 100A per phase maximum, to the main isolator top left of the cabinet, and a secure mains earth to the Earth busbar at the top of the cabinet.
-
Page 9: Dmx Control
Control RigSwitch cabinets feature an SCMR1232 Relay Controller, which can be controlled with DMX, DALI or iCANnet. RigSwitch 12 include one of these, and RigSwitch 24 include two. Connecting and configuring the control methods... DMX Control DALI Control iCANnet Control... -
Page 10: Dali Control
RigSwitch cabinets feature an SCMR1232 Relay Controller, which can be controlled with DMX. RigSwitch 12 include one of these, and RigSwitch 24 include two. To control with DMX, bring in a suitable DMX feed into the SCMR1232 RS485 terminals. If this SCMR1232 is the last device on the DMX line, terminate the DMX line with the termination switch. - Page 11 RigSwitch cabinets feature an SCMR1232 relay controller, which can be controlled with DALI. RigSwitch 12 include one of these, and RigSwitch 24 include two. To control with DALI, bring in a suitable DALI line, and connect to the DALI DA terminals.
- Page 12 If the SCMR1232 is not the end of the iCANnet, whether that be the iCANnet continuing to another device, or to the other SCMR1232 in RigSwitch 24, continue the iCANnet feed out of these terminals, and do not terminate.
-
Page 13: Alarm Input
DMX signal is lost. If an Alarm input, or Alarm CAN message is received, this will override the DMX input. If controlling with DALI and the SCMR1232 in RigSwitch is configured as a DALI end device, iCANnet and DMX control will be ignored. - Page 14 Zero 88 - RigSwitch - Page 14 of 16 Printed: 12/03/2021 11:03:15 ES...
- Page 15 Operating Relative Humidity (max) 80% non condensing Always observe the operating environment information. If this environment is exceeded, it is likely that damage will occur to RigSwitch. Zero 88 - RigSwitch - Page 15 of 16 Printed: 12/03/2021 11:03:15 ES...
- Page 16 For more urgent requests, please contact Zero 88 by telephone on +44 (0)1633 838088 – 24 hour answer service available. Zero 88 - RigSwitch - Page 16 of 16 Printed: 12/03/2021 11:03:15 ES...
