- Page 1 Artistic Licence moody cvi1 Quick Start Guide The full User Guide can be downloaded via the QR code moody cvi1 Quick Start Guide Version 2-0...

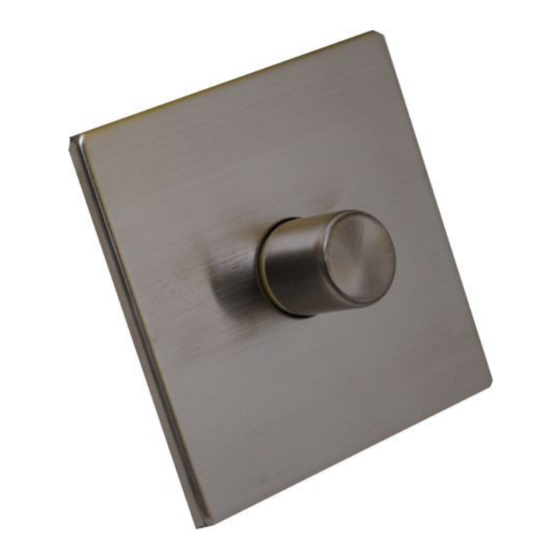

- Page 2 Overview y moody cvi1 - Controls a single intensity channel with CV dimmer output at 12 - 24 VDC (5A total) - Wheel controls intensity Connections Outputs are labelled Red, Green and Blue. Connect the negative terminal of your LED lamp to the Red terminal, and the positive to the terminal marked ‘+ VDC’.
- Page 3 Programming (moody cvi1) Step 1 To enter programming mode, press and hold control for 3 seconds. Step 2 moody’s indicator LED flashes white to acknowledge it has entered intensity programming mode, then shows the intensity of the channel. Step 3 - set the intensity Rotate clockwise to increase intensity.
- Page 4 Artistic Licence The Mould Making Workshop Soby Mews Bovey Tracey TQ13 9JG United Kingdom Telephone +44 (0) 20 8863 4515 Email: Sales@ArtisticLicence.com Support@ArtisticLicence.com Web: www.ArtisticLicence.com Due to our policy of continuing product improvement specifications are subject to change without notice...
