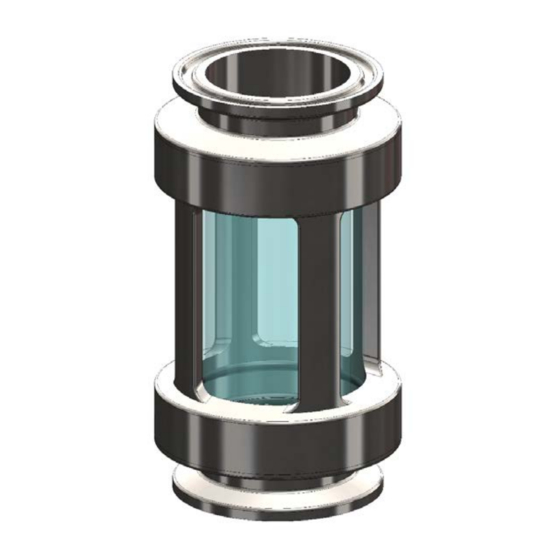

Summary of Contents for Clark-Reliance Hy-Sight

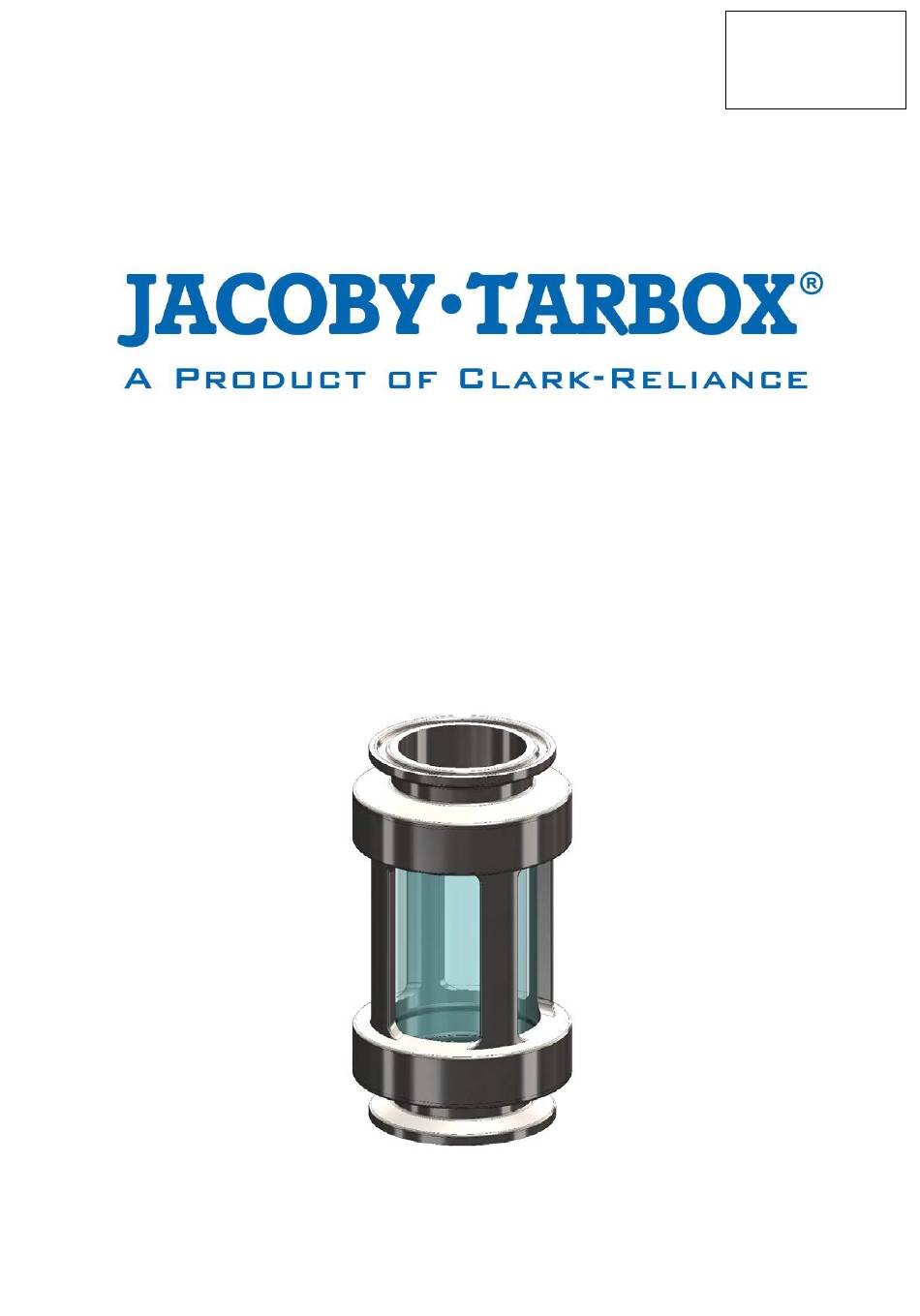

- Page 1 Section: T500 Bulletin: T500.3 Date: 03/16/15 Supersedes: NEW HYGIENIC SIGHT FLOW INDICATORS Installation, Operation, and Maintenance Manual 16633 Foltz Parkway, Strongsville, OH 44149, USA +1 440-572-1500 • clark-reliance.com...
- Page 2 Unpacking ..........................4 2.1. Visual Inspection ........................4 2.2. Positioning..........................4 2.3. Commissioning / Start Up ....................4 2.4. Maintenance ..........................5 Disassembly ......................... 5 3.1. Assembly ..........................5 3.2. 16633 Foltz Parkway, Strongsville, OH 44149, USA +1 440-572-1500 • clark-reliance.com...
- Page 3 As standard units are supplied with tri-clamp ended covering imperial OD tube sizes from 1/4” through to 6”. 1.1. Specification The specified operating conditions for your Hy-Sight unit is tube size, pressure and temperature dependant, ensure your chosen Hy-Sight product conforms to the quick reference table shown below: Operating Maximum Allowable Operating Temperature (°F / °C)
- Page 4 1.2. Components Each standard Hy-Sight assembly unit is comprised of five different components: Body Component Quantity: Material: 316L Stainless Steel (standard, options available) Head Connection Quantity: Material: 316L Stainless Steel (standard, options available) Glass Cylinder Quantity: Material: 3.1 Borosilicate Glass (standard, Acrylic available)
- Page 5 2.2. Visual Inspection Upon receipt of your Hy-Sight unit visual inspect the unit for any sign of damage that may have of occurred during shipping or mishandling. During visual inspection, particular attention should be made to the glass cylinders internal and external surfaces.
- Page 6 3. Maintenance Periodic maintenance and inspection should be carried out on the Hy-Sight unit, the frequency of which will vary with application. The end user should determine the appropriate maintenance schedule based on their experience with the given application. Maintenance & inspection procedures should focus on the following areas: a) The screwed head connections remain tight and butted up against the body.
- Page 7 ** Ensure the lubricant used is not harmful to either the O-rings material or the end users process. DANGER Adequate PPE should be warn when assembling or disassembling the Hy- Sight unit, this includes but not limited to eye protection and cut proof gloves. 16633 Foltz Parkway, Strongsville, OH 44149, USA +1 440-572-1500 • clark-reliance.com...
