Product Overview

Your new SkyBase™ Stand is a sturdy, level stand that is able to hold approximately 200 pounds of weight and will
safely accommodate your fully stocked SkyBox™ personal beverage vendor. The SkyBox™ personal beverage vendor
securely mounts to this SkyBase™ stand. The stand also provides additional, unrefrigerated storage. Consider it your
bullpen, bench or pit area!

Installation Location

• SkyBox™ personal beverage vendor is designed for indoor use only with room temperatures between 50° – 80° F
(10° – 27° C).
• Allow a minimum of 5" (127 mm) clearance from the door hinges to a side wall to allow the door to swing open.
Allow 3" (77 mm) of clearance behind the SkyBox™ personal beverage vendor and 1" (26 mm) clearance on all
other sides for ease of installation. Additional space is required above the main unit to change the front or side
display panels.
• IMPORTANT: For safety, the unit should be displayed in a secure, level area, with the
back of the unit securely against a wall, with 3" (77 mm) of clearance. The wall installation
is to prevent anyone, including children, from getting behind the unit and tipping it over,
causing personal injury.
• Use caution when installing the unit on vinyl or hardwood floors so as not to mark or otherwise damage the
flooring. A piece of plywood, a rug or other material should be used to protect the floor while positioning the unit.
• Once assembled and loaded with beverages, the SkyBox™ personal beverage vendor with SkyBase™ stand weighs
up to 300 pounds (136 kg), so select a location that will not require frequent moving.
• Moving the loaded SkyBox™ personal beverage vendor may cause damage to the unit.
To avoid serious risk of injury, DO NOT lift or move the SkyBox™ personal beverage vendor and/or SkyBase™ stand
when loaded with beverages or when the door is open.
Assembling Your SkyBase™
Stand
Carefully unpack the stand parts (see below) from the
packaging.
Tools Needed:
• #2 phillips head screw driver
• Adjustable Wrench
Parts
A End Frame.......................................................................................................2
B Long Support Rail.......................................................................................4
C Rear Leveling Legs (attached to end frames)..............................2
D Shelves..............................................................................................................2
E Pan-Head Screws.....................................................................................24
F Left Side Panel (with hinge holes) .....................................................1
G Right Side Panel (with no hinge holes)...........................................1
H Back Panel......................................................................................................1
I Door....................................................................................................................1
J Hinges (attached to the door)..............................................................2
K Front Foot.........................................................................................................2
L M5 x 16 Hex-Phillips Head Cap Screw -
M Front Foot Leveling Head........................................................................2
N Flat Head Screws.........................................................................................6
1
FF M5 x 20 Hex-Phillips Head Cap Screw -
WARNING
WARNING

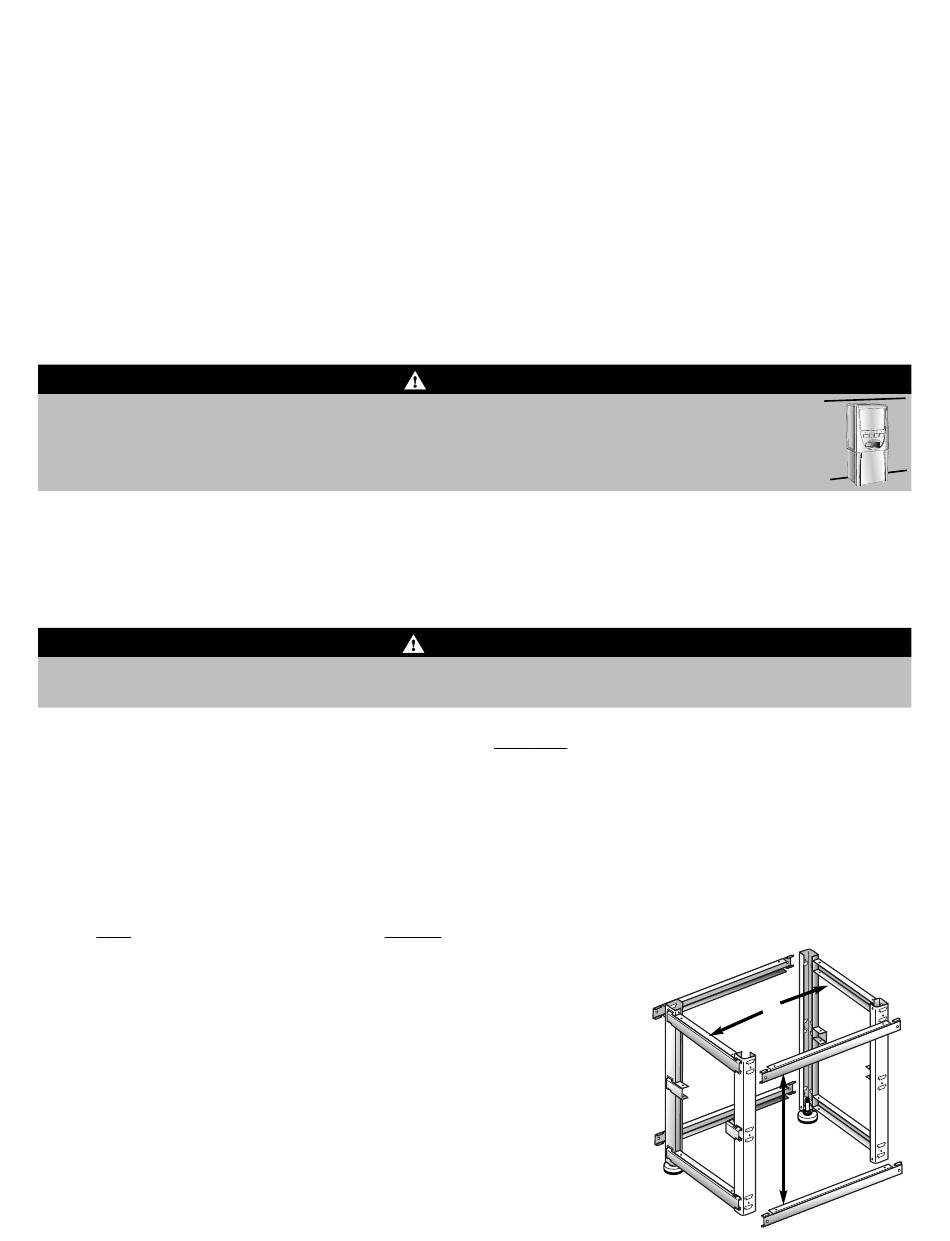

STEP 1 – Assemble Frame of Stand
• Connect one long support rail (B) to one of the end
• Level
• Connect the other end of support rail to a second
Quantity
• Repeat
5
⁄ " (16mm) long....6
8
3
⁄ " (20mm) long....2
4
frames (A) by inserting the tabs on the support rail
into the slots of the end frame and pressing
downward. The support rails will temporarily lock into
place when pressed downward.
end frame (A) by inserting the tabs on the support
rail into the slots of the end frame and pressing
downward.
procedure for
remaining 3 rails,
creating a basic
frame for the
cabinet. DO
NOT INSTALL
ANY SCREWS
(E) DURING
THIS STEP!
Important
Wall
Installation
A
B
