Swash 300, 900, 1000, 1200, 1400, CL825, SE400, and SE600 Toilet Seat Fit
Information
These instructions are for fitting a Swash bidet toilet seat onto an existing toilet.
How to measure for a Swash toilet seat

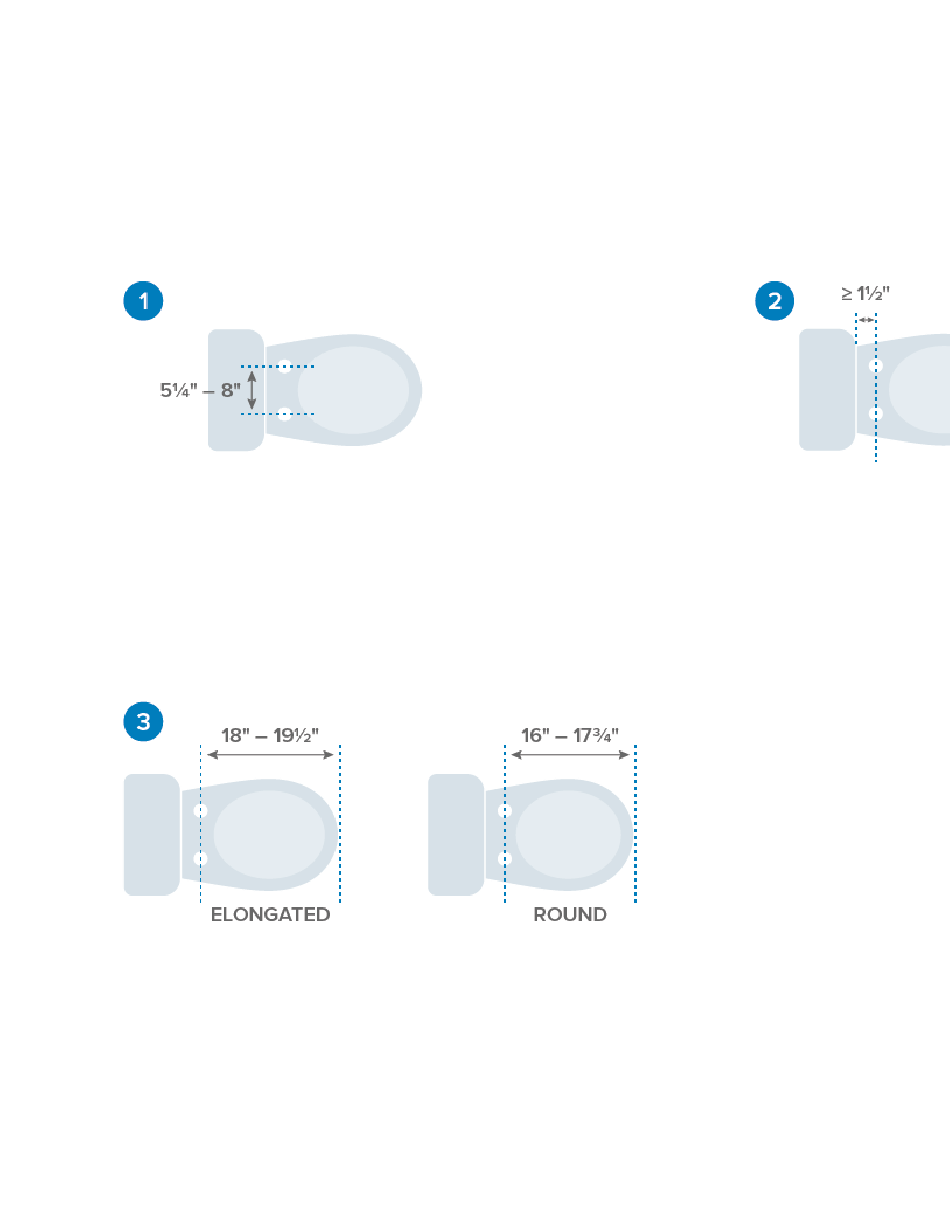

Measure the distance between the bolt holes.
The space must be between 5-1/4 inches and 8
inches.
Please note: to properly fit SE400, SE600,
IS707, CL510, and CL950 models, this distance
must be 5-1/2 inches.
Measure the distance from the bolt holes to the front of the toilet bowl to determine if you
have a round or elongated fixture.
If your measurement is 18" – 19½" order an Elongated Swash
If your measurement is 16" – 17¾" order a Round Swash
Measure the distance from the center of the
bolt holes to the toilet tank to ensure proper
clearance. There must be at least 1½ inches of
clearance.*
Advertisement
Table of Contents
Summary of Contents for SWASH 300
- Page 1 Swash 300, 900, 1000, 1200, 1400, CL825, SE400, and SE600 Toilet Seat Fit Information These instructions are for fitting a Swash bidet toilet seat onto an existing toilet. How to measure for a Swash toilet seat Measure the distance between the bolt holes.
- Page 2 The overall length of the Round Swash is 19.4 inches. A distance less than 19.4 inches from the tank to the front of the toilet bowl will also cause overhang.
- Page 3 Wall-Hung: Toto Maris (Because this toilet uses an In-Wall Tank System, your plumber • will need to provide an accessible ½” water supply connection for the bidet) *you will need Alternative T-Valve Top Mount Hardware for this installation Swash 100 EcoSeat Toilet Fit Information...
- Page 4 The Swash Ecoseat S100 is designed to fit Elongated toilets only, however this model will fit select Round fixtures. Please reference the diagram above for size verification. The Ecoseat S100 will not fit French Curve fixtures.
