ORIUM 23660 User Manual

Please read the instructions below carefully before use and keep this manual for future reference

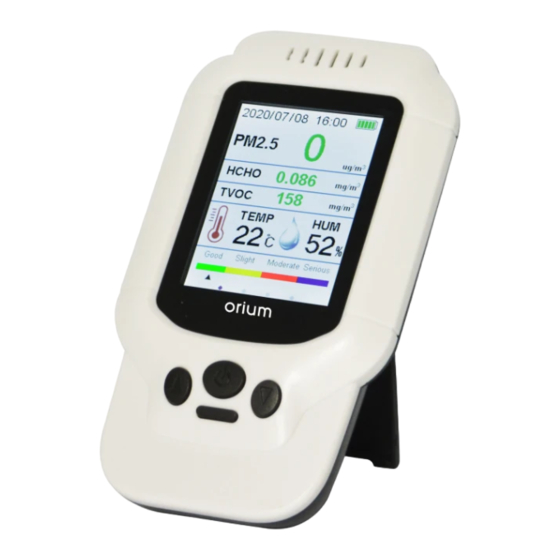

The portable air quality tester (product reference 23660) has been designed for indoor use only.
The tester continuously measures the level of various pollutants and provides a practical, ever-ready,
alternative prevention solution to comply with national regulations (e.g., French decree 2015-1000 of
17th August, 2015: 2012-14) on the measurement of pollutants in the indoor air of public buildings and
venues.
Its primary purpose is to indicate air quality in enclosed atmospheres. The tester cannot be considered
a substitute for the indoor air quality monitoring methods described in your relevant legislation.

Technical features:

- Measures concentrations of airborne pollutant: formaldehyde (HCHO), particulates (PM1.0,
PM2.5, PM10), and total volatile organic compounds (TVOC) in a room and displays them on
the LCD display
- Measures and displays the room's relative humidity and ambient temperature.
- Power supply: lithium battery 1200 mAh rechargeable via USB cable (included).
- Storage and carrying pouch.
Detection and
measurement range
Accuracy
Granularity:
Operating conditions: temperature –10°C to +45°C, humidity 20% to 85%, avoid condensation.
Storage conditions: temperature –10°C to 60°C, humidity 20% to 85%, avoid condensation.
Sensor technology: electrochemical for formaldehyde, semiconductor for TVOC, laser for particulates.
PORTABLE INDOOR AIR QUALITY TESTER
User manual
Formaldehyde (HCHO) level
Total volatile organic
compounds (TVOC)
PM1.0, PM2.5, PM10 levels
Temperature
Humidity
Formaldehyde (HCHO).
TVOC
Particulates
Temperature
Humidity
Formaldehyde (HCHO)
TVOC
Particulates
Temperature
Humidity
Imported by
AIC International, 44980 Ste-Luce-sur-Loire, France
0.001 to 1.999 mg/m³
0.001 to 9.999 mg/m³
0 to 999 µg/m³.
–10°C to +50°C
20% to 85% RH.
± 20%
± 20%
± 15%
± 1°C
± 5%
0.001 mg/m³
0.001 mg/m³
1 µg/m³
1°C
1% RH
