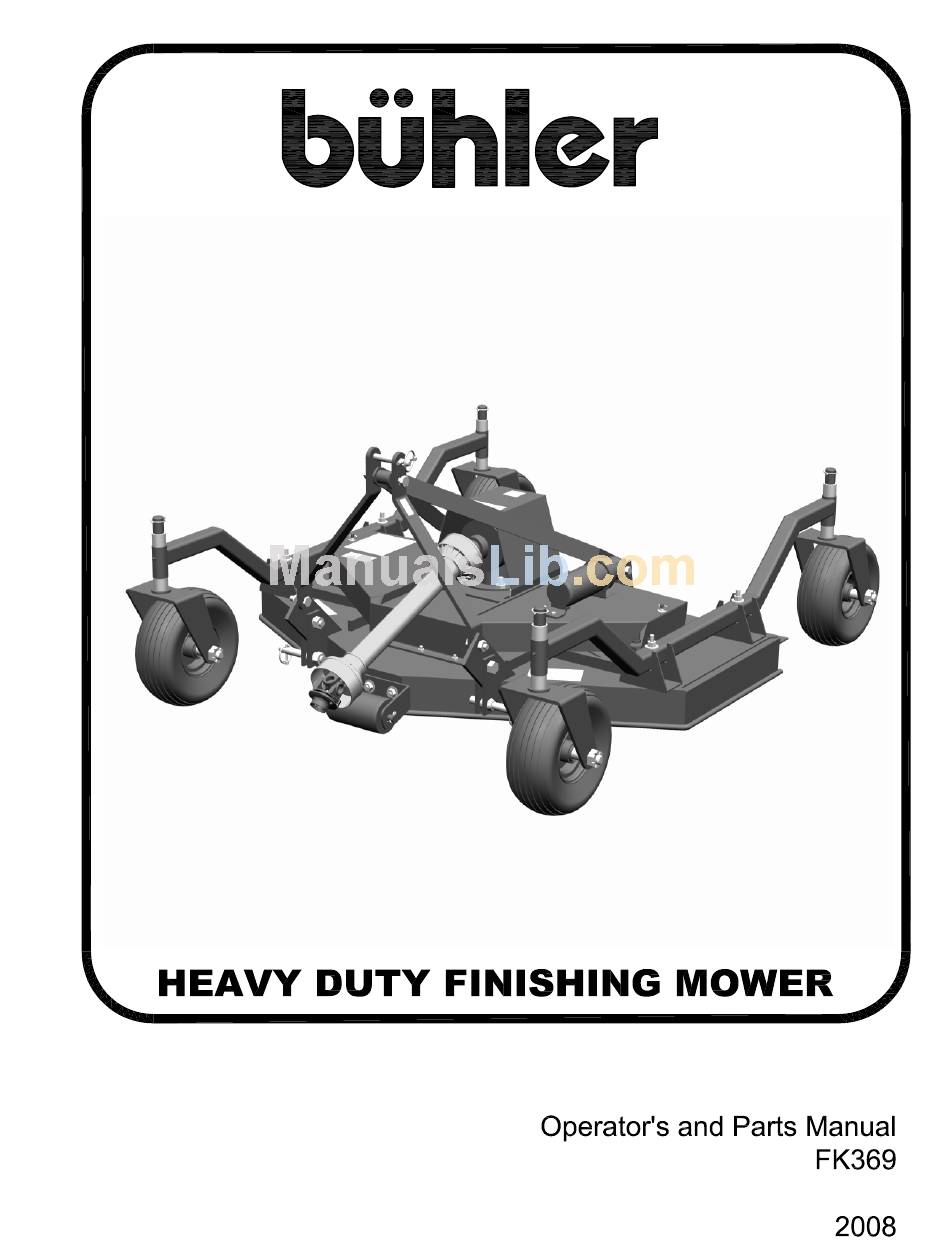

Heavy duty finishing mower operator's and parts manual

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FK369 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Buhler FK369

  • Page 3: Table Of Contents

    TABLE OF CONTENTS DESCRIPTION WARRANTY... 1 INTRODUCTION ... 2 SAFETY... 3 Safety ... 3 General Safety ... 4 Start Up Safety ... 4 Operation Safety ... 4 Transport Safety ... 5 Service and Maintenance Safety... 5 Storage Safety... 5 Safety Signs ... 6 Safety Sign Installation ...
  • Page 4 PARTS DRAWINGS... 24 5’, 6’ & 7’ Rear Discharge Drawing... 24 5’ 6’ & 7’ Rear Discharge Parts List ... 25 Gearbox Drawing... 28 Gearbox Parts List... 29 Spindle Assembly Drawing... 30 Spindle Assembly Parts List ... 31 PTO Shaft Drawing... 32 PTO Shaft parts List ...
  • Page 5: Warranty

    Heavy Duty Finishing Mower WARRANTY POLICY Buhler Manufacturing products are warranted for a period of twelve (12) months (90 days for commercial application) from original date of purchase, by original purchaser, to be free from defects in material and workmanship under correct, normal agricultural use and proper applications.
  • Page 6: Introduction

    This creates powerful suction that lifts the grass for a crisp cut. A blade overlap prevents stripping and ensures the lawn is mowed evenly. Buhler Farm King Heavy Duty Finishing Mowers are built to be durable and long lasting. Each wheel yoke assembly includes a cutting height adjustment on the 1" wheel yoke shaft.
  • Page 7: Safety

    Remember, YOU are the key to safety. Good safety practices not only protect you, but also the people around you. Make these practices a working part of your safety program. Be certain that everyone operating this equipment is familiar with the recommended operating and maintenance procedures and follows all the safety precautions.
  • Page 8: General Safety

    Read and understand the Operator’s Manual and all safety signs before operating, servicing, adjusting, repairing, or unplugging the equipment. Do not attempt any unauthorized modifications to your Buhler product as this could affect function or safety, and could affect the life of the equipment.
  • Page 9: Transport Safety

    Review Transport Safety instructions in tractor manual before moving. Check with local authorities regarding transport on public roads. Obey all applicable laws and regulations. Make sure the SMV (Slow Moving Vehicle) emblem and all the lights and reflectors that are required by the local highway and transport authorities are in place, are clean, and can be seen clearly by all overtaking and oncoming traffic.
  • Page 10 Heavy Duty Finishing Mower HEAVY DUTY FINISHING MOWER SAFETY SIGNS...
  • Page 11 Heavy Duty Finishing Mower SAFETY SIGNS – cont’d. Replace safety sign immediately should it become damaged, torn or illegible. Obtain replacements from your authorized dealer using the part numbers shown.
  • Page 12: Assembly

    HITCH ASSEMBLY INSTRUCTIONS The hitch is assembled except for the two pivot bars (#69). Bolt one end of each pivot bar between the welded brackets at the back of the deck using the bolts assembled in the mower. Remove the 3/4” bolt (#63) at the top of the hitch assembly. Using the same bolt, assemble with the pivot bars between the hitch weldment (#38) 1.
  • Page 13: Start Up

    Park the unit on hard level ground with the mower slightly raised. Adjust the sway blocks or chains on the tractor so the mower is centered between the rear wheels. Adjust the three-point hitch arms to level the mower side to side. Adjust the turnbuckle on the top of the three-point hitch arms to level the mower front and back.
  • Page 14: Operation

    The Heavy Duty Finishing Mower is designed to be used on a tractor with a standard category 1 three-point hitch. See the specification sheet for horsepower requirements. Using excessive power will shorten the life of the drive train components. CONNECTING TO TRACTOR: Park the mower and tractor on a level dry area free of debris and foreign objects.
  • Page 15: Field Operation

    FIELD OPERATION The mower works best on dry grass. Slower cutting speed and occasional cleaning may be required on damp or wet grass. The PTO must run at the full 540 rpm for a good cut. Slower speeds or double cutting could be required for very high grass. Use a higher blade setting for rough areas to prevent scalping of the surface.
  • Page 16: Theory Of Operation

    Heavy Duty Finishing Mower THEORY OF OPERATION...
  • Page 17: Maintenance

    Heavy Duty Finishing Mower MAINTENANCE HEAVY DUTY FINISHING MOWER PTO SHAFTS MAINTENANCE: The cross journals and the shield bearings at both ends of the shaft should be greased every 8 hours. Use 1 or 2 pumps of high temperature grease. The cones on the outer PTO shield must be turned until the access holes line up with the grease nipple in the cross journals.
  • Page 18 Heavy Duty Finishing Mower PTO SHAFT...
  • Page 19: Mower Deck Wheel Bearings

    MOWER DECK WHEEL BEARINGS The mower wheel bearings are packed in grease when they are shipped. They should be repacked in fresh grease once a year or every 200 hours of usage. MOWER DECK WHEEL BEARINGS ITEM PART# DESCRIPTION 902422 Wheel Yoke 902489 1'' x 9 1/4'' long Wheel Yoke Pin...
  • Page 20: Gearbox Lubrication

    Heavy Duty Finishing Mower MOWER GEARBOX LUBRICATION The gearbox should be filled with SAE90 oil to the bottom of the level plug when shipped. Check the mower gearbox before using and at regular intervals (approximately every 40 hours). See that the oil level is maintained. On the mower gearbox the vent plug also acts as the fill plug.
  • Page 21: Spindle Replacement Drawing & Parts List

    Heavy Duty Finishing Mower SPINDLE REPLACEMENT OUTER SPINDLES: remove the belt guard on the side required (#7 & #8). Loosen the belts by first loosening the bolts holding the gearbox base plate (#2). Turn the 5/8” hex nut (#3) on the threaded rod on the base plate until there is enough slack in the belt to slip it off the spindle pulley.
  • Page 22 Heavy Duty Finishing Mower HEAVY DUTY MAINTENANCE – SPINDLE REPLACEMENT...
  • Page 23 ITEM PART# DESCRIPTION 912300158 Gearbox Assembly 980004200 Gearbox Base Plate 81676 5/8'' Hex Nut (pl) 84217 3/8'' Wing Nut (pl) 84000 3/8'' BS Flat Washer (pl) 906343 Gearbox Mount Plate 906353 5' R.H. Belt Guard 906355 6' R.H. Belt Guard 902269 7' R.H.
  • Page 24: Blade Replacement Drawing & Parts List

    Heavy Duty Finishing Mower BLADE REPLACEMENT The mower deck must be securely blocked up or locked in place before doing a blade replacement. When replacing or grinding blades, all three blades must be replaced or reground at the same time to maintain the proper balance in the cutting unit. Use heavy leather gloves to handle the blades.
  • Page 25 ITEM PART# DESCRIPTION 902667 5' Rear Discharge Deck 902668 6' Rear Discharge Deck 902669 7' Rear Discharge Deck 81593 3/8'' Lock Washer (pl) 81592 3/8'' Hex Nut (pl) 86171 3/8'' x 1 1/4'' Hex Bolt (pl) 912301558 Snap Ring 966860 Spindle Assembly (c/w Hardware) 966273 21 3/4'' Blade (5')
  • Page 26: Service Notes

    A basic requirement for a steady top performance of the machine is proper and regular maintenance. Use only original BUHLER parts. Keep the machine in a functioning and efficient condition by completing the maintenance and lubrication work as listed in the maintenance checklist. If maintenance is due, no work is to be done with the machine.
  • Page 27: Bolt Torque

    CHECKING BOLT TORQUE The tables shown below give correct torque values for various bolts and hex bolts. Tighten all bolts to the torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. Replace hardware with the same strength bolt.
  • Page 28: Parts Drawings

    Heavy Duty Finishing Mower 5’, 6’ & 7’ HEAVY DUTY REAR DISCHARGE FINISHING MOWER...
  • Page 29: 5' 6' & 7' Rear Discharge Parts List

    WHEN ORDERING PARTS Always give your dealer the Model, Color and Serial Number of your machine to assist him in ordering and obtaining the correct parts. Use the exploded view and tabular listing of the area of interest to exactly identify the required part. 5', 6', &...
  • Page 30 811646 1/2" x 6" Hex Bolt (pl) 81637 1/2" Lock Washer (pl) 81636 1/2" Hex Nut (pl) 812769 1 1/2" O.D. x 9/16" I.D. x 10ga Washer (pl) 84270 5/8" x 1 3/4" Hex Bolt (pl) 81677 5/8" Lock Washer (pl) 81676 5/8"...
  • Page 31 966188 2 1/2" O.D. x 21/32" I.D. Washer (Supplied with Spindle) 966189 5/8" x 1 1/4" Grade 8 Hex Bolt Lock (Supplied with Spindle) 966190 5/8" Lock Washer (pl) Extra Heavy (Supplied with Spindle) 966195 15/600 x 6" Tire with Wheel 966760 Pivot Bar 40"...
  • Page 32: Gearbox Drawing

    Heavy Duty Finishing Mower HEAVY DUTY FINISHING MOWER GEARBOX...
  • Page 33: Gearbox Parts List

    HEAVY DUTY FINISHING MOWER GEARBOX PARTS LIST Item # Part # 912300158 966813 914015 966814 966815 966816 966817 966542 966555 966818 966819 914019 914007 914001 966562 86171 905247 81593 914016 966193 914008 914003 Heavy Duty Finishing Mower Description Gearbox Complete Housing Output Cap Blank Cap...
  • Page 34: Spindle Assembly Drawing

    Heavy Duty Finishing Mower HEAVY DUTY FINISHING MOWER SPINDLE ASSEMBLY...
  • Page 35: Spindle Assembly Parts List

    FINISHING MOWER SPINDLE PARTS LIST (4', 5' & 6' SIDE AND REAR) Item # Part # 906339 966764 906399 912301558 906394 966769 966820 966821 FINISHING MOWER SPINDLE PARTS LIST (7' REAR) (ALL SIZE HEAVY DUTY & TRIPLEX) Item # Part # 966860 966862 966863...
  • Page 36: Pto Shaft Drawing

    Heavy Duty Finishing Mower HEAVY DUTY REAR DISCHARGE FINISHING MOWER PTO SHAFT...
  • Page 37: Pto Shaft Parts List

    HEAVY DUTY REAR DISCHARGE FINISHING MOWER PTO SHAFT PARTS LIST Item # Part # Description F0401 Shaft Complete - 5' & 6' F0400 Shaft Complete - 7' 907290 Yoke 920-002 Repair Kit 920-004 Outer Tube Yoke 920-006 Flexible Pin 936404 Outer Cardan Tube - 5' &...
  • Page 38: Chain Kit Parts List

    Heavy Duty Rear Discharge Finishing Mower Chain Kit Item # Part # Description 902667 5' Deck Weldment 902668 6' Deck Weldment 902669 7' Deck Weldment 902820 62 1/4'' Chain Guard Plate (5') 902823 74 1/4'' Chain Guard Plate (6') 902825 86 1/4'' Chain Guard Plate (7') 902827 62 3/8'' Long Chain Kit Rod (5')
  • Page 39: Chain Kit Drawing

    Heavy Duty Finishing Mower HEAVY DUTY REAR DISCHARGE CHAIN KIT...
  • Page 40: Quick Hit Kit Drawing & Parts List

    Heavy Duty Finishing Mower QUICK HITCH KIT...
  • Page 41: Blade Height Adjustment Drawing & Parts List

    The mowers must be raised off the ground far enough to pull the wheel yoke (#5) out of the welded sleeves at the ends of the axles (#1). Be sure the tractor is turned off. Pull out the clip (#4) and remove the wheel yoke. There are ½” and 1” spacers to adjust the cutting height.
  • Page 42: Mower Deck Belt Adjustment Drawing

    Heavy Duty Finishing Mower MOWER DECK BELT ADJUSTMENT...
  • Page 43: Mower Deck Belt Adjustment Parts List

    MOWER DECK BELT ADJUSTMENT Start by removing both belt guards on the mower deck. Loosen the bolts holding the gearbox base plate (#7). Turn the 5/8” hex nuts (#6) on the threaded rod on the base plate until there is enough slack in the belts to slip them off the spindle pulleys. If the belts can be pulled off by sliding them under the large double pulley, no further disassembly is required.
  • Page 44: Shipping Kit And Bundle Numbers

    SHIPPING KIT AND BUNDLE NUMBERS The following is a lit of Kit Numbers for this product and the Bundle Numbers, Descriptions, and Quantities for each Kit. QUANTITY BUNDLE NO. Y550RHD 60” HEAVY DUTY FINISHING MOWER F0688 F0670 F6670 F6673 Y650RHD 72”...
  • Page 45 NOTES...
  • Page 46 NOTES...
