M&P HyperFlex 5 Quick Start Manual

HyperFlex 5

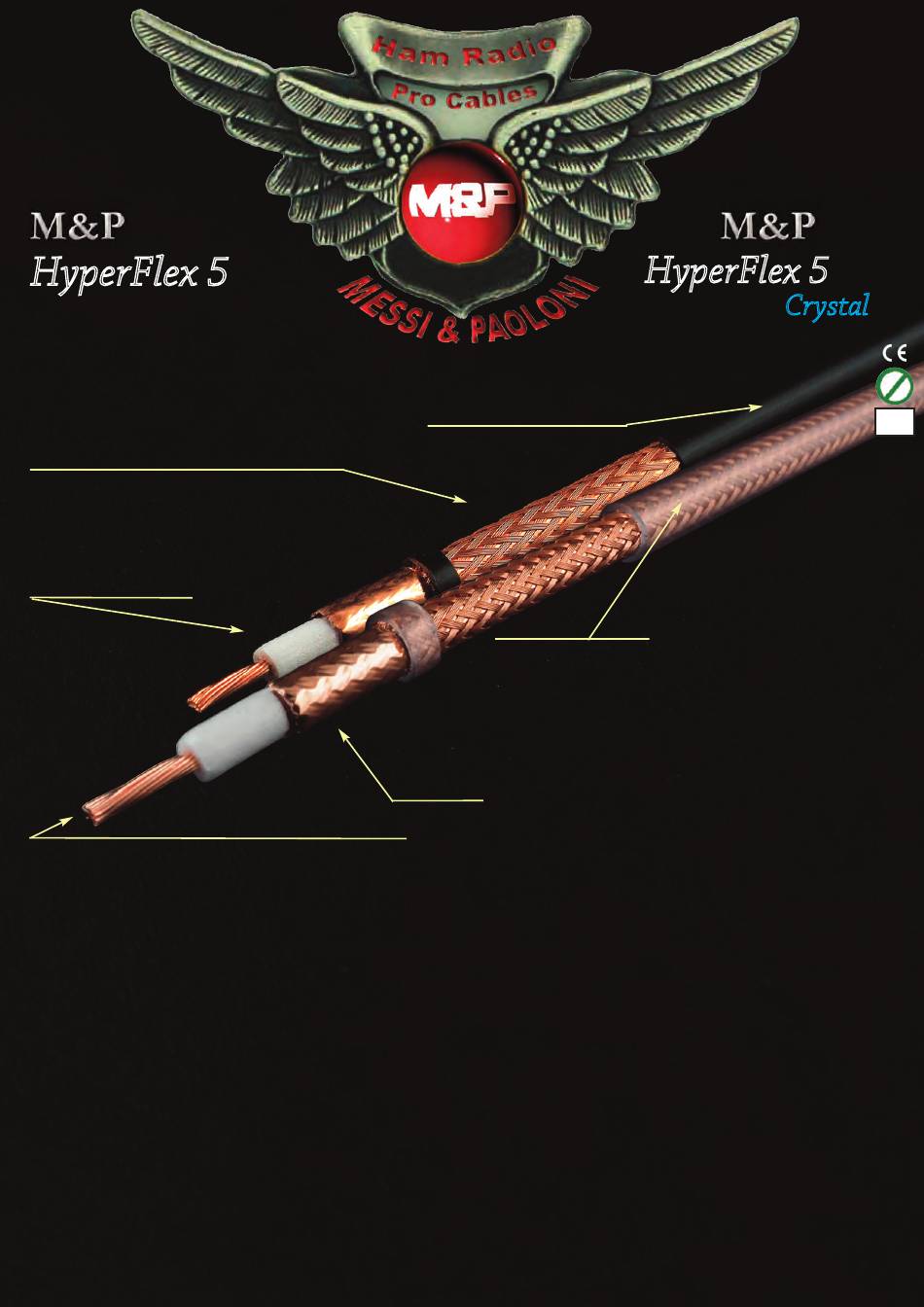

High resistance copper screen (Cu) made by means
of 24 spools braiding machines. (50% more crosso-
vers if compared to traditional 16 spools machines.)
HIGHLY EFFECTIVE AGAINST
This braid is
IMPULSIVE NOISES.
SCREENING PERCENTAGE: 88% 120 wires
High pressure physical injection
foamed polyethylene.
TRIPLE LAYER DIELECTRIC
FPE Ø 3,7 mm
± 0,05
(0.145 inches )
± 0.05
Inner conductor made of 19x0,29 stranded geometric
and concentric copper wires. Purity 99,99% annealed.
(annealed = thermal softening process)
Cu 19x0,29 mm - Ø 1,4 mm
(19x0.011 inches - 0.055 inches
ELECTRICAL DATA
Impedance @200MHz :
Minimum bending radius:
Multiple bends/single bend
Temperature:
Capacitance:
Velocity ratio:
Screening efficiency:
100-2000 MHz
Class
Inner conductor resistance:
Outer conductor resistance: 11 Ohm/Km
Tension test (spark test):
Weight (100m/100ft):
Maximum peak power:
Connectors: C.N.HF5M-S ; C.BNC.AC5M-S ; C.UHF.AC5M-S
For step by step assembly instructions of connectors, please visit our website www.messi.it
Our products are manufactured in compliance with: CEI 46-1 (construction parameters); EN 50117(screening efficiency); CEI EN 50289(SA test methods); IEC 60332-1-2(cables with LSZH jacket)
"
"
/.212
/.212
The copper foil has an applied PE-
coating, placed in order to prevent foil
cracking due to short radius bends.
SCREENING PERCENTAGE 100%
CU-POL
± 0,15
)
± 0.0059
50 Ohm ± 3
50/25 mm (1.97/0.98 in)
-45°C to + 70°C (-49°F to +158°F)
74 pF/m ± 2 (22.6 pF/ft ± 2)
87 %
>105 dB
A++
14 Ohm/Km (4.3 Ohm/1000ft)
(3.4 Ohm/1000ft)
4 kV
4,2 Kg (9.25 lb)
2900 WATT
UV resistant black PVC jacket.
PVC Ø 5,4 mm
± 0,15
(0.212 inches )
± 0.0059
Crystal clear PVC jacket.
PVC Ø 5,4 mm ± 0,15
(0.212 inches ± 0.0059)
SRL
0,3-600 MHz >28 dB
600-1200 MHz >25 dB
1200-2000 MHz >22 dB
POWER HANDLING (at 40°C/104°F)
FREQUENCY
1,8 MHz 1274 W
3,5 MHz 987 W
7,0 MHz 809 W
10 MHz 717 W
14 MHz 620 W
21 MHz 518 W
28 MHz 453 W
50 MHz 338 W
100 MHz 235 W
144 MHz 195 W
200 MHz 165 W
6
HyperFlex 5
Crystal
ATTENUATION at 20°C /68°F
FREQUENCY dB/100m dB/100ft
1,8 MHz 1,48
3,5 MHz 1,91
7,0 MHz 2,33
10 MHz 2,63
14 MHz 3,04
21 MHz 3,64
28 MHz 4,16
50 MHz 5,58
100 MHz 8,02
144 MHz 9,66
200 MHz 11,44
400 MHz 16,37
430 MHz 17,0
800 MHz 23,48
1000 MHz 26,46
1296 MHz 30,5
2400 MHz 42,58
3000 MHz 48,1
4000 MHz 56,95
5000 MHz 65,29
6000 MHz 72,92
MAXP FREQUENCY MAXP
400 MHz 115 W
430 MHz 111 W
800 MHz 80 W
1000 MHz 71 W
1296 MHz 62 W
2400 MHz 44 W
3000 MHz 39 W
4000 MHz 33 W
5000 MHz 29 W
6000 MHz 26 W
"
"
