Summary of Contents for Inova SIGI
- Page 1 SIGI User Manual v2.0 Inova-bg Ltd SIGI Inova-bg Ltd 2018...
-
Page 2: Table Of Contents
SIGI User Manual v2.0 Table of contents: Main features ..............................3 Start working with SIGI ..........................4 Homepage ................................ 5 Configuration of the main parameters ......................6 Username and password configuration......................8 Reboot ................................9 Hardware reset ..............................9 SiGi Receiver Software ........................... 9 Installing Virtual Serial Port Driver ...................... -
Page 3: Main Features

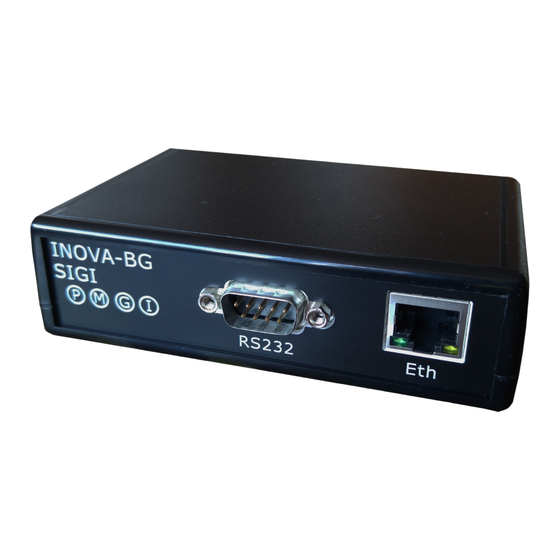

User Manual v2.0 1. Main features Inova-bg SIGI is a communication device with the main purpose to transmit data on RS232 channel, using IP network and/or GPRS mobile network as a transmission channel. The device has an HTML server for easy configuration and status check, protected with a username and a password. -
Page 4: Start Working With Sigi
Internet Explorer ( Chrome, Firefox, Opera or any other web browser ) and enter the SIGI’s address - http://192.168.1.220/ ( or the new one if you already change it ). If the device is accessible from that computer a connection will be... -
Page 5: Homepage
3. Homepage On the homepage you can find main information about the device and the current status of the connections and also the status of the GPRS network connection and the signal strength. Inova-bg Ltd 2018 Page 5 of 16... -
Page 6: Configuration Of The Main Parameters
DHCP server in the current network. If you select this mode but after reboot the device cannot find a DHCP server for more than 10 seconds – SIGI will load the last saved static address. In this case easy way to access the web-server is... - Page 7 Save Config a field will be generated – Error List – which describes in details the errors and how to fix them. If all the input data are correct SIGI will save the parameters and will reboot with the new configuration.
-
Page 8: Username And Password Configuration
When you click the Save Config button a validation check is performed. If there is invalid data in one or more fields – they will be colored in red. If all the input data are correct SIGI will save the parameters and will reboot with the new configuration. Inova-bg Ltd 2018... -
Page 9: Reboot
In case you changed the settings and can’t reach the device or if you forgot your username or password, SIGI is capable to return to its factory defaults. For this purpose you must disconnect from power supply, push and hold the button for hardware reset and reconnect to the power supply. - Page 10 – press the “Add Virtual COM Port” Button. In the Log slider tab there is a log of all the events that happened while the software was running – receiver initialization, connection status changes and etc. Inova-bg Ltd 2018 Page 10 of 16...
-
Page 11: Installing Virtual Serial Port Driver
Hold the shift key and press restart: Once your computer has rebooted you will be able to choose the Troubleshoot option. Then head into Advanced options. Inova-bg Ltd 2018 Page 11 of 16... - Page 12 SIGI User Manual v2.0 Then Startup Settings. Since we are modifying boot time configuration settings, you will need to restart your Computer one last time. Inova-bg Ltd 2018 Page 12 of 16...
- Page 13 Finally, you will be given a list of startup settings that you can change. The one we are looking for is “Disable driver signature enforcement”. To choose the setting, you will need to press the F7 key. Inova-bg Ltd 2018 Page 13 of 16...
-
Page 14: Driver Installation (Automatic)
SIGI User Manual v2.0 9.2 Driver Installation (Automatic) Start the SiGi Receiver as Administrator and follow the steps: Inova-bg Ltd 2018 Page 14 of 16... -
Page 15: Driver Installation (Manual)
SIGI User Manual v2.0 9.3 Driver Installation (Manual) If automatic installation cannot successfully install the driver please try to install it manually by following the steps: Inova-bg Ltd 2018 Page 15 of 16... - Page 16 SIGI User Manual v2.0 Inova-bg Ltd 2018 Page 16 of 16...
