ENGLISH
Hakki Pilke

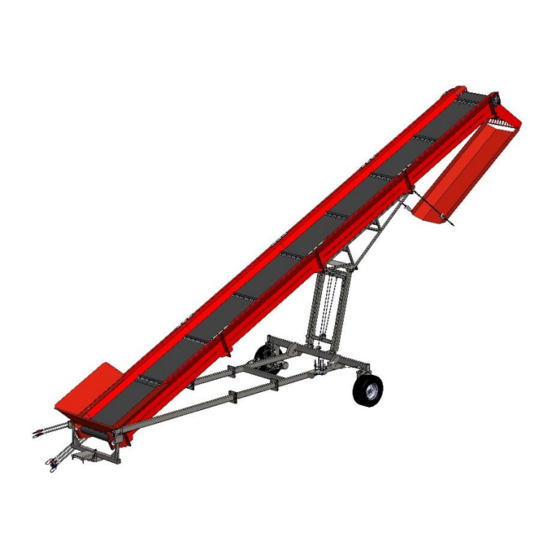

XL Conveyor
Firewood conveyor
– Instructions for assembly, operation and maintenance
– EC Declaration of Conformity
– Safety instructions
– Guarantee terms
The operator must read and understand these
instructions before operating the machine!
TP Silva Oy
Valimotie 1, FI-85800 Haapajärvi, Finland
Tel. +358 (0)8 772 7300
info@hakkipilke.fi
www.hakkipilke.fi
Hakki Pilke XL - Conveyor
Translated
version 4-2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL Conveyor 1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hakki Pilke XL Conveyor 1

  • Page 1 – Safety instructions – Guarantee terms The operator must read and understand these instructions before operating the machine! TP Silva Oy Valimotie 1, FI-85800 Haapajärvi, Finland Tel. +358 (0)8 772 7300 info@hakkipilke.fi www.hakkipilke.fi Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 2: Table Of Contents

    2.10. Machine maintenance ........................ 31 2.11. Lubrication ..........................31 2.12. Washing and cleaning ......................... 33 2.13. Storage ............................33 Guarantee terms ........................34 Declaration of incorporation for partly completed machinery ..........35 Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 3: General Information

    1.2. Conveyor’s purpose of use The Hakki Pilke XL Conveyor is intended for transporting firewood from the Hakki Pilke firewood processor to where the firewood is intended to be deposited – sacks, for example. The conveyor must be attached to the Hakki Pilke firewood processor during operation.

  • Page 4: Safety Instructions

    Wear safety footwear and Wear eye and ear protection. before use. work gloves. Do not wear any loose items of Only one person may operate Beware of moving parts. clothing. the device. Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 5: Receipt And Assembly

    Check that the conveyor has not sustained any damage during transit, and ensure that all necessary parts are included in the package. In the event of any defects or damage, contact the retailer immediately. Remove any cable ties and strap supports installed for transport. Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 6: Assembling The Conveyor

    2. Assemble the conveyor • 4 m conveyor: as shown in Section 2.1 • 6 m conveyor: as shown in Section 2.2 • 8 m conveyor: as shown in Section 2.3 Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 7 • 4 m conveyor: as shown in Section 6.1 • 6 m conveyor: as shown in Section 6.2 • 8 m conveyor: as shown in Section 6.3 7. Install the firewood guide plates as shown in Section 7. Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 8 Ohjauslevy Guide plate Päätylevy Front plate Roskan erotin Debris sieve Roskalevy Debris plate Ketju Chain Letku Hose L=200, 3/8" Letku Hose L=250, 3/8" Letku Hose L=400, 3/8" Tappi D25 L=86 Vetoaisa Drawbar Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 9 9 / 35 Section 1. Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 10 10 / 35 Section 2.1 Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 11 11 / 35 Section 2.2 Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 12 12 / 35 Section 2.3 Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 13 13 / 35 Section 3. Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 14 14 / 35 Section 4. Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 15 15 / 35 Section 5.1 Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 16 16 / 35 Section 5.2 Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 17 17 / 35 Section 6.1 Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 18 18 / 35 Section 6.2 Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 19 19 / 35 Section 6.3 Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 20 20 / 35 Section 7. Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 21: Connecting The Conveyor To A Firewood Processor

    2.3. Connecting the conveyor to a firewood processor These connection instructions apply to the Hakki Pilke 55 Pro firewood processor. Before connecting the conveyor, please ensure that it is compatible with the Hakki Pilke firewood processor to which it is intended to be connected! 1.
  • Page 22 3. Connect hydraulic hose B (Figure 2) to XL Conveyor’s return hose (female quick coupling). 4. Connect XL Conveyor’s overflow hose to quick coupling C (Figure 2). 5. Connect the conveyor’s pivot motor hoses to quick couplings D and E (Figure 2a). Figure. 2. Figure 2a. Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 23: Using The Out-Feed Conveyor

    23 / 35 2.4. Using the out-feed conveyor The out-feed conveyor is used with the control panel of the Hakki Pilke machine. The running speed of the out-feed conveyor can be freely adjusted with adjustment screw C (Figure 3). If the conveyor is jammed for any reason, the conveyor must be stopped with lever B (Figure 1) and the machine shut down before the cause is removed.

  • Page 24: Adjusting The Conveyor Belt

    (Figure 4) tightly against each other on both sides. Note! Do not overtighten the belt – the spring must have room to compress and expand. Note! If you run out of clearance to tension the belt, use the other fastening holes at the connection point. Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 25: Turning The Conveyor

    4. Install the new belt in place in the reverse order. 2.6. Turning the conveyor XL Conveyor can be pivoted laterally by using the firewood processor’s hydraulics (e.g. Hakki Pilke 55 Pro). The conveyor wheels and the oil flow valve must be turned to the correct position before pivoting the...
  • Page 26 26 / 35 3. Turn the valve indicated with an arrow in Figure 5 to the horizontal position so that hydraulic oil can flow into the wheel’s drive motor. Figure 5. Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 27 27 / 35 You can then pivot the conveyor to the left/right with e.g. the Hakki Pilke 55 Pro firewood processor’s hydraulics by pushing/pulling lever C (Figure 6). Figure 6. Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 28: Transporting The Conveyor

    1. Detach the conveyor from the firewood processor by removing the rod and pin shown in Figure 2. 2. Install the conveyor drawbar, as shown in Figure 7, and lock the locking pin indicated with an arrow (both sides). Figure 7. Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 29 3. Straighten the conveyor wheels and lock them in place with the locking rods, as shown in Figure 8. 4. Turn the valve in Figure 8 to the lower position so that the hydraulic oil can flow freely into the wheel’s hydraulic motor. Figure 8. Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 30: Adjusting The Debris Removal Sieve

    7. Ensure that the machine can be moved safely off the processed firewood. 8. Clean the machine. If you will not be using the firewood processor for a while, do the following: 9. Store the machine according to the instructions in Section 2.13. Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 31: Machine Maintenance

    All other lubrication points of the machine are marked with a label presented in the figures below. 1. Bottom roller nipples (2 pcs, Figure 9). Figure 9. 2. Turning device nipple Figure 10). Hakki Pilke XL - Conveyor Translated version 4-2021...
  • Page 32 32 / 35 Figure 10. 3. Lifting device nipples pcs, Figure 11). Figure 11. 4. Top roller nipples (2 pcs, Figure 12). Figure 12. Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 33: Washing And Cleaning

    Although the machine is intended for outdoor use, it should be covered and stored in a sheltered location or indoors. Before prolonged storage, the machine must first be cleaned, then washed according to the instructions in Section 9 and lubricated according to Section 6. Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 34: Guarantee Terms

    This guarantee certificate indicates our responsibilities and obligations in full and excludes all other responsibilities. Hakki Pilke XL - Conveyor Translated version 4-2021...

  • Page 35: Declaration Of Incorporation For Partly Completed Machinery

    Name: Timo Jussila Address: Valimotie 1, FI-85800 Haapajärvi, Finland The aforementioned person assures that Hakki Pilke XL Conveyor, firewood conveyor (accessory to Hakki Pilke firewood processor) Serial number: ………………… • is compliant with the applicable regulations of the Machinery Directive (2006/42/EC).
