Owner's Manual — Phoenix Window Adapter
The Phoenix Window Adapter is an easy to use and
convenient way to duct outside a structure through
most windows without the use of plywood or cardboard.
With its variable size openings and quick release cords, it
eliminates the need for tape to secure ducting to a window.
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
4201 Lien Rd • Madison, WI 53704
Installation, Operation & Service Instructions
Read and Save These Instructions

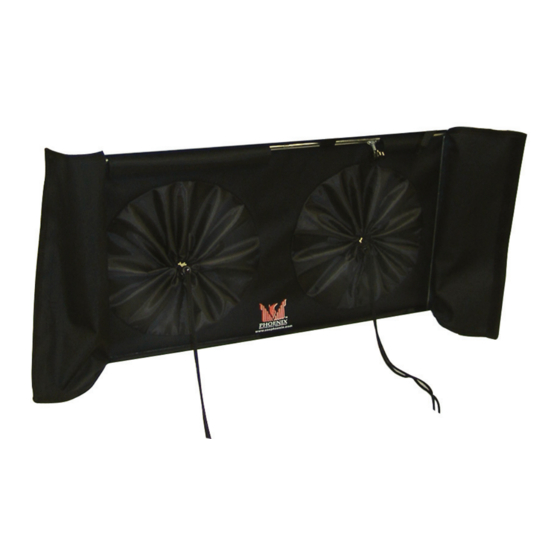

The Phoenix Window Adapter
· Adjustable from 23" to 36" window openings
· Durable steel frame construction
· Tough water-resistant canvas material
· Frame locks firmly into place
· Included locking strap to secure window from opening
· Quick setup
· Connect two together for larger openings
• accepts most duct sizes up to 12 inch (non-insulated) or
10 inch (insulated)
1
www.UsePhoenix.com • sales@UsePhoenix.com
TS-426
01/09
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Therma-Stor Phoenix Window Adapter
- Page 1 Owner’s Manual — Phoenix Window Adapter Installation, Operation & Service Instructions Read and Save These Instructions The Phoenix Window Adapter is an easy to use and convenient way to duct outside a structure through most windows without the use of plywood or cardboard.
- Page 2 Table of Contents 1 Intended Application Introduction ..............1 The Phoenix Window Adapter is an easy-to-use tool to 1. Intended Application ..........2 quickly utilize most double hung and sliding windows as 2. Specifications ............2 a portal to properly duct restoration equipment outside a drying structure.
- Page 3 Lower the window by hand so that it sits firmly on top of the window adapter. Pass the other end of the locking Periodically, lubricate the Phoenix Window Adapter frame strap through the Ladder Loc on the window adapter and with a silicone based lubricant at the sliding rods.
- Page 4 (but all warranty periods will be extended by the period of time, if any, that the Phoenix Window Adapter is out of service while awaiting covered warranty service).
