Summary of Contents for EEPD EM PRO mini E

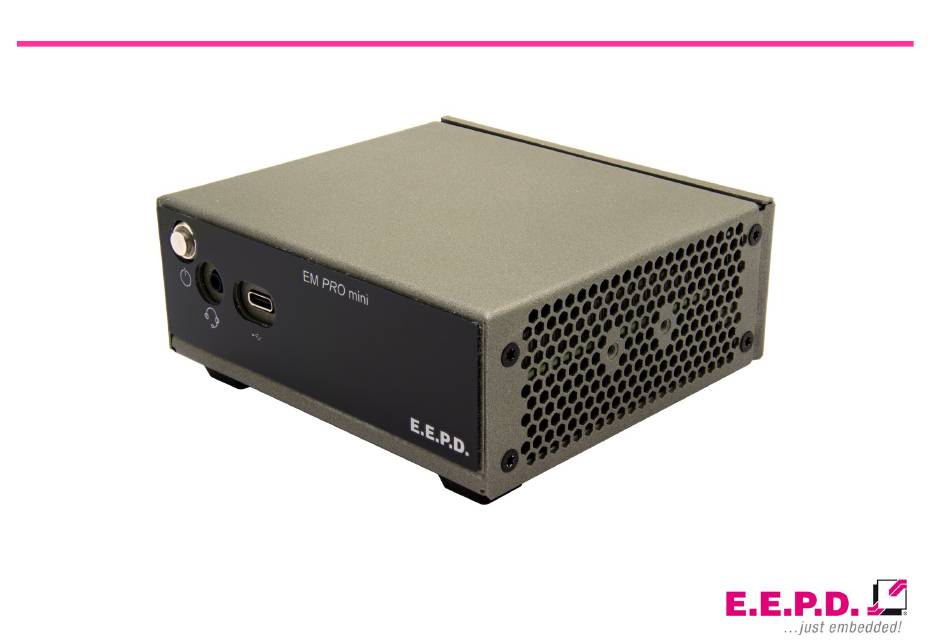

- Page 1 EM PRO mini E – Revision 1 - Device Reference Manual – P – Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev. 1.2...
-
Page 2: General Notes
EM PRO mini E Device Reference Manual – P – Revision 1 09/2021 Version 1.2 Manufacturer General Notes E.E.P.D. Electronic Equipment Produktion & Distribution GmbH This user manual is for your information only. Gewerbering 3 The information contained herein has been checked carefully and is believed 85258 Weichs to be reliable. - Page 3 EM PRO mini E Device Reference Manual – P – Revision 1 Disclaimer FCC and CE Disclaimer This document is provided for the general information of the customer. It E.E.P.D. GmbH gives no warranty at all that their products will meet the FCC...
- Page 4 EM PRO mini E Device Reference Manual – P – Revision 1 Disposal of Device At the end of the lifetime please dispose and/or recycle the components of the device accordingly. Technical Support For technical information about hardware and software please contact: support@eepd.de...
-
Page 5: Table Of Contents
EM PRO mini E Device Reference Manual – P – Revision 1 Connection Overview ..................15 Table of Contents Power Button with LED ................. 16 General Notes ....................1 HDD/SSD LED ....................17 Connections ....................18 Symbols ......................6 Mini Display Ports ..................18 Safety Instructions .................. - Page 6 EM PRO mini E Device Reference Manual – P – Revision 1 Exit Menu ...................... 91 Revision History ..................93 Index of Figures ..................94 Index of Tables .................... 95 List of Abbreviations .................. 96 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs...
-
Page 7: Symbols
EM PRO mini E Device Reference Manual – P – Revision 1 Symbols The red danger sign warns you if incorrect operation puts your life or health at great risk. Both the components and the peripherals could be destroyed. The orange warning sign warns you that an incorrect or missing operation could seriously endanger your health or destroy the used components. -
Page 8: Safety Instructions
EM PRO mini E Device Reference Manual – P – Revision 1 Safety Instructions Device Safety Safety of People The BoxPC operates exclusively within the specified DC The product generates considerable heat. The housing voltage range. Repair work should only be made by an transports this heat to the environment and thus becomes hot. -
Page 9: System Information
EM PRO mini E Device Reference Manual – P – Revision 1 System Information Required Tools Options For the installation of the BoxPC system the following standard tools are recommended: Options Description • V2000 processors: Max. 32 GB dual- Cable connection: Slot screwdriver... -
Page 10: Accessories
EM PRO mini E Device Reference Manual – P – Revision 1 Accessories Intended Use For accessories please contact our sales department. The EM PRO mini is a personal computer to be used with Windows 10, Windows 10 IoT Enterprise or Ubuntu Linux 20.04 LTS. It has been designed for office and workshop environments. -
Page 11: Scope Of Delivery
EM PRO mini E Device Reference Manual – P – Revision 1 System Dimensions Scope of Delivery Before you begin installation, please check that your shipment is complete and contains the items listed on the delivery note. Type Label Fig. 2: Dimensions frontside, all values approx. in mm Fig. -
Page 12: Fig. 4: Dimensions Left Side, All Values Approx. In Mm
EM PRO mini E Device Reference Manual – P – Revision 1 Fig. 4: Dimensions left side, all values approx. in mm Fig. 6: Dimensions bottom side, all values approx. in mm Fig. 5: Dimensions right side, all values approx. in mm E.E.P.D. -
Page 13: Din Rail Mounting (Optional)
EM PRO mini E Device Reference Manual – P – Revision 1 DIN Rail Mounting (optional) The BoxPC is also designed for DIN rail mounting. There are threaded Please follow the instructions below: sleeves for mounting the optional DIN rail holder in various positions (Fig.7). -
Page 14: Vesa Mounting (Optional)
EM PRO mini E Device Reference Manual – P – Revision 1 VESA Mounting (optional) The BoxPC is also designed for VESA mounting. There is an optional VESA mount available (Fig.8). Fig. 8: Side View VESA mounted system E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs... -
Page 15: Technical Data
EM PRO mini E Device Reference Manual – P – Revision 1 Technical Data • AMD V2000 processor series: V2516 / 6C / 12T / 2.1 GHz – 3.95 GHz / 10 – 25 W V2718 / 8C / 16T / 1.7 GHz – 4.15 GHz / 10 – 25 W •... -
Page 16: Interfaces
EM PRO mini E Device Reference Manual – P – Revision 1 Front View Interfaces Connection Overview The EM PRO mini BoxPC is equipped with the following standard interfaces: 1 – 2x Mini-DP++ connector 2 – Dual-USB 3.1 Gen2 port, type A (900mA each) 3 –... -
Page 17: Power Button With Led
EM PRO mini E Device Reference Manual – P – Revision 1 Fig. 11: BoxPC EM PRO mini rear view option Power Button with LED The Power Button has an integrated LED that lights up a green ring around the Power button when the system is turned on. -
Page 18: Hdd/Ssd Led
EM PRO mini E Device Reference Manual – P – Revision 1 HDD/SSD LED See fig.13 for the location of the second Power-LED and the HDD/SSD-LED. WiFi antenna connector (ODM option only) HDD/SSD-LED Power-LED Fig. 13: Power-LED | HDD/SSD-LED E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs... -
Page 19: Connections
EM PRO mini E Device Reference Manual – P – Revision 1 Important Note: Connections There are two kinds of DisplayPort cables available: Mini Display Ports Cables for direct connection to a Mini Display Port monitor Standard pin assignment with Pin 20 on both ends of the cable NOT connected. -
Page 20: 2.5 Gigabit Ethernet Dual-Port
EM PRO mini E Device Reference Manual – P – Revision 1 2.5 Gigabit Ethernet Dual-Port Power Connector (DC) Standard pin assignment Fig. 17: Power connector schematic Fig. 16: Dual-Ethernet detail Counterpart - plug: CUI Devices Power Plug ID 2.5mm, AD 5.5mm... -
Page 21: Rs232 Port 1
EM PRO mini E Device Reference Manual – P – Revision 1 RS232 Port 1 RS232 Port 2 9-pin D-Sub Signal 9-pin D-Sub Signal Tab. 4: Pin assignment RS232 Tab. 5: Pin assignment RS232 Front USB-C Port (max. 1.5A) Standard pin assignment Fig. -
Page 22: Commissioning
EM PRO mini E Device Reference Manual – P – Revision 1 Commissioning Switching on the device / Operation After all preparations have been made, the system is ready to be connected If connections are no longer accessible after system installation, to the power supply. -
Page 23: Uefi/Bios
EM PRO mini E Device Reference Manual – P – Revision 1 Entering Setup UEFI/BIOS Power on the board and press and hold [ESC] immediately to enter Setup. The UEFI/BIOS ROM has a built-in Setup program that allows users to modify the basic system configurations. -
Page 24: Main Menu
EM PRO mini E Device Reference Manual – P – Revision 1 Main Menu Once you enter the Setup Utility, the Main Menu (Figure 20) will appear on the screen. E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 25: Fig. 20: Main Menu 1
EM PRO mini E Device Reference Manual – P – Revision 1 Fig. 20: Main Menu 1 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 26: Fig. 21: Main Menu 2
EM PRO mini E Device Reference Manual – P – Revision 1 Fig. 21: Main Menu 2 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 27: Tab. 6: Main Menu
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description Select the current default language used by the Language <English>* InsydeH2O. This is the help for the hour, minute, second field. System Time No options Valid range is from 0 to 23, 0 to 59, 0 to 59. -
Page 28: Advanced Menu
EM PRO mini E Device Reference Manual – P – Revision 1 Advanced Menu Fig. 22: Advanced Menu E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 29: Tab. 7: Advanced Menu
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description PCI Express Configurations No options PCI Express Configurations Boot Configuration No options Configures Boot Settings. Peripheral Configuration No options Configures the peripheral devices. Select the IDE controller and hard disk drive type... -
Page 30: Fig. 23: Pci Express Configurations
EM PRO mini E Device Reference Manual – P – Revision 1 PCI Express Configurations Fig. 23: PCI Express Configurations E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 31: Tab. 8: Pci Express Configurations
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled> <Performance> <Balanced-High> PSPP Policy PCIe speed power policy <Balanced-Low>* <Power Saving> <Auto> Tab. 8: PCI Express Configurations E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs... -
Page 32: Fig. 24: Boot Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 Boot Configuration Fig. 24: Boot Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 33: Tab. 9: Boot Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Off> Numlock Selects Power-on state for Numlock <On>* Tab. 9: Boot Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 34: Fig. 25: Peripheral Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 Peripheral Configuration Fig. 25: Peripheral Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 35: Tab. 10: Peripheral Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled>* Enable/Disable TPM physical presence. Need to Trust Platform Module <Enable discrete TPM> reboot when set from disable to enable before <Enable firmware TPM>... -
Page 36: Fig. 26: Ide Configuration 1
EM PRO mini E Device Reference Manual – P – Revision 1 IDE Configuration Fig. 26: IDE Configuration 1 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 37: Tab. 11: Ide Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled> AUTO: Auto detect the SATA controller. SATA <Auto>* DISABLED: Disable the SATA controller <IDE> SATA Configure as Set SATA Configure Type <AHCI>* Sata Controller... -
Page 38: Fig. 27: Sata Controller 0
EM PRO mini E Device Reference Manual – P – Revision 1 SATA-Controller Fig. 27: SATA Controller 0 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 39: Tab. 12: Sata Controller 0
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled> SATA Port 0 SATA Port 0 Enable/Disable <Enabled>* <Disabled> SATA Port 1 SATA Port 1 Enable/Disable <Enabled>* <Disabled> SATA Port 0 SATA Port 0 Enable/Disable <Enabled>*... -
Page 40: Fig. 28: Usb Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 USB Configuration Fig. 28: USB Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 41: Tab. 13: Usb Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description Enable/Disable – VCC of USB Jacks No options Enable/Disable – USB VCC Tab. 13: USB Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs... -
Page 42: Fig. 29: Usb Ports
EM PRO mini E Device Reference Manual – P – Revision 1 Enable/Disable – VCC of USB Jacks Fig. 29: USB Ports E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 43: Tab. 14: Usb Ports
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description In order to not exclude yourself from using input <Disabled> USB 3.1 Rear VCC device in OS, at least one USB port should be <Enabled>*... -
Page 44: Fig. 30: Chipset Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 Chipset Configuration Fig. 30: Chipset Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 45: Tab. 15: Chipset Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <32> <64>* <96> <128> PCI Latency Timer PCI Latency Timer <160> <192> <224> <248> Tab. 15: Chipset Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs... -
Page 46: Fig. 31: Acpi Table
EM PRO mini E Device Reference Manual – P – Revision 1 ACPI Table Fig. 31: ACPI Table E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 47: Tab. 16: Acpi Table
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description High Precision Event Timer is supported in Windows Vista or above. HPET controller should <Disabled> HPET - HPET Support not been seen in Windows XP no matter <Enabled>*... -
Page 48: Fig. 32: Cpu Related Setting
EM PRO mini E Device Reference Manual – P – Revision 1 CPU Related setting Fig. 32: CPU related setting E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 49: Tab. 17: Cpu Related Setting
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled>* SVM support Enable/Disable SVM support <Enabled> Tab. 17: CPU Related setting E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 50: Fig. 33: Nuce Options
EM PRO mini E Device Reference Manual – P – Revision 1 NUCE options – Watchdog Fig. 33: NUCE options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 51: Tab. 18: Nuce Options
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled>* PIC Watchdog Enable/Disable the PIC watchdog <Enabled> Adjust value [30-254] Seconds before PIC watchdog times out. Watchdog Timeout (s) Default value [40] Range 30-254 seconds. -
Page 52: Fig. 34: Sio Sch3223
EM PRO mini E Device Reference Manual – P – Revision 1 SIO SCH3223 Fig. 34: SIO SCH3223 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 53: Tab. 19: Sio Sch3223
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description UART Port 1 Configuration No options UART Configuration UART Port 2 Configuration No options UART Configuration Tab. 19: SIO SCH3223 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs... -
Page 54: Fig. 35: Uart Port 1 Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 UART Port 1 Configuration Fig. 35: UART Port 1 Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 55: Tab. 20: Uart Port 1 Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description Configure UART Port using options: <Disabled> UART Port 1 [Disabled] Disable device <Enabled>* [Enabled] Enable device and use below settings <3F8h>* <2F8h> <3E8h> <2E8h>... -
Page 56: Fig. 36: Uart Port 2 Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 UART Port 2 Configuration Fig. 36: UART Port 2 Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 57: Tab. 21: Uart Port 2 Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description Configure UART Port using options: <Disabled> UART Port 2 [Disabled] Disable device <Enabled>* [Enabled] Enable device and use below settings <3F8h> <2F8h>* <3E8h> <2E8h>... -
Page 58: Security Menu
EM PRO mini E Device Reference Manual – P – Revision 1 Security Menu Fig. 37: Security Menu 1 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 59: Tab. 22: Security Menu
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Not Detected> Current TPM Device <TPM 1.2> Current TPM Device: TPM1.2, or TPM2.0. <TPM 2.0>* Install or Change the password and the length of... -
Page 60: Fig. 38: Storage Password Setup
EM PRO mini E Device Reference Manual – P – Revision 1 Storage Password Setup Page Fig. 38: Storage Password Setup E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 61: Tab. 23: Storage Password Setup
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <No Operation>* <Enable_BlockSIDFunc> Change BlockSID actions, includes enable or <Disable_BlockSIDFunc> disable BlockSID, Require or not require physical <PPRequiredForEnableBlockSID_True> TCG Storage Action presence when remote enable or disable <PPRequiredForEnableBlockSID_False>... -
Page 62: Power Menu
EM PRO mini E Device Reference Manual – P – Revision 1 Power Menu Fig. 39: Power Menu E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 63: Tab. 24: Power Menu
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled>* Auto wake on S5, By Day of Month or Fixed time of Auto Wake on S5 <By Every Day> every day <By Day of Month>... -
Page 64: Boot Menu
EM PRO mini E Device Reference Manual – P – Revision 1 Boot Menu Fig. 40: Boot Menu 1 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 65: Fig. 41: Boot Menu 2
EM PRO mini E Device Reference Manual – P – Revision 1 Fig. 41: Boot Menu 2 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... - Page 66 EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Dual Boot Type> Select boot type to Dual type, Legacy type or UEFI Boot Type <Legacy Boot Type> type <UEFI Boot Type>* Allows InsydeH2O to skip certain tests while <Enabled>*...
-
Page 67: Tab. 25: Boot Menu
EM PRO mini E Device Reference Manual – P – Revision 1 Determine EFI device first or legacy device first. If <Disabled> EFI Device First enable, it is EFI device first. If disable, it is Legacy <Enabled>* device first. <Enabled>*... -
Page 68: Fig. 42: Efi
EM PRO mini E Device Reference Manual – P – Revision 1 Fig. 42: EFI E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 69: Tab. 26: Efi
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description [ ]* Internal EFI Shell [ X ] Tab. 26: EFI E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 70: Amd Pbs Menu
EM PRO mini E Device Reference Manual – P – Revision 1 AMD PBS Menu Fig. 43: AMD PBS Option E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 71: Tab. 27: Amd Pbs Option
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description AMD Firmware Version No options Show all of AMD Firmware Version <Force PCIE> M.2 Key M SATA/PCIE Selection usage: SATA, M.2 Key M SATA/PCIE Selection <Force SATA>... -
Page 72: Fig. 44: Amd Firmware Version 1
EM PRO mini E Device Reference Manual – P – Revision 1 AMD Firmware Version Fig. 44: AMD Firmware Version 1 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 73: Fig. 45: Amd Firmware Version 2
EM PRO mini E Device Reference Manual – P – Revision 1 Fig. 45: AMD Firmware Version 2 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 74: Amd Cbs Menu
EM PRO mini E Device Reference Manual – P – Revision 1 AMD CBS Menu Fig. 46: AMD CBS E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 75: Tab. 28: Amd Cbs
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description CPU Common Options No options CPU Common Options NBIO Common Options No options NBIO Common Options FCH Common Options No options FCH Common Options Tab. -
Page 76: Fig. 47: Cpu Common Options
EM PRO mini E Device Reference Manual – P – Revision 1 CPU Common Options Fig. 47: CPU Common Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... - Page 77 EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled*> Core Performance Boost Disable CPB <Auto> Adjust value [50-100] CPU Thermal Throttling Temperature CPU Thermal Throttling Temperature Limit (50-100[°C]) Default value [100] E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs...
-
Page 78: Fig. 48: Nbio Common Options
EM PRO mini E Device Reference Manual – P – Revision 1 NBIO Common Options Fig. 48: NBIO Common Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 79: Tab. 29: Nbio Common Options
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description GFX Configuration No options GFX Configuration SMU Common Options No options SMU Common Options Tab. 29: NBIO Common Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs... -
Page 80: Fig. 49: Gfx Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 GFX Configuration Fig. 49: GFX Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 81: Tab. 30: Gfx Configuration
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Auto>* <iGPU Disabled> iGPU Configuration <UMA_SPECIFIED> UMA Mode <UMA_AUTO> <UMA_GAME_OPTIMIZED> <Legacy> UMA Legacy Version <Non-Legacy> UMA Version UMA Non Legacy Version <Hybrid Secure> Hybrid Secure <Auto>*... -
Page 82: Fig. 50:Smu Common Options
EM PRO mini E Device Reference Manual – P – Revision 1 SMU Common Options Fig. 50:SMU Common Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 83: Tab. 31: Smu Common Options
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description CPU and Auxiliary Fan Control No options CPU and Auxiliary Fan Control Warning: Select System Configuration may cause <15W POR Configuration> the system to hang, as some System Configuration System Configuration <18W POR Configuration>... -
Page 84: Fig. 51: Cpu And Auxiliary Fan Control
EM PRO mini E Device Reference Manual – P – Revision 1 CPU and Auxiliary Fan Control Fig. 51: CPU and Auxiliary Fan Control E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 85: Tab. 32: Cpu And Auxiliary Fan Control
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description User can set: <Optimized Cooling>* Optimized Cooling <Silent Mode> Silent Mode Less noise CPU Fan Control <Maximum Cooling> Maximum Cooling Always on <No Cooling>... -
Page 86: Fig. 52: Fch Common Options
EM PRO mini E Device Reference Manual – P – Revision 1 FCH Common Options Fig. 52: FCH Common Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 87: Tab. 33: Fch Common Options
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description USB Configuration Options No options USB Configuration Options Ac Power Loss Options No options Ac Power Loss Options Tab. 33: FCH Common Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs... -
Page 88: Fig. 53: Usb Configuration Options
EM PRO mini E Device Reference Manual – P – Revision 1 USB Configuration Options Fig. 53: USB Configuration Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 89: Tab. 34: Usb Configuration Options
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Enabled> XHCI0 controller enable <Disabled> Enable or disable USB3 controller. <Auto>* <Enabled> XHCI1 controller enable <Disabled> Enable or disable USB3 controller. <Auto>* Tab. 34: USB Configuration Options E.E.P.D. -
Page 90: Fig. 54: Ac Power Loss Options
EM PRO mini E Device Reference Manual – P – Revision 1 Ac Power Loss Options Fig. 54: Ac Power Loss Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 91: Tab. 35: Ac Power Loss Options
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description <Always Off> <Always On> Ac Loss Control <Reserved> Select Ac Loss Control Method <Previous>* <Auto> Tab. 35: Ac Power Loss Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs... -
Page 92: Exit Menu
EM PRO mini E Device Reference Manual – P – Revision 1 Exit Menu Fig. 55: Exit Menu E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 93: Tab. 36: Exit Menu
EM PRO mini E Device Reference Manual – P – Revision 1 BIOS Settings Options Description Exit Saving Changes Exit system setup and save your changes. Save Change Without Exit Save your changes and without exiting system. Exit Discarding Changes Exit system setup and without saving your changes. -
Page 94: Revision History
EM PRO mini E Device Reference Manual – P – Revision 1 Revision History Date Version Changes 17.05.2021 First release 29.07.2021 BIOS Update and some corrections 23.09.2021 Some corrections E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All rights reserved. | Rev.1.2... -
Page 95: Index Of Figures
EM PRO mini E Device Reference Manual – P – Revision 1 Fig. 29: USB Ports ..................41 Index of Figures Fig. 30: Chipset Configuration ..............43 Fig. 31: ACPI Table ..................45 Fig. 1: Type label ..................10 Fig. 32: CPU related setting ................47 Fig. -
Page 96: Index Of Tables
EM PRO mini E Device Reference Manual – P – Revision 1 Index of Tables Tab. 29: NBIO Common Options ..............78 Tab. 1: Options ....................8 Tab. 30: GFX Configuration ................80 Tab. 2: Accessories ..................9 Tab. 31: SMU Common Options ..............82 Tab. -
Page 97: List Of Abbreviations
EM PRO mini E Device Reference Manual – P – Revision 1 List of Abbreviations Alternating current APAC Asia Pacific and countries BIOS Basic input/output system Bluetooth Direct current DDR4 Fourth generation „double data rate“ memory technology Display port EMEA... - Page 98 EM PRO mini E Device Reference Manual – P – Revision 1 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © 2021 by E.E.P.D. GmbH. All right reserved. | Rev.1.2...
