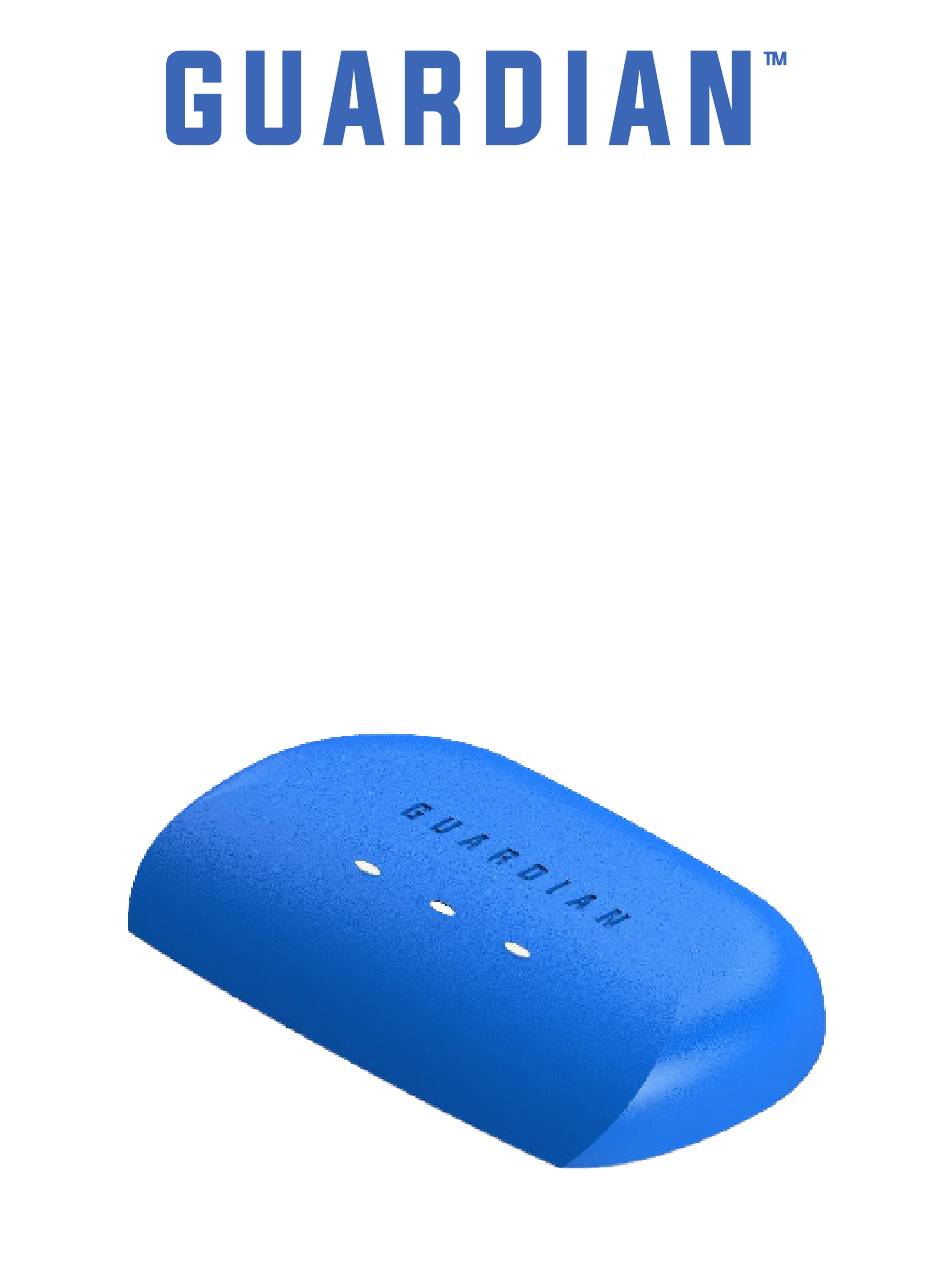

- Page 1 BY ELEXA Guardian Bridge GBR1 User Manual...
-
Page 2: Preface
Z-Wave standard (such as compatible Command Classes, Association Group capabilities, special features, and other information) that will help you maximize the utility of this product in your system. Guardian Bridge Advanced User Manual Page 2 Preface BY ELEXA... -
Page 3: Table Of Contents
Reset to Factory Default ................6 Physical Installation ..................7 LEDs Behavior .....................8 Button Behavior ...................9 Compatible Command Classes..............10 “Configuration” Command Class Parameters ..........12 Troubleshooting ..................13 Warranty & Support..................14 Guardian Bridge Advanced User Manual Page 3 Table of Contents BY ELEXA... -
Page 4: Description
Up to 500m (LoRa) Dimensions (L x W) Board: 119 x 60 mm Update Description Guardian Bridge device was developed to provide the Guardian product line compatibility with Z-Wave Network protocol. Guardian Bridge Advanced User Manual Page 4 Specifications BY ELEXA... -
Page 5: Inclusion & Exclusion
*For non Z-Wave Plus networks, please consult the owner’s manual for your primary controller to determine the best method/location for adding the Guardian Bridge to your Z-Wave network. A Security Enabled Z-Wave Controller must be used in order to fully utilize the product. Guardian Bridge Advanced User Manual Page 5 Inclusion & Exclusion BY ELEXA... -
Page 6: Reset To Factory Default
The Guardian Bridge memory will be erased to factory settings excluding all Associations. This procedure also sends a Device Reset Locally to AG01 - Lifeline notification. 4. The 1st LED will start blinking in 500ms. Guardian Bridge Advanced User Manual Page 6 Reset to Factory Default BY ELEXA... -
Page 7: Physical Installation
The Guardian Bridge can be plugged directly into a Micro USB power supply. Include the Guardian Bridge into your Z-Wave network and make sure it can communicate from the installation location before continuing further. Guardian Bridge Advanced User Manual Page 7 Physical Installation BY ELEXA... -
Page 8: Leds Behavior
Second LED LED is On Guardian Bridge is Powered On (Power) Third LED 3rd LED will flash every time that a LED Flashes (Guardian RF) Guardian RF transmission happens. Guardian Bridge Advanced User Manual Page 8 LEDs Behavior BY ELEXA... -
Page 9: Button Behavior
Leak Notification Association Group 02 This AG supports a Open/Close Basic Report This AG supports a Sensor Multilevel Report contain- Association Group 03 ing the Temperature information every 60 seconds Guardian Bridge Advanced User Manual Page 9 Button Behavior BY ELEXA... -
Page 10: Compatible Command Classes
Product Type: 01 02 Product ID: 03 04 COMMAND_CLASS_DEVICE_RESET_LOCALLY V1 (5A) COMMAND_CLASS_POWERLEVEL V1 (73) COMMAND_CLASS_SUPERVISION V1 (6C) COMMAND_CLASS_FIRMWARE_UPDATE_MD V4 (7A) COMMAND_CLASS_CONFIGURATION V1 (70) See ““Configuration” Command Class Parameters” Guardian Bridge Advanced User Manual Page 10 Compatible Command Classes BY ELEXA... - Page 11 Returned Value: 01 05 00 15 00 15 00 Z-Wave Plus Version: 01 Role Type: 05 COMMAND_CLASS_ZWAVE_PLUS INFO V2 (5E) Node Type: 00 Installer Icon Type: 15 00 User Icon Type: 15 00 Guardian Bridge Advanced User Manual Page 11 Compatible Command Classes BY ELEXA...
-
Page 12: Configuration" Command Class Parameters
Default Size Name Available Values Value This parameter sets the Temperature scale. Is possible to choose between Celsius and Farenheight. 00 - Farenheight Temperature Scale 01- Celsius Guardian Bridge Advanced User Manual Page 12 “Configuration” Command Class Parameters BY ELEXA... -
Page 13: Troubleshooting
Troubleshooting : A Under Development Guardian Bridge Advanced User Manual Page 13 Troubleshooting BY ELEXA... -
Page 14: Warranty & Support
ECP, the Product must be sent freight pre-paid broken part or are having difficulty with it please contact to the following address: Elexa as listed above for a quick and efficient solution to the problem. Elexa Consumer Products, c/o Promac, Legal Notices: This device complies with part 15 of the FCC 1153 Timber Dr., Elgin, IL 60123...
