HMI HOYME ADP-1102-S5A Installation Instructions

Installation Instructions for
Interlocks 24Vac Combustion Air Control Damper
INSTALLATION OF THIS ADAPTOR SHALL BE
IN ACCORDANCE WITH REQUIREMENTS OF
THE AUTHORITIES HAVING JURISDICTION.
Refer also to HMI HOYME Installation Instructions:
'Combustion Air Control, Series HOM'.

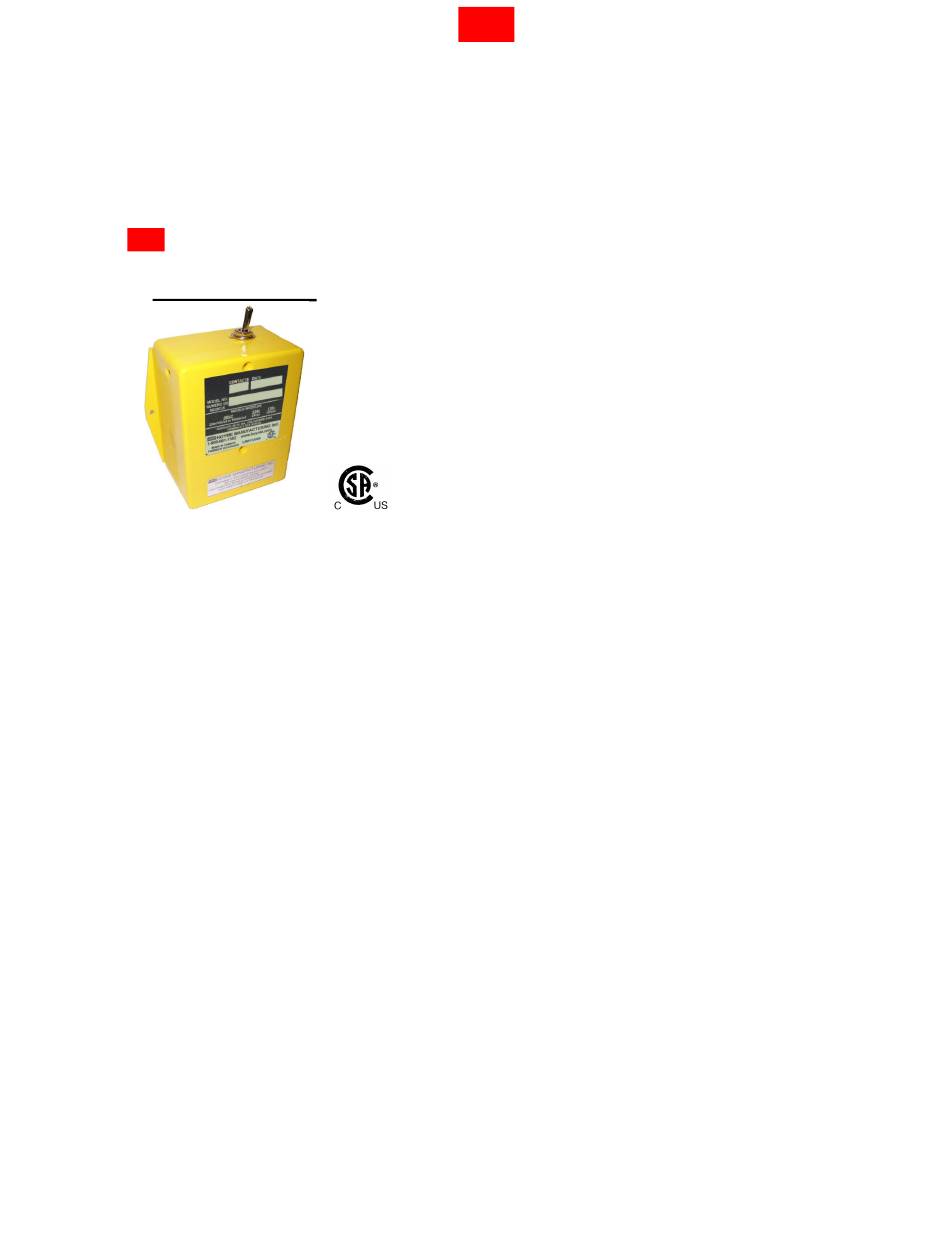

ADP-1102-S5A
4" x 5" x 2 1/2"
101 x 127 x 64 mm
This Adaptor, with two relays, senses a line
voltage stat, proves a 24Vac damper to be open
and then sends a signal back to line stat circuit for
firing. For 250mVdc – 100Vdc refer to Installation
Instruction for ADP- 0MV2-S5A.
I.D.: ADP- 1102 – S5A; Includes-
- Relay: DPDT Coil-120Vac Contacts-24Vac
- Relay: SPDT Coil-24Vac Contacts-120Vac,
5 Amps
- TEST/RUN manual Switch.
- For one appliance, use one Adaptor and one
Damper, Series HOM, Type-SF1.
- For two appliances, use two Adaptors and
one damper, Series HOM, Type-SF1.
- Adaptors may be mounted on side of
appliance control box. Leads must be
suitably cabled and fastened. Refer to local
electric codes.
1207-ch
To 120Vac Safety Control Circuit
HMI HOYME ADP-1102-S5A
-Use an approved 24Vac transformer of
adequate capacity (10 VA min.) if required.
- Supply for the transformer primary shall be
taken from the line voltage supply for the
appliance. Refer to applicable codes.
- Always conduct a thorough checkout after
installation is complete.
- Affix attached wiring diagram label adjacent
to appliance wiring diagram label.
1. Turn temperature control to lowest setting.
2. Turn off electrical power to heating
appliance.
3. Disconnect line voltage burner lead form
terminal B1 on line voltage control. See wiring
Diagram.
4. Connect Adaptor BLACK lead to terminal B1
on line voltage control. ( Sensor)
5. Using screw-on wire connector, join Adaptor
RED lead to burner wire normally connected to
terminal B1 of line voltage control. (Signal)
6. Connect Adaptor WHITE lead to terminal B2
of line voltage control.
7. Connect damper wires BLACK (1), RED (2),
BROWN (3) and BLUE (5) to Adaptor terminals
1, 2, 3 and 4 respectively. Note: Adaptor c/w
'TEST/RUN' manual switch. When using two
Adaptors for two appliances connected to one
damper, Adaptor terminals 1,2, 3 and 4 may be
connected to like terminals of the other Adaptor.
8. Connect 24Vac continuous supply to Adaptor
terminals 3 and 5.
9. Turn on electrical power supply. Damper will
close. Note: 'TEST/RUN' manual switch shall be
in the 'RUN' position.
10. Turn temperature control to call for heat.
Damper will open and heating appliance will
operate normally.
