QUICK START GUIDE
4 x DVB-S/S2/T/T2/C to 4 x DVB-T/C
FTA Regenerating Headend - KRH100

1. Introduction

Congratulations on purchasing the KRH100. You now own
a high quality, professional mini DTV headend.
To get the most out of your purchase, please take the time
to carefully read through this quick start guide.

2. Product Details

DESCRIPTION:

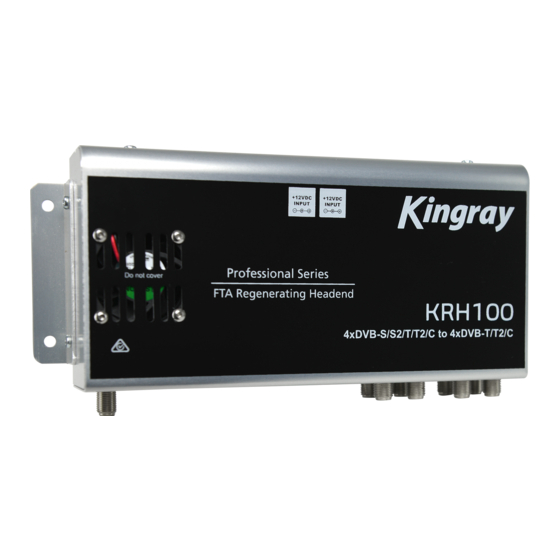

The KRH100 is a very powerful, all-in-one mini headend
device, able to receive up to 4 independent satellite
(DVB-S/S2), terrestrial (DVB-T/T2) or cable (DVB-C) signals
and convert them either in 4 x DVB-T/C RF output channels.
It supports "pool" technology, meaning that the user
is able to select any program from any of the 4 inputs
and assign them to any of the 4 outputs providing great
flexibility.
The embedded web server of the KRH100 provides a very
friendly user interface as well as the ability of remote or
local control of the device via LAN.
Its small size and its powerful features render the KRH100
the ideal solution in case you want to distribute FTA
(Free-To-Air) TV programs coming from satellite (DVB-S/S2),
terrestrial (DVB-T/T2) or cable (DVB-C) sources to a CATV
installation using the DVB-T/C.
FEATURES:
• 4 x independent multi-standard inputs DVB-S/S2/T/T2/C
• 1 x RF output containing up to 4 x DVB-T/C channels
(software selectable)
• "Pool" technology
• MER value > 42dB
• PID filtering
• Redundancy mode compatible
• Custom NIT/SDT
• Local or remote control via webserver
• User friendly interface
• Wall or rack mount options
• SNMP v2
• Ultra-compact in size
• 5 Year Warranty (KRH100) & 3 Year Warranty (Power
Supply)

3. Installation

The KRH100 has a user friendly interface for programming
and monitoring purposes.
The user is able to gain access to the embedded webserver,
by opening an Internet browser (e.g. Internet Explorer,
Firefox or Chrome) that supports HTML 5.0 and type the
following static IP: 192.168.1.205.
The default username and password are as follows:
Username: admin
Password: 12345
Quick Setup - For pass through of all channels /
parameters only.
STEP 1 -
1. Select "Regional settings" from the side bar.
2. From the "Please select your region" drop down list,
select Australia.
STEP 2 -
1. Select "Input" from the side bar. It will automatically
default to INPUT 1 for programming.
2. From the "Tuner" drop down list, select DVB-T/T2
3. From the "Channel" drop down list, select your
desired channel, i.e. 6.
4. Click "Apply" & the click "Yes, apply" to save.
5. Select "Input 2".
6. Repeat points 2, 3, & 4. Then repeat this process for
Input 3 & 4 as required.
STEP 3 -
1. Select "TS configuration" from the side bar.
2. Click the grey box for each input you have
programmed. This will allow all channels/parameters
to pass through unconditionally.
3. Click "Apply" & the click "Yes, apply" to save.
STEP 4 -
1. Select "RF output" from the side bar.
2. For Output 1, from the "Channel" drop down
list, select the desired output channel, i.e. 6. The
remaining outputs will automatically populate.
3. Click "Apply" to save.
4. If required, adjust the RF outputs level from the
output level section below.
5. Click "Apply output levels" to save.
The headend installation is now complete.

4. More Information

You can download the full manual at www.kingray.net.au
