Green Panther GP-3TFF User Manual

Mini mist fogger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

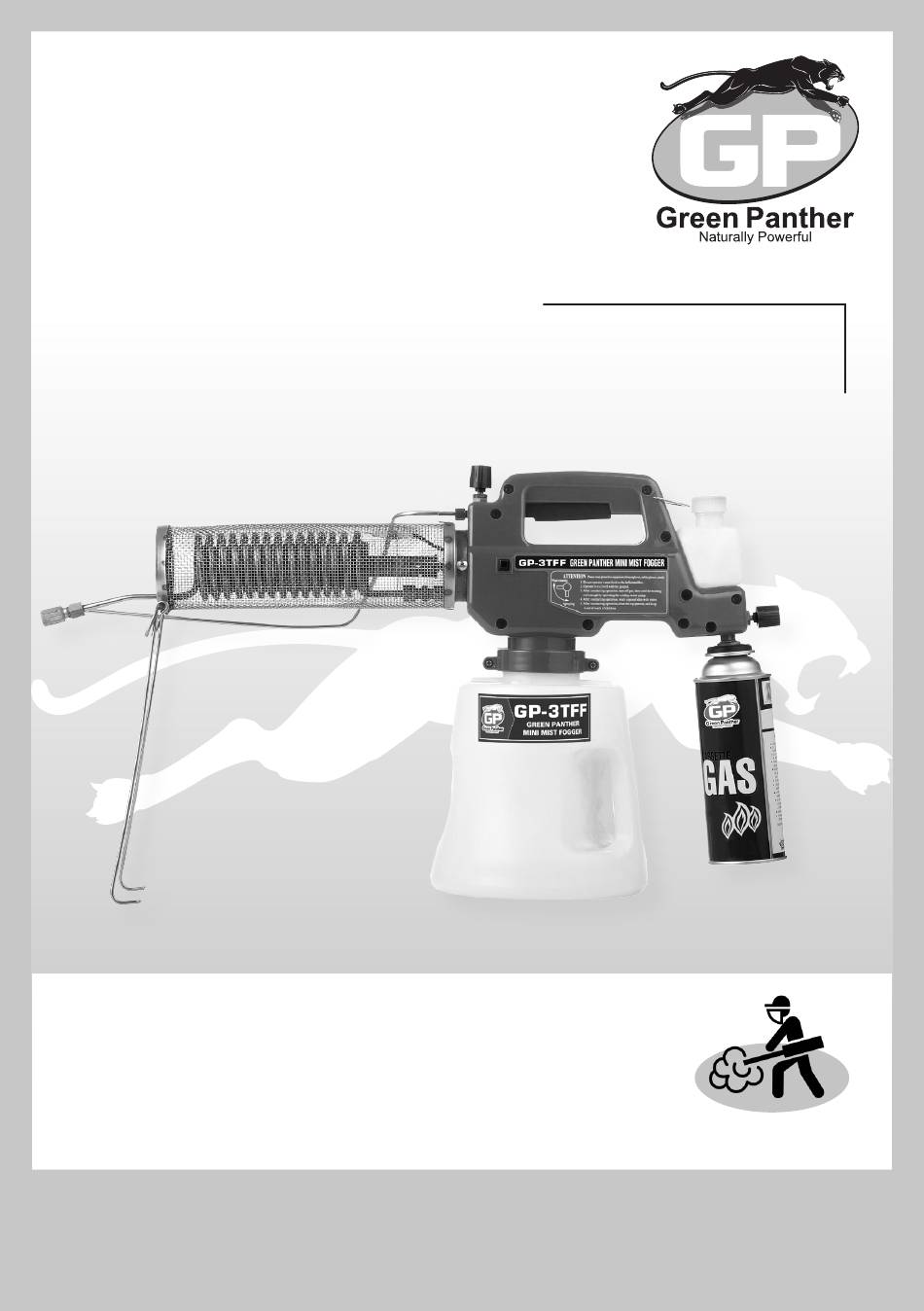

GP-3TFF
Mini Mist Fogger
USER MANUAL
Professional Fogger
Note: Please read the following instructions before use. This book contains important information on SAFETY, ASSEMBLY, OPERATION
& DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP-3TFF and is the answer not in the manual?

Questions and answers

Summary of Contents for Green Panther GP-3TFF

  • Page 1 GP-3TFF Mini Mist Fogger USER MANUAL Professional Fogger Note: Please read the following instructions before use. This book contains important information on SAFETY, ASSEMBLY, OPERATION & DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE...

  • Page 2: Safety Precautions

    1. SAFETY PRECAUTIONS 1) Always wear protective clothing when using the machine. (mask, gloves, long sleeves and etc.) 2) Do not use this machine in enclosed room or the places where foods or inflammables exist. 3) Do not spray directly to people or animals. 4) Do not use this machine in strong wind weather.
  • Page 3 ATTENTIONS 1) This product has separated chemical tank and water/diesel tank. Do not put other materials into water tank except water, diesel and dispersing agent. Agricultural chemicals, pesticides and disinfectants should be put into the chemical tank. The coil would be clogged if chemicals are mixed in the water tank according to the usual method.

  • Page 4: Part Names

    3. PART NAMES Nozzle Chemical pipe Coil Protection shield Chemical control knob Pump handle Chemical tank Gas control knob Gas container Water tank Burner Ignition switch...

  • Page 5: Operation Directions

    4. OPERATION DIRECTIONS WATER TANK Put diesel or water or water + dispersing agent into water tank. Put diesel for fogging, and put water or water + dispersing agent for misting. Except diesel, water and dispersing agent, do not put other liquids into water tank.
  • Page 6 capacity of chemical tank is 350ml. Please do not overfill. Close the lid of the chemical tank. Overuse of chemicals may cause dizziness, headache, nausea and vomiting. Do not put water into the chemical tank if there is an object which is apt to rust in work place.
  • Page 7 SPRAYING APPLICATION After preheating, open the chemical control valve by turning the knob counterclockwise, repeat pushing and releasing the pump handle to start spray (misting or fogging). Spray to the plant or object away from about 1-2 meters. When used as misting, open the gas valve more if the particle size is large, or close it a little if the particle size is small.

  • Page 8: Shoulder Strap

    STOP WORK Stop pumping of the handle. After the spray stopped completely, turn off the gas control valve (clockwise) . Turn off the chemical control valve (clockwise) completely. Repeat pushing the pump handle at least 5 times to spray out the undiluted chemical while the coil cools down.

  • Page 9: Specification

    5.SPECIFICATION Name Mini Mist Fogger Model GP 3TFF Dimension (L x W x H) 630x190x365mm Net weight 2.0Kg Fuel Liquid butane gas Fuel consumption 1EA / 30min Starting method Press the ignition switch Ignition system Piezoelectric ceramic ignitor Water tank Diesel (Capacity 2.0L) Mist...
  • Page 10 6. ADVANTAGES OF THIS NEW TYPE FOGGING MACHINE This machine has separated spray coil and chemical pipe. There is no carbonization of chemicals and so it does not have problem of clogging in the coil. It is not necessary to keep the water tank and equipment separately to prevent corrosion of the pump, because it has separated chemical tank and water tank.
  • Page 11 1st Free Service Coupon ISO 9001-2015 CERTIFIED COMPANY FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier) Model Serial Number GP-3TFF MINI MIST FOGGER PDI Date Service No. Purchase bill no. Date Dealer’s Office Seal & Signature Customer Signature.........
  • Page 12 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
  • Page 13 Warranty Card CUSTOMER COPY Purchaser’s Name & Address Date of Delivery Dealer’s Office Seal Product Name GP-3TFF MINI MIST FOGGER Product Serial No. Dealer Sign Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
  • Page 14 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
  • Page 15 Do’s Don’ts • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
  • Page 16 IMPORTERS & DISTRIBUTORS RATNAGIRI IMPEX PVT LTD Annapurna House, #1/1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore-560 026 Customer Care: 1800-425-3036 email: info@ratnagiriimpex.com www.ratnagiriimpex.com AN ISO 9001:2015 CERTIFIED COMPANY...
