Industrial Sole Cleaning Devices
Solamat 400
/ Art.-No. 065-4000 (dry)
Solamat 450
/ Art.-No. 065-4500 (dry with suction)
Solamat 500
/ Art.-No. 065-5000 (wet)
Operating instructions
Power supply:
All machines will be delivered „ready for use" with a standardized power connector. Please make sure
that the power specification on the rating plate is consistent with your actual power supply (110 volt
or 230 volt).
Installation and putting into operation:
The location needs to be roofed over and frost-proof in order to protect the machine and its electricity.
For a secure stand the ground should be plane; rubber stripes may be used for levelling.
After removal of packaging and protection provide for the aforementioned placement as well as power
supply and the Solamat cleaning device will be ready for use.
Solamat 450 should be connected to the industrial vacuum cleaner which is available optionally. To
do so, attach suction hose to the Solamat 450 and cleaner and put he power cord of the Solamat 450 in
the power supply of the industrial vacuum cleaner. The cleaner itself will have to be connected to the
mains and provides power to the Solamat 450 automatically.

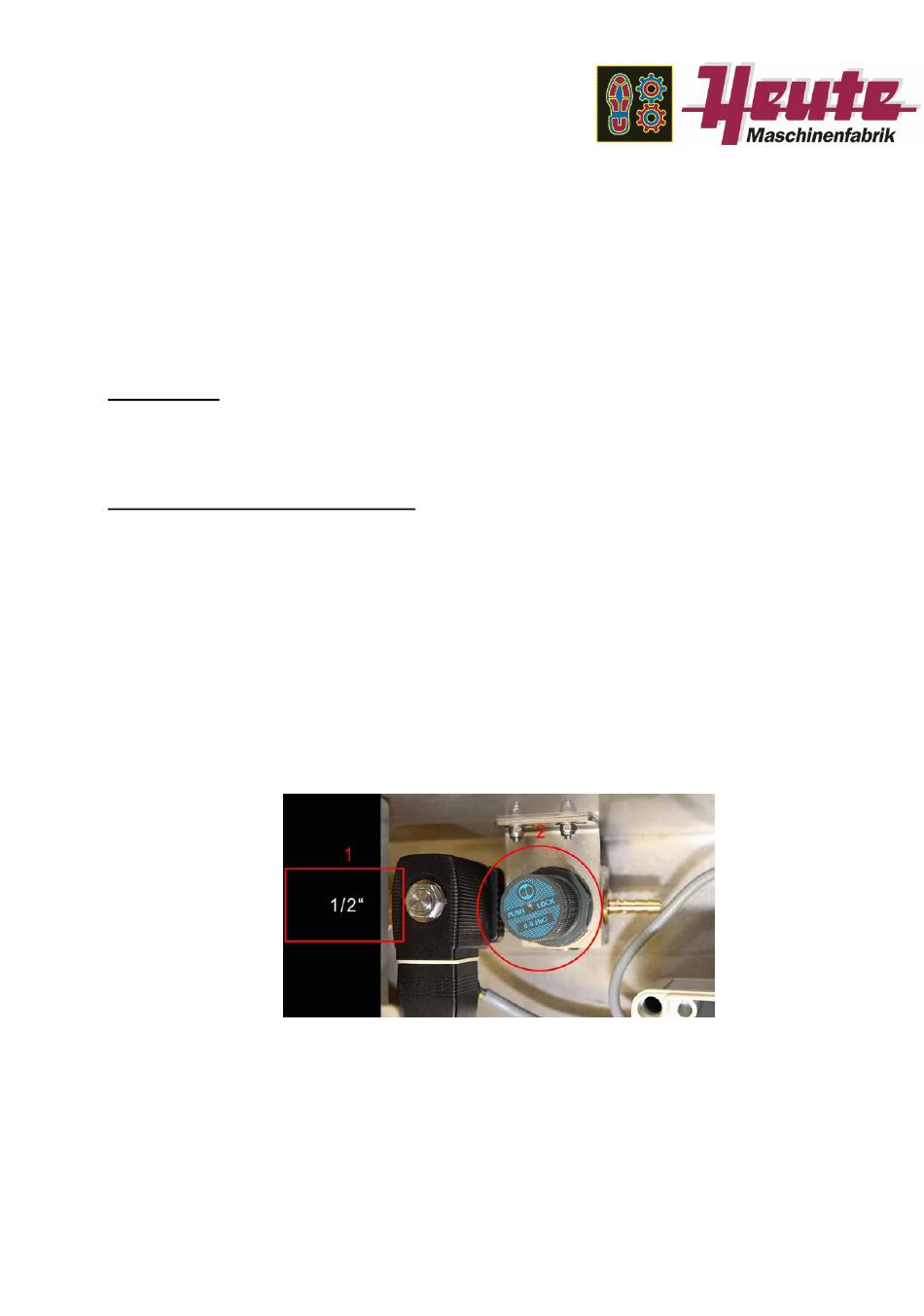

For Solamat 500 please screw the drip-off grate to the main cleaning device and attach an ½" water
supply to the adapter (1 in picture 1) which leads to the magnetic valve.
A pressure of 3 to 5 bar can be applied to the water supply. The freshwater discharge can be regulated
by means of the dial on the magnetic valve (2 in picture 1).
Furthermore, a cleaning medium can be fed additionally with the 6 mm Ø hose (1 in picture 2 – 2
feeds the cleaning medium to the brushes inside the machine). The throughput of this additional
cleaning medium can be adjusted as well.
Picture 1
- 1 -
State: 2008/11
Advertisement
Table of Contents
Related Manuals for HEUTE Solamat 400
Summary of Contents for HEUTE Solamat 400
- Page 1 Industrial Sole Cleaning Devices Solamat 400 / Art.-No. 065-4000 (dry) Solamat 450 / Art.-No. 065-4500 (dry with suction) Solamat 500 / Art.-No. 065-5000 (wet) Operating instructions State: 2008/11 Power supply: All machines will be delivered „ready for use“ with a standardized power connector. Please make sure that the power specification on the rating plate is consistent with your actual power supply (110 volt or 230 volt).
- Page 2 Picture 2 Picture 3 Having removed the steel cover (red in picture 3), the stablizier bridge (green in picture 3) and the protective cap of the feeding pump the feeding amount of the pump can be adjusted from 0,15 bis 4,5 l/h with the regulator marked in picture 4.
- Page 3 Picture 5 Sole cleaning: The machines start automatically by means of an optical sensor, which is located in the handrail (see picture 6). Picture 6 The Solamat 450 automatically starts the suction and filter mechanism. When Solamat 500 starts, its magnetic valve automatically provides water feed and the dosing pump adds optional cleaning medium to the brushes at the same time.
- Page 4 Cleaning intervals depend on degree of utilization. When soiled heavily clean the device on the inside as well as outsides. Solamat 400 has a drawer underneath its brushes which should be cleaned regularly – cf. picture 8. Picture 8 The industrial vacuum cleaner for the Solamat 450 has a filter which should be cleaned or exchanged periodically.
- Page 5 For (dry) models Solamat 400 + 450 you can now loosen the 2 grub screws at the brush fixing element (c.f. picture 11) and remove this head from the axle. The brushes can now be pulled off easily.
- Page 6 With Solamat 500 the entire brush holder unit incl. axles (c.f. picture 12) will have to be removed because the liquid bin does not allow taking off the brushes sideways as described for the dry models Solamat 400 & 450. Picture 12 First remove the belt from the 4 pulleys, next detach and remove plain bearing holder as described before but additionally remove the 5 screws of the element shown in picture 13.
- Page 7 Spare parts: Please note down the machine number as well as date of production (c.f. label) and if possible let us know the HEUTE article numbers for the spare parts you want to order. Guarantee: We warrant our products to be free of manufacturing and material faults. Warranty extends to 1 year months on electrical components and to 2 years on metal components, commencing in each case on the day of dispatch from the supplier’s premises or depot.
