Summary of Contents for GRUPO MCI SLIM GROUND LINER

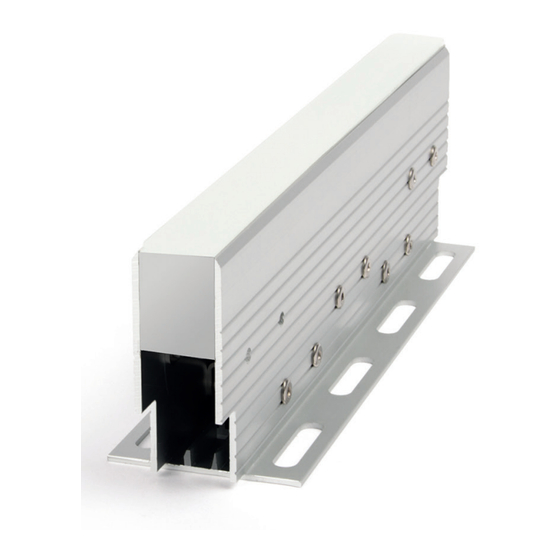

- Page 1 ® SLIM GROUND LINER Manual Instalación Installation Instructions...
- Page 3 SLIM GROUND LINER® INDICACIONES INDICATIONS LEER ANTES DE INSTALAR EL PRODUCTO! READ BEFORE INSTALLING THE PRODUCT! Nunca utilizar el producto como junta de dilatación del hormigón. Never use the product as concrete expansion joint. Hay que tener en consideración las dilataciones del hormigón.
-
Page 4: Instalación
SLIM GROUND LINER® INSTALACIÓN INSTALLATION Colocar para evitar entrada de suciedad Place it to avoid entrance of dirt NO INCLUIDA - NOT INCLUDED SGL.IMT-171.v2. - Page 5 SLIM GROUND LINER® INSTALACIÓN INSTALLATION SGL.IMT-171.v2.
- Page 6 SLIM GROUND LINER® INSTALACIÓN INSTALLATION Verter el hormigon alrededor de las luminarias Pour the concrete carefully around the luminaires Retirar tapa Remove cover SGL.IMT-171.v2.
- Page 7 SLIM GROUND LINER® INSTALACIÓN INSTALLATION Detalle hormigonado Concrete detail DRENAJE MÍNIMO MINIMUM DRAINAGE HORMIGONAR 5mm POR ENCIMA DEL CAJETÍN FILL UP WITH CONCRETE UP TO 5mm OVER THE BOX LEVEL Posición luminaria Luminaire position Colocación luminaria Luminaire place SGL.IMT-171.v2.
- Page 8 SLIM GROUND LINER® INSTALACIÓN INSTALLATION Una vez colocada la luminaria, sellar los laterales con POLIURETANO BOSTIK para aplicaciones de EXTERIOR Once the luminaire has been placed, the lateral sides must be sealed with BOSTIK POLIURETANE for OUTDOOR applications SGL.IMT-171.v2.
- Page 9 SLIM GROUND LINER® INSTALACIÓN INSTALLATION SGL.IMT-171.v2.
- Page 10 PSU 24 V DC - 320W. connected to Lineardrive 720 (PSU 24 V DC - 320W). Maximum 5 m from the power supply to the first Slim Ground Liner ® Maximum 5 m from the power supply to the first Slim Ground Liner ®...
- Page 11 SLIM GROUND LINER® CONEXIONES MONOCOLOR MONOCOLOR CONNECTIONS Lineardrive 720D DMX/DALI/0-10V 24V DC Lineardrive 720D DMX/DALI/0-10V 24V DC M050206 M050206 Power Supply Power Supply 24 V DC 320 W 24 V DC 320 W Group 1 Group 1 GND 1 GND 1...
- Page 12 (12 Slim Ground Liner RGB 1000 mm) ® connected to Lineardrive 720 (PSU 24 V DC - 320W). Maximum 5 m from the power supply to the first Slim Ground Liner ® RGB 1000 mm. Follow connection diagram type C for DALI installations.
- Page 13 SLIM GROUND LINER® CONEXIONES RGB RGB CONNECTIONS Lineardrive 720D DMX/DALI/0-10V 24V DC max. 4uds x 1m max. 4uds x 1m max. 4uds x 1m M050206 Power Supply 24 V DC 320 W Group 1 GND 1 Dali IN Group 2...
-
Page 14: Safety Precautions
SLIM GROUND LINER® PRECAUCIONES SAFETY PRECAUTIONS Empleo según normativas Este producto sirve únicamente para iluminación y no debe: • Exponerse a exigencias mecánicas excesivas o fuertes suciedades. • Después de un almacenamiento húmedo o contaminante, no utilizar sin previa verificación. - Page 15 SLIM GROUND LINER® PRECAUCIONES SAFETY PRECAUTIONS Use as directed This product serves exclusively lighting purposes and may: • Expose to strong mechanical loads or strong contamination. • Only be installed and operated after a condition inspection if the product is dirty or has been moistened through storage.
- Page 16 Slim Ground Liner® IMT-171 v.02 CENTRAL Y FÁBRICA / HEADQUARTERS BARCELONA C/ dels Oficis, 25. Polígono el Regàs. 08850 Gavà (BARCELONA) SPAIN Tel. (+34) 93 630 28 00 Fax. (+34) 93 630 29 66 www.grupo-mci.com e-mail. grupo-mci@grupo-mci.com...
