Summary of Contents for TRNDlabs AIRWALKS

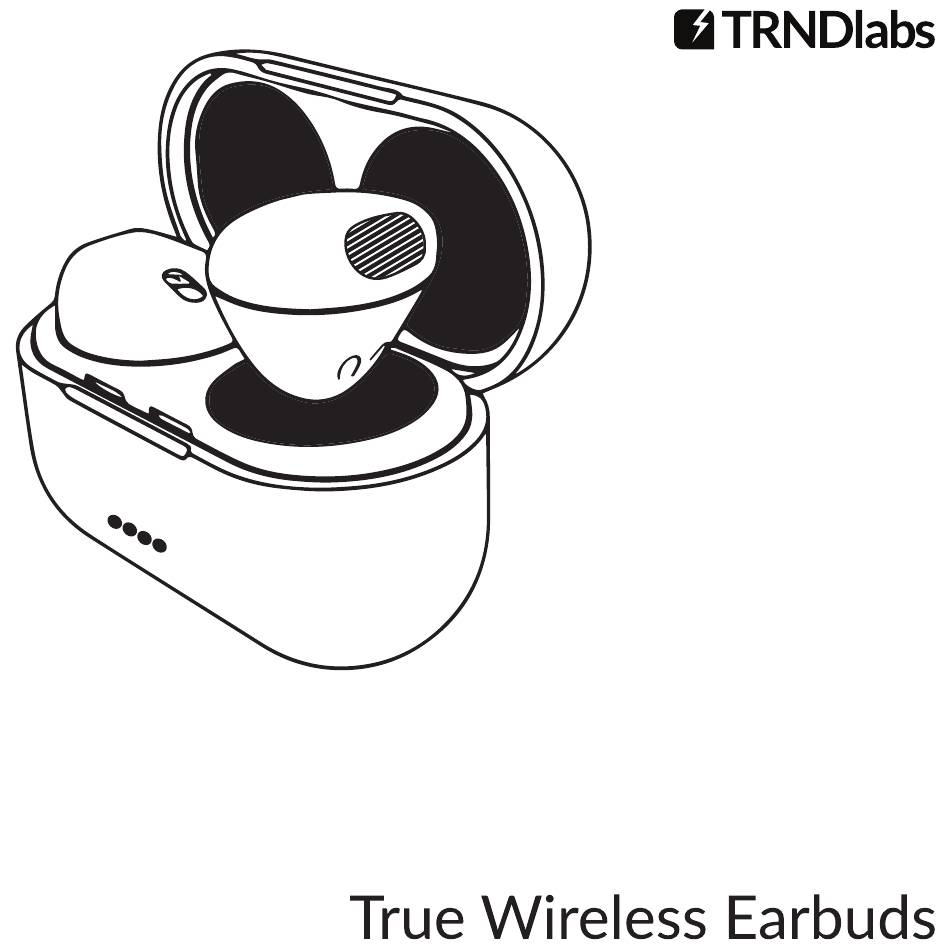

- Page 1 USER GUIDE AIRWALKS...
- Page 2 WWW.TRNDLABS.COM...
- Page 3 Thank you for purchasing AIRWALKS True Wireless Earbuds and welcome to the world of TRNDlabs products. AIRWALKS is a pair of Bluetooth-connected Earbuds with its own charging case, giving you the freedom to take your music anywhere in an elegant...
-
Page 4: Table Of Contents
Table of Contents Parts Identification Functions Setup and Charging Turning AIRWALKS ON & OFF Connecting Specifications Troubleshooting Safety Information... -
Page 5: Parts Identification
Parts Identification USB to Micro USB Charging Cable AIRWALKS True Wireless Earbuds AIRWALKS Charging Case Ear Hooks... -
Page 6: Functions
Functions Play/Pause a track - Single Press Redial - Double Press Take/End call - Single Press Power OFF - Hold for 5 seconds Earbud LED Light... - Page 7 Charging Docks LED Lights USB Charging Port...
-
Page 8: Setup And Charging
Setup and Charging BEFORE YOU USE AIRWALKS FOR THE FIRST TIME Place your AIRWALKS True Wireless Earbuds into the Charging Case and make sure they sit comfortably in the magnetic Charging Dock. Connect the Charging Case to a computer or a power source via the Micro-USB Cable. - Page 10 CHARGING AIRWALKS TRUE WIRELESS EARBUDS Place your Earbuds into the Charging Case and make sure they sit comfortably in the magnetic Charging Docks. A red LED light will light up on each Earbud to indicate that the Earbuds are charging.
- Page 12 CHARGING YOUR AIRWALKS CHARGING CASE Connect the Charging Case to a computer or power source via the Micro-USB Cable. The LEDs on the Charging Case will flash blue to indicate that the Charging Case is charging. It is fully charged when all 4 LEDs on the Charging Case are lit.
-
Page 14: Turning Airwalks On & Off
After 1-8 seconds the Earbuds will establish a connection with eachother. Next, the LEDs of the Master Earbud will flash blue and red, this means AIRWALKS is attempting to establish a connection with your Bluetooth device. The LED on the Second Earbud will turn off. -
Page 15: Connecting
Connecting SETUP THE EARBUDS CONNECTION You have to reset the connection between the Earbuds if they fail to pair. In this case, simply follow these steps: Make sure both Earbuds are switched off. Press and hold both Earbuds control button for 5 seconds until the Earbuds LEDs flash in red and blue. - Page 16 Bluetooth to connect to your device. After turning on both Earbuds (as explained in the chapter ‘Turning AIRWALKS On and Off’ on page 14), pair your device with “AIRWALKS” via your device’s Bluetooth settings page. The LED on the Master Earbud will stop flashing, and your AIRWALKS True Wire- less Earbuds are now ready to use.
-
Page 17: Specifications
Specifications Bluetooth version: Bluetooth 5.0 Operating distance: Up to 33 feet (10 meters) Frequency: 20Hz – 20kHz Music playtime: Up to 4 hours Talk time: Up to 4 hours Maximum playtime with Charging Case: Additional 10 hours Battery capacity: 50 mAh (Earbuds), 200 mAh (Charging Case) Dimensions: 15.4 x 14.5 x 15.0 mm (Earbud) Weight: 4.2 grams (Earbud), 65 grams (Charging Case) -
Page 18: Troubleshooting
Troubleshooting Problem: No connection between AIRWALKS and your Bluetooth device. Solution: • Make sure AIRWALKS is fully charged and switched • Check that your device is available and supports the A2DP Bluetooth Profile. • Move AIRWALKS closer to your device. - Page 19 Note: to avoid damage to your ears, do not wear the Earbuds during this process. Problem: When turning both Earbuds on, one (or both of the Earbuds) does not work. Solution: • Reset the Earbuds connection as explained in the chapter “Connecting”...
-
Page 20: Safety Information
Safety information • Do not attempt to charge AIRWALKS by any means other than a USB charger, power bank or computer. • Do not modify or disassemble the battery. • Do not dismantle or modify AIRWALKS in any way. •... - Page 21 These issues may cause leakage, heat, smoke or ignition of AIRWALKS. • AIRWALKS is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities (or lack of experience and knowledge) unless they have been given supervision or instructions concerning the use of AIRWALKS by a person responsible for their safety.
- Page 23 The contents of this document are subject to change. Download the latest version from www.trndlabs.com. If you have any questions about this document, please contact TRNDlabs by sending a message to hello@trndlabs.com. © 2020 TRNDlabs. All rights reserved.
- Page 24 3031/2/EN...
