TRNDlabs Franklin User Manual

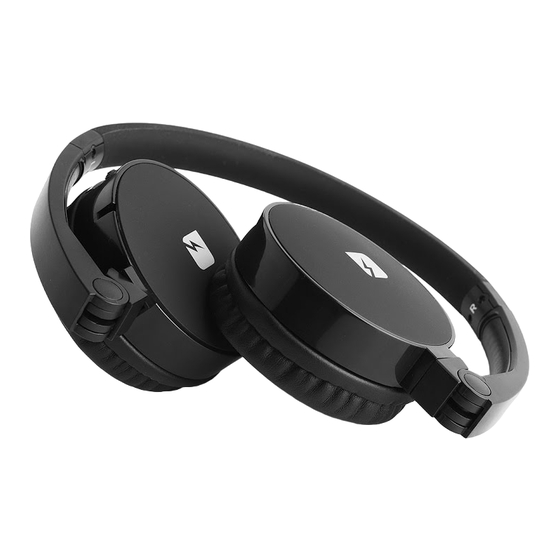

Franklin Wireless Headphones
Thank you for purchasing Franklin Wireless Headphones and welcome to the world of
TRNDlabs products.
Franklin is an elegant foldable wireless pair of headphones which gives you the freedom to take
your music everywhere you go.
Foldable
The foldable design gives you the
ultimate packing privilege while you
are on the run.
Make Calls
While listening to music, Franklin
notifies you of incoming calls which
you can pick up on the go supported by
Franklin's build-in microphone.
Package Content
Franklin
Headphones
Charging
USB Cable
Headphones Function
Blue LED-light indicating activity.
1
Multi-Functional Wheel.
2
USB Charging port.
3
Red LED-light indicating charging.
4
Built-in Microphone.
5
Pairing with Bluetooth Device
Press the Multi-Functional Wheel's centre
1
position for 5 seconds. The blue LED-light
indicating activity will start to blink.
Enable bluetooth on your device and
2
select scan/search for devices.
Select 'Franklin' in the list of devices.
3
Your device will now connect with
4
your Franklin.
After successfully pairing your devices,
5
the blue LED-light indicating activity will
start to blink every 2 seconds.
Carry Bag
Standby
The battery of Franklin lasts at least
175 hours in standby mode and
16 hours with non-stop play.
Bluetooth
Franklin connects via bluetooth to your
mobile device to give you the ultimate
wireless headphones experience.
Charging
To charge your Franklin, plug the charging
1
cable into the USB port of your Franklin.
Plug the other end into a USB charging
2
port of your power source or computer.
The red LED-light will indicate that your
3
Franklin is charging.
When your Franklin is fully charged,
4
the red LED-light will turn off.
1
Operation Instructions
2
3
4
5
Volume + / Next
Power ON
Power OFF
Play / Pause
Answer Calls
End Calls
Reject Calls
Volume - / Previous
1
2
3
4
