Temperature Controller
ECS-180neo
1.PRODUCT APPLICATION DESCRIPTION
ECS-180 neo temperature controller could be used in the middle and low
temperature medicine cabinet, kitchen cabinet, supermarket split cabinet, air
curtain cabinet, island counter, wine cabinet, etc.
The controller adopts building block design concept and users could select def rost,
fan, light/external alarm according to their demand.
The function of evaporator sensor, condenser sensor, door switch and buzzer is
optional.
Refrigeration relay output could reach to 30A/240VAC, which could directly drive single-
phase 1.5Hp compressor.

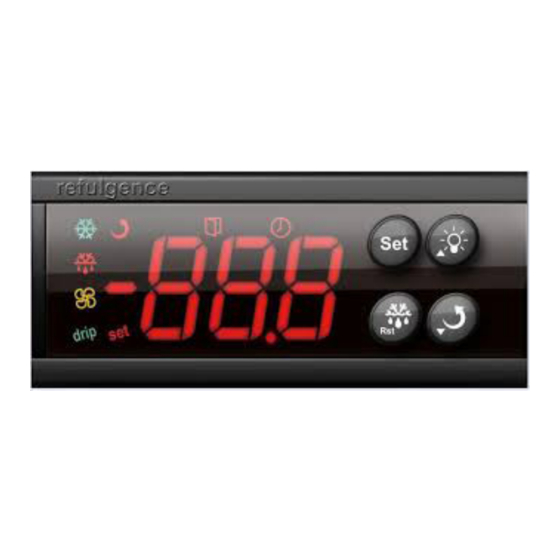

2. INDICATOR LIGHT STATUS DESCRIPTION
Indicator light
Symbol
Setting
Ref rigeration
Def rost
Fan
Def rost dripping
Dor switch
3. PARAMETER LIST
Menu Functions
Common user menu
St
Temperature set value
Po
Administrator menu Password 00 ~ 99
Administrator's menu
C1
Hysteresis value
C2
Compressor start Min. interval
C3
Compressor initial start Min.
interval
C4
Cabinet sensor calibration
C5
Temperature set lower limit
C6
Temperature set upper limit
C7
Max standby time after
finishing compressor start
Min. interval
C8
Ref rigeration Min. running
time
d1
Evaporator sensor selection
d1
Evaporator sensor calibration
1 Ivybrook Blvd, Unit 145R, Ivyland, PA 18974, USA
Tel: 1-800-796-2344 / Fax: 732 879 0248
Status
Meaning
ON
Parameter setting
Set
Status of temperature
OFF
measuring and controlling
ON
Refrigeration work
Flash
Refrigeration stop
ON
Refrigeration time delay
OFF
Def rost work
ON
Def rost stop
OFF
Fan work
ON
Fan stop
drip
OFF
Start def rost dripping
ON
Cabinet door open
OFF
Cabinet door close
Setting range
Upper limit ~ Lower Limit
(password is 55 unmodified)
0.5 °C ~ 9 °C / 1 °F ~ 20 °F
0 ~ 60
0 ~ 90
-10 °C ~ 10 °C / -20 °F ~ 20 °F
-50 °C ~ temperature set value -2 °C
-58 °F ~ temperature set value
temperature set value ~ 85 °C
-temperature set value ~ 185 °F
00 ~ 99
0: Max.standby time
calculation is forbidden
00 ~ 99
0: Refrigeration Min. running
time calculation is forbiden
0: Disabled / 1: Enabled
-10 °C ~ 10 °C / -20 °F ~ 20 °F
Operation and display panel
Default Unit
4 °C
°C/°F
4 °C
°C/°F
4 °C
°C/°F
5
min
5
min
0.0 °C
°C/°F
°C/°F
22 °C
°C/°F
9
min
0
min
1
-
0.0 °C
°C/°F
U S E R M AN UAL
A E G I S
F R I D G E
W W W.
.CO M
