ASFCAM2
OUTDOOR IP CAMERA
General Introduction
The ASFCAM2 is an outdoor bullet IP camera suitable for monitoring outdoor areas around the home.
Main features
Weather proof housing to withstand long hours of outdoor operation
Powered by POE (Power-Over-Ethernet) for easy installation with option for DV12 adaptor
IR LED for clear night vision
H.265 encryption for efficient image compression
The Smart Force Gateway cloud platform is required for using this camera.

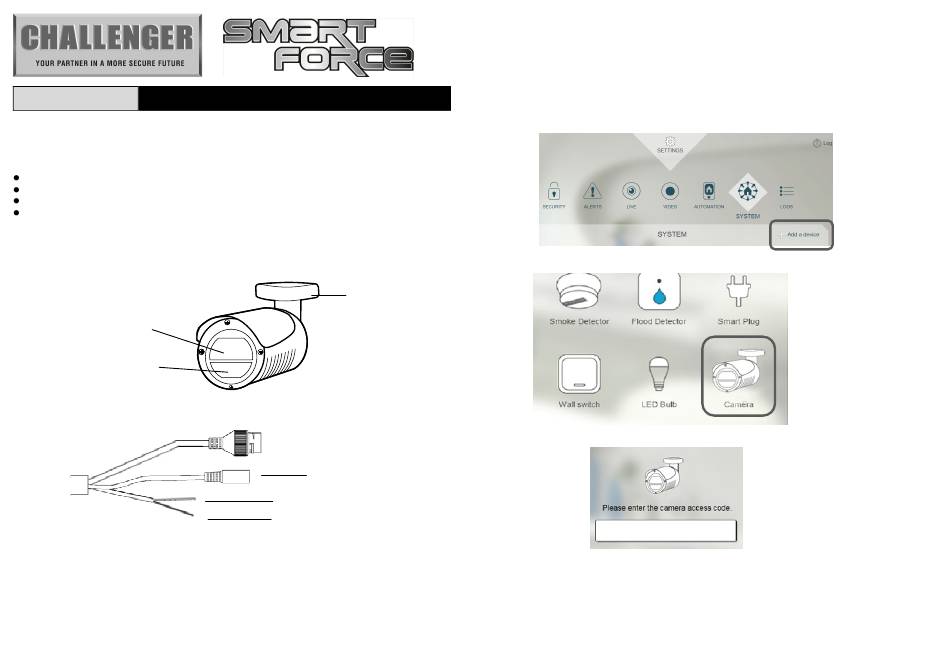

Product Overview
Camera lens
IR LED
Cables and connectors:
*Note : these wires are not used.
Powering up the camera
Method 1: By POE
Connect the camera's Ethernet connector to a cable from a POE-compatible equipment such as hub or
switch. Ensure that this cable provides access to internet.
Method 2: By DC adaptor (not provided)
Bracket
*Reset (Orange)
*Ground (Black)
1. Connect a 12V DC adaptor to the camera's DC jack. Note the Ampere and polarity of the DC adaptor
fits the power requirement shown on the camera's rating label.
IMPORTANT NOTE: Please ensure the camera leads and are connections are
mounted in a suitable IP rated box.
2. Connect the camera's Ethernet connector to a router with internet access.
Learning with Smart Force Gateway
1. Log into the Smart Force account from a web browser.
2. Select "System", then "Add a device".
3. Select "Camera".
4. Enter the Access Code found on a label on the camera and click "Next step"
5. The screen below will appear if the process is successful.
Challenger_ASFCAM2_Instructions_Rev01
Advertisement
Table of Contents
Summary of Contents for Challenger Smart Force ASFCAM2
- Page 1 1. Connect a 12V DC adaptor to the camera’s DC jack. Note the Ampere and polarity of the DC adaptor fits the power requirement shown on the camera’s rating label. IMPORTANT NOTE: Please ensure the camera leads and are connections are mounted in a suitable IP rated box.
- Page 2 hot preview. Mounting the Unit The camera can be mounted on a wall or ceiling. 1. Using the wrench supplied in the package, loosen the screw as indicated below. This will loosen the ball joint lock of the bracket. Note: for lock, and for unlock.
- Page 3 Errors and omissions excepted. These instructions have been carefully checked prior to publication. However, no responsibility can be accepted by Challenger for any 4. To download a copy of the video onto your PC, just click “Download Video”.
