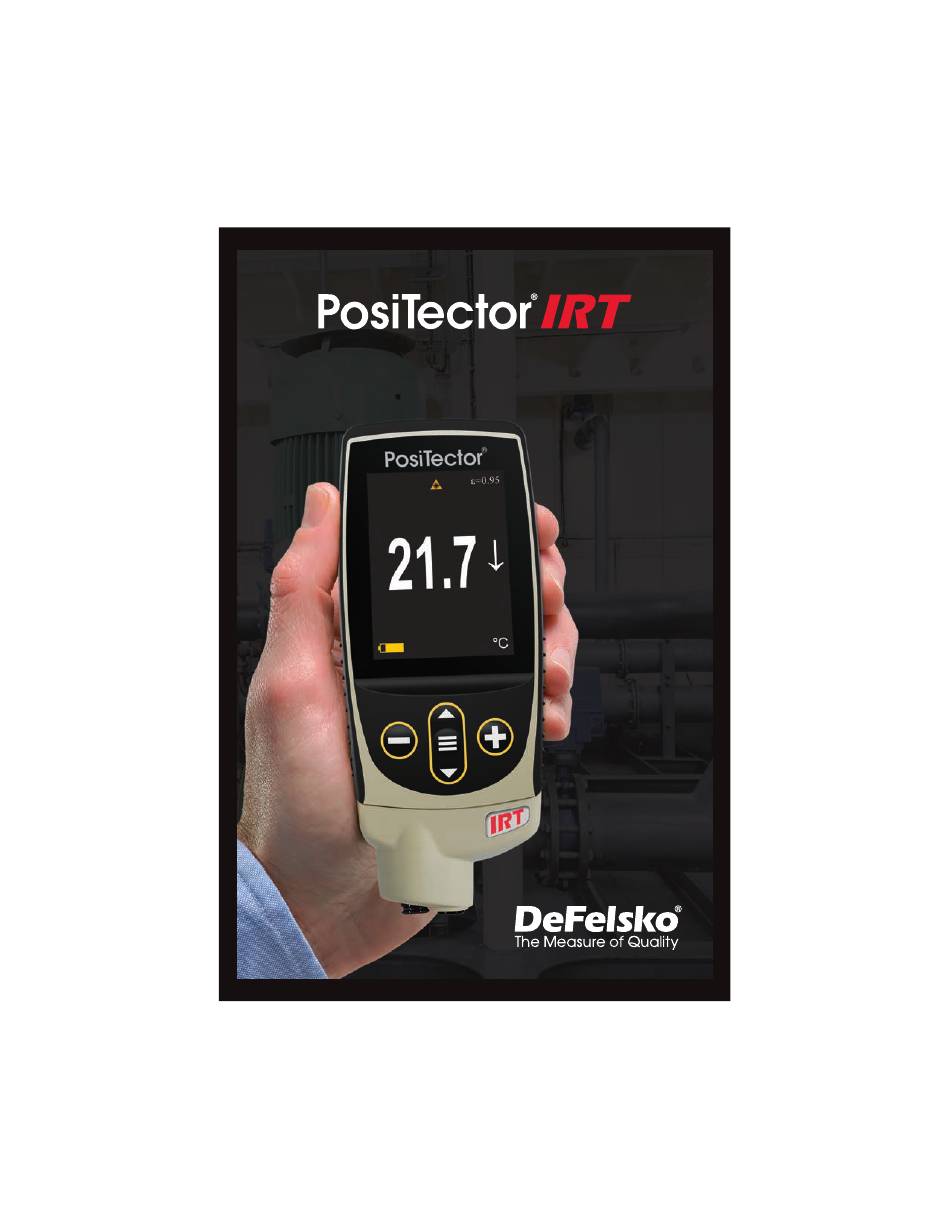

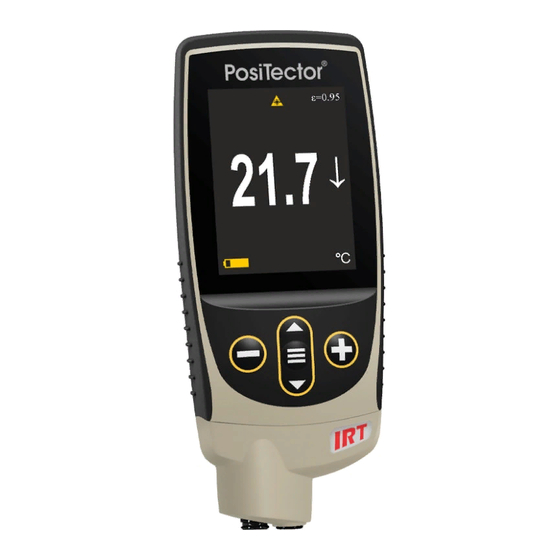

- Page 1 Infrared Thermometer Instruction Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Basic Operation
Introduction Introduction Basic Operation Basic Operation Press the button to power up the Gage. To conserve battery life, the gage will automatically go to sleep after 5 minutes of inactivity. While in Sleep Mode, the gage powers up significantly faster— convenient when moving between parts or locations. The gage will completely power off after 4 hours of inactivity. - Page 3 Button Functions — Normal Operation View Trend Chart Pause / Resume (Advanced only) Activate Laser Pointer Access the Menu (Down Button) Laser Pointer Press the button to toggle the laser pointer on/off. The laser helps aim the infrared temperature sensor. The symbol is dis- played on the screen when the laser is active.
-
Page 4: Menu Operation
Menu Operation To access the Menu, power-up the gage, then press the center navigation button . Either the keypad or touch screen can be used to navigate the menu. If desired, touch screen functionality can be disabled within the Setup menu (See Touch, pg. 7). Select a menu option by touching it, or use the but- tons to highlight the desired option and press... -
Page 5: Distance To Spot Ratio (D:s)
The ratio varies from 0 to 1, and each material has a specific emissivity associated with it. The PosiTector IRT has built in emissivity settings for certain materials as well as a user-adjustable emissivity option (pg. -
Page 6: Setup Menu
Setup Menu Setup Menu Units Converts the display from Celsius (°C) to Fahrenheit (°F) and vice versa. Reset Memory = OFF Bluetooth & Stream = OFF Statistics = OFF WiFi & Access Point = OFF HiLo Alarm = OFF USB Keyboard & Stream = OFF Trend Chart = None BLE Keyboard = OFF Display = None... - Page 7 Turns the trend chart on. The trend chart can also be turned on by pressing the Up navigation button from the main screen. Emissivity Sets the emissivity ratio for the PosiTector IRT infrared temperature sensor. Select Custom to manually adjust the emissivity value or to adjust to a known temperature.
-
Page 8: Statistics Mode
Flip Lock Disables the Auto Rotate feature by locking the display in its current orientation. Touch Allows the touch screen functionality to be disabled. All gage functions can also be controlled using the navigation buttons. Set Clock All measurements are date and time stamped (24-hour format) when stored into memory. -
Page 9: Memory Management
Memory Management Memory Management The PosiTector IRT has internal memory storage for recording measurement data. Stored readings can be reviewed on-screen or accessed via computers, tablets and smart phones. Each reading is date and time-stamped. Press the button to store a measurement. - Page 10 WiFi (Advanced models only) When USB Drive is enabled , the PosiTector gage uses a USB mass storage device class which provides users with a simple interface to retrieve stored data in a manner similar to USB flash drives and digital cameras. USB Drive is also required to import stored measurements into PosiSoft Desktop software (pg.
- Page 11 The above WiFi, USB and Bluetooth menus contain a Sync .net Now option. When selected, the Gage immediately synchronizes stored measurement data via its respective communication method (internet connection required). Alternatively, select Auto Sync .net from within the USB connect menu to automatically synchroniz e upon connection to a PC.
- Page 12 Send Batches Transfers selected batches to the PosiTector App. Send Batches is useful when switching between devices, as only readings and batches that have yet to be synchronized with any smart device are synchronized automatically. The Send Batches option is visible in the menu when the Gage is connected to a smart device running the PosiTector App.
- Page 13 Specifications Range Accuracy Resolution –70˚ to 380˚ C 0.1˚ C ± 1˚C + 1% Temperature Range @ 23˚ C ambient –94˚ to 716˚ F 0.1˚ F Laser Pointer Class 2 < 1mW Distance to Spot Ratio (D:S) 5.7:1 Emissivity Adjustable Response Time <500 µs (95% response) Spectral Response...
-
Page 14: Product Labeling
Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 DeFelsko Corporation 800 Proctor Avenue Ogdensburg, New York 13669-2205 USA GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 15: Laser Precautions
Do not open or modify the product. There are no user serviceable components within the product; any service or repair is to be performed only by DeFelsko Corporation personnel. No scheduled maintenance is necessary to maintain product in compliance with laser safety standards.
