Summary of Contents for Elinchrom Bridge
- Page 1 USER MANUAL Elinchrom Bridge Elinchrom LTD – Elinchrom Bridge – 06.2020 – 73057...
- Page 2 TABLE OF CONTENTS TECHNICAL DATA OPERATION INSTRUCTIONS TROUBLESHOOTING LEGAL INFORMATION NOTE: Check for product updates before using! Download the EL-Updater to update the Bridge: https://www.elinchrom.com/support_ downloads.php?q=software+updater...

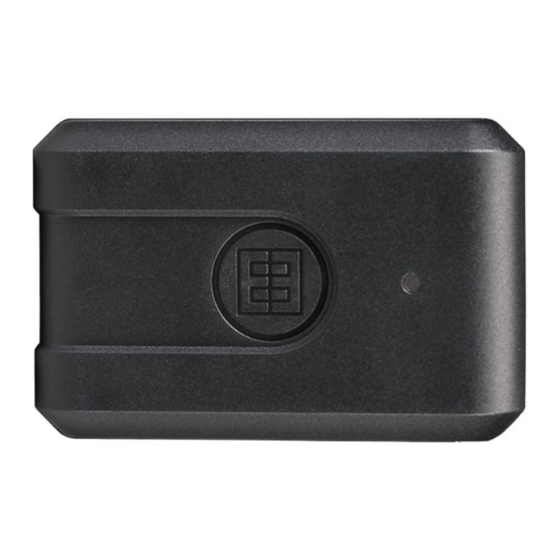

- Page 3 ELINCHROM BRIDGE CHARACTERISTICS The Elinchrom Bridge is a small and robust bridge between your EL flash units and your computer or mobile devices MAC / WIN or iOS / Android operating systems. It implements Bluetooth standards for easy pairing with mobile devices for IOS and Android and a new EL-Skyport software compatible with MAC or WIN operating systems via the USB connection.
- Page 4 Frequency 2.4 GHz Battery autonomy ~10h in h. Battery voltage 3.7V Battery cell Li-Po technology Battery energy 2.035Wh Battery charging time Charge voltage 5V via USB socket USB socket Micro USB, for charging, (specification) firmware updates and remote communication with MAC / WIN computer Dimensions (L x 80.4 x 51.8 x 18.4 mm / 3.1...
- Page 5 Install the Elinchrom App on your mobile device Switch the Bridge on. Open the Elinchrom APP The BLUE LED will light up on the Bridge and the App can scan now for compatible EL flash units. MAC / WIN Install the Elinchrom Studio software on your...
- Page 6 HOW TO CHARGE To charge the Elinchrom Bridge please connect it to your computer with a micro-USB cable (included). Alternatively, use the optional charger (International Charger Kit, article code 19276. Not included). FIRMWARE UPDATE To update your Elinchrom Bridge, simply press ON/OFF button for at least 5 secs.
- Page 7 LEGAL INFORMATION FCC CLASS B COMPLIANCE STATEMENT Product Elinchrom Bridge (19338), including the micro-US cable name Accessories International Charger Kit (19276) Trade name ELINCHROM Name of ELINCHROM LTD responsible Avenue de Longemalle 11 party 1020 Renens VD / Switzerland Phone...
- Page 8 Consult the dealer or an experienced radio/ television technician for help. Modifications: Changes or modifications not approved by ELINCHROM LTD can void the user’s authority to operate the equipment. Industry Canada (IC) Compliance Notice This device complies with Industry Canada license- exempt RSS standard(s).
