Touch Panel RGB LED Controller
Part No. touch-panel-rgb

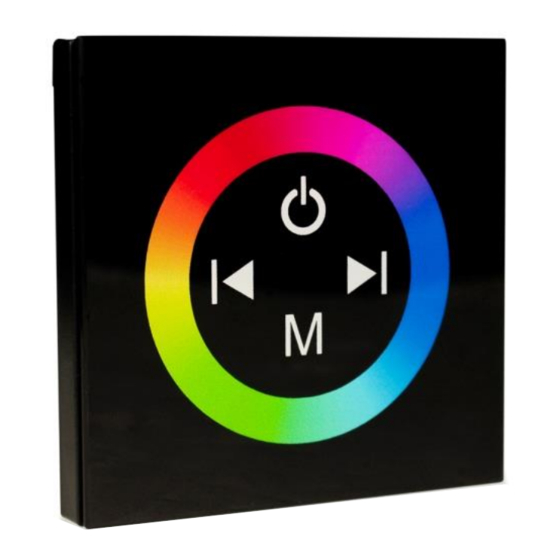

The Touch Panel RGB LED Controller is a sleek way to control RGB LED lighting in any
household or commercial building. Available in both a black and white finish, it is designed to be
easily mounted to any wall. In addition to the touch sensitive color wheel, this controller also has
10 preset colors and sequences built into the mode function.
RGB lighting gives you the ability to create the perfect ambiance for any occasion, especially
when used as variable accent lighting. Furthermore, the high pulse width modulation (PWM)
frequency of this controller eliminates flicker and creates a smooth output of LED light. Simply
connect RGB LED lights and power to the Touch Panel Controller and you are ready to go!
The controller is rated at 4 amps per channel, or 12 amps total, which equates to 144 watts at
12VDC or 244 watts at 24VDC. Our regular density RGB strip uses 30 watts per 5 meter reel.
Therefore, you can control up to 23 meters of regular density RGB strip with a single controller.
Copyright EnvironmentalLights.com
All Rights Reserved 10/8/18
Advertisement
Table of Contents
Related Manuals for EnvironmentalLights.com touch-panel-rgb
Summary of Contents for EnvironmentalLights.com touch-panel-rgb
- Page 1 EnvironmentalLights.com Touch Panel RGB LED Controller Part No. touch-panel-rgb The Touch Panel RGB LED Controller is a sleek way to control RGB LED lighting in any household or commercial building. Available in both a black and white finish, it is designed to be easily mounted to any wall.
- Page 2 Specifications 3.45” x 3.38” x 1.42” Dimensions: 88 mm x 86 mm x 36 mm Output Frequency: 3225 Hertz Input Voltage: 12-24 VDC Maximum Load: 4A per channel, 12A total Maximum Power: 144W/288W (12VDC/24VDC) Copyright EnvironmentalLights.com All Rights Reserved 10/8/18...
- Page 3 The touch wheel allows you to easily select the perfect color, with 64 distinct touch points. Modes Mode Function Brightness Speed Number Adjustable? Adjustable? Static Red Static Green Static Blue Static Yellow Static Purple Static Cyan Static White 7 Color Step 3 Color Fade 7 Color Fade Copyright EnvironmentalLights.com All Rights Reserved 10/8/18...
- Page 4 Mount the panel using the two mounting holes (highlighted in red). Re-attach the flat ribbon cable to the connector, and snap the unit back together. The Touch Panel RGB LED Controller is compatible with the Square Junction Box with 2 Screws. Copyright EnvironmentalLights.com All Rights Reserved 10/8/18...
- Page 5 Once you have tested the system successfully, you are ready to install it. We recommend you install LEDs, electronic controls and dimmers in such a way that you have access to them in case they fail. All electrical components can fail. Copyright EnvironmentalLights.com All Rights Reserved 10/8/18...
