OHM-STAT
CT-8700
¥
OWNERS MANUAL & OPERATION GUIDE

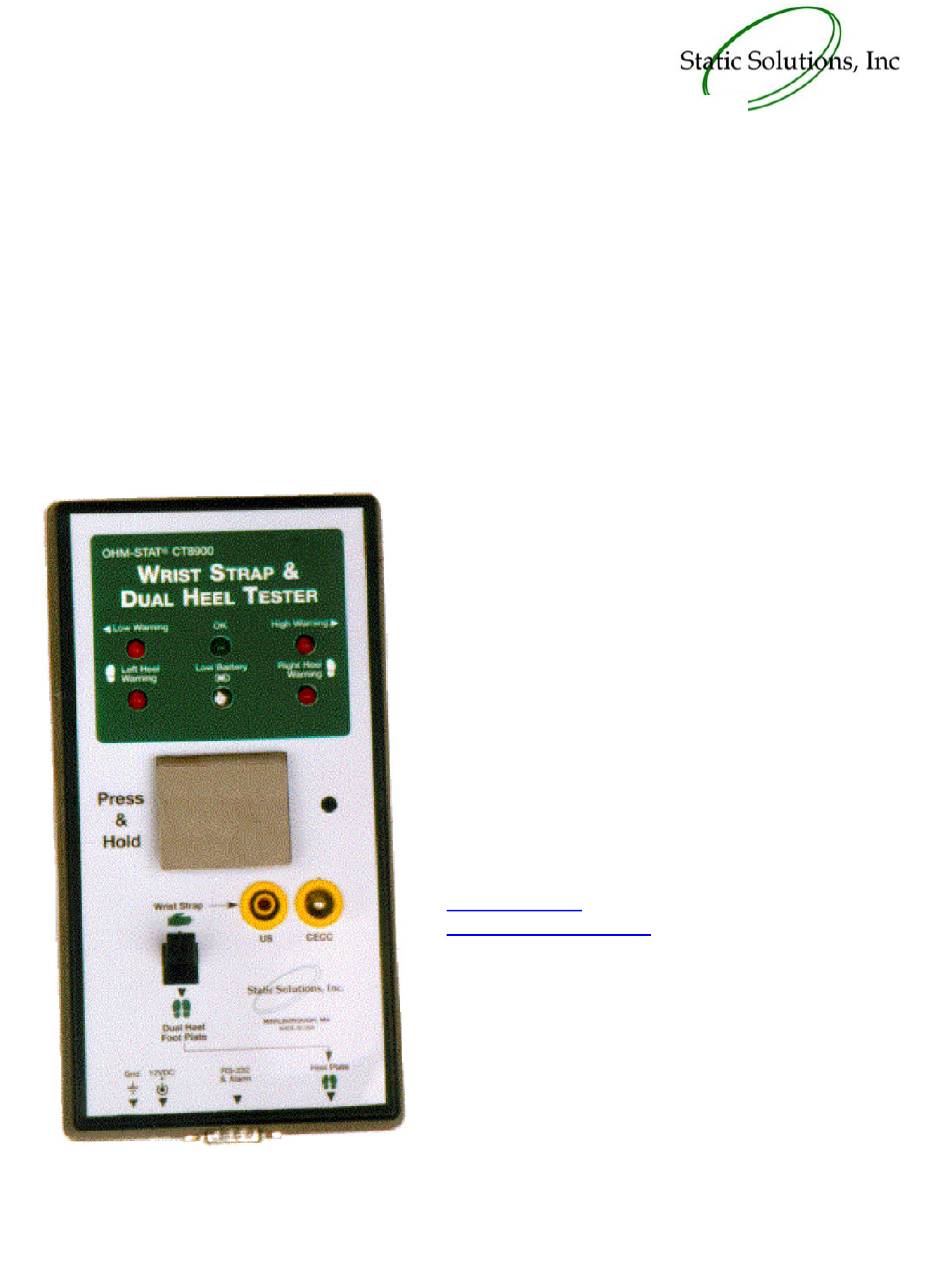

WRIST AND FOOT STRAP COMBO TESTER KIT
Includes meter, NIST certificate, battery, manual, power cord.
Stand, and plate are optional.
For OHM-STAT CT-8700 Wrist and Foot Strap Combo Tester Kit
SERIAL NUMBER:
COMPANY:
PRICE: $25.00 US
Email: contactus@staticsolutions.com
www.staticsolutions.com
Static Solutions Inc.
331 Boston Post Road-East
Marlboro, Massachusetts 01752
Tel: 508.480.0700
FAX: 508.485.3353
Static Solutions CT-8700 Combo Tester Instructions
1
6/22/2008
