Summary of Contents for SUNTERRA 1801 Series

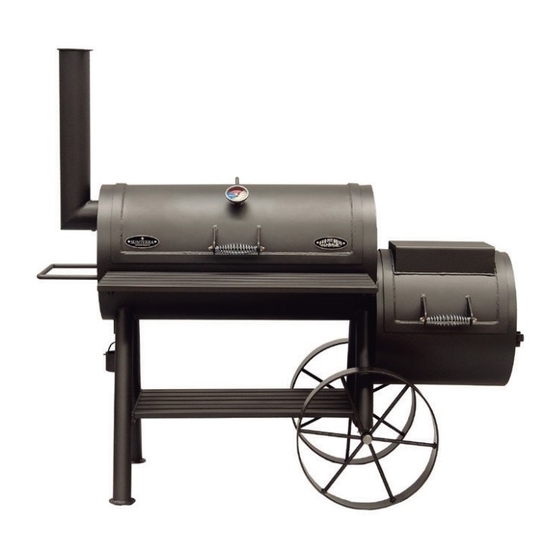

- Page 1 OWNERS MANUAL BBQ SMOKERS AND WOOD FIRED OVENS...
- Page 2 Owner’ Manual Table Of Contents BBQ Smokers Series, Features Specifications Assembly Wood Fired Outdoor Oven Series, Features Specifications Assembly 10-11-12 Safety 13-14 Care & Maintenance HAND CRAFTED GRILLS...
- Page 3 SERIES 1801 2001 2401 2075 BBQ SMOKERS...
- Page 4 FEATURES • Metal Thickness: 3/16" Gauge • Fully Welded Construction • Door Counter Weight • Heavy Duty Hinged lids • Warming plate - 14 1/2" x 10" • Probe Port • Cooking Grate 3/8" round • Log Grate / Charcoal Heavy Duty Grate expanded metal (included) •...
-
Page 5: Specifications
SPECIFICATIONS 1801 2001 2401 2075 65” 78” 84” 95” OVERALL WIDTH (1651) (1981) (2133) (2413) INCHES (MM) OVERALL LENGTH 35” 37” 46” 37” INCHES (MM) (889) (940) (1168) (940) OVERALL HEIGHT 58” 59” 67” 81” INCHES (MM) (1473) (1499) (1702) (2057) WEIGHT LBS (KG) - Page 6 ASSEMBLY Tools required 5/32” Place chimney, thread bolt and tighten with nut. Place thermometer, thread stem and tighten with nut. Hang grease cup (1) Place fuel grates, cooking grates, and prep shelf. Chech over each step of the assembly when performed BBQ SMOKERS...
- Page 7 SERIES 1403 1401NS 1401NSFLIN Hearth Insert WOOD FIRED OUTDOOR OVEN...
- Page 8 FEATURES • Thickness: 14 Gauge • 380 SQ. in. (19 x 20) cooking area • Fuel Types: Wood / Charcoal • Finish: Satin Black & Red • Removable Fire Pan for easy cleaning • High-Temp Gauge • Heavy Duty Storage Shelf •...
- Page 9 SPECIFICATIONS 1401NS 1401 1403 SERIES 14 OVERALL WIDTH INCHES (MM) 30” 55” 55” (762) (1397) (1397) OVERALL LENGTH INCHES (MM) 32” 32” 32” (813) (813) (813) OVERALL HEIGHT INCHES (MM) 52” 82” 82” (1321) (2082) (2082) WEIGHT LBS (KG) (112) (159) (152) WOOD FIRED OUTDOOR OVEN...
- Page 10 ASSEMBLY Tools required 3/4” Wrench & Allen Wrench 7/32” Place 4 legs on the corners of top frame Place bottom shelf and thread bolts through legs and into the shelf Lock both locking caster, to keep the cart stationary. WOOD FIRED OUTDOOR OVEN...
- Page 11 ASSEMBLY Organize enough Helpers. Place the oven on top of the cart assembled. Widest side to the front. (Caution - heavy). Locate thermometer, screw and tighten into door. Place side shelves inserting into the tubes at the sides of the cart. Step 1 Step 2 Step 3...
- Page 12 ASSEMBLY Component placement Upper Chamber 1 Stone 2 Grease Tray 3 Grate Place the flame Diffuser on the angle brackets from the top door. Component placement Lower Chamber Slide Ash Add your fuel to the fire tray onto the oven floor (may add firebrick onto Chamber and light.
-
Page 13: Important Safety Warnings
SAFETY IMPORTANT SAFETY WARNINGS READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR FIRE PIT, GRILL OR OVEN WARNING • Only use the outdoor cooking equipment on a hard, level, noncombustible, stable surface (concrete, ground, etc.) capable of supporting the weight of the unit. DO NOT use on wooden or other surfaces that could burn. •... -
Page 14: Preparation For Use & Lighting Instructions
BEFORE OPERATING YOUR FIRE PIT / GRILL CURING YOUR GRILL Prior to your first use of the Sunterra Outdoor Cooking Equipment, follow the instructions below carefully to cure your grill. Curing your grill will minimize damage to the exterior finish, as well as rid the grill of paint odor that can impart unnatural flavors to the first meal prepared on your Sunterra Casual Fire Pit &... -
Page 15: Proper Care And Maintenance
Warranty coverage does not extend to products shipped outside of the continental United States. Sunterra Outdoor Products reserves the right to repair or replace, at the sole option of the manufacturer, any Sunterra Outdoor Products presented to them which they deem to have been defective. Sunterra Outdoor Products also reserves the sole right to distinguish between burnout, rust, misuse, or problems arising from neglect of reasonable and necessary care and maintenance.
