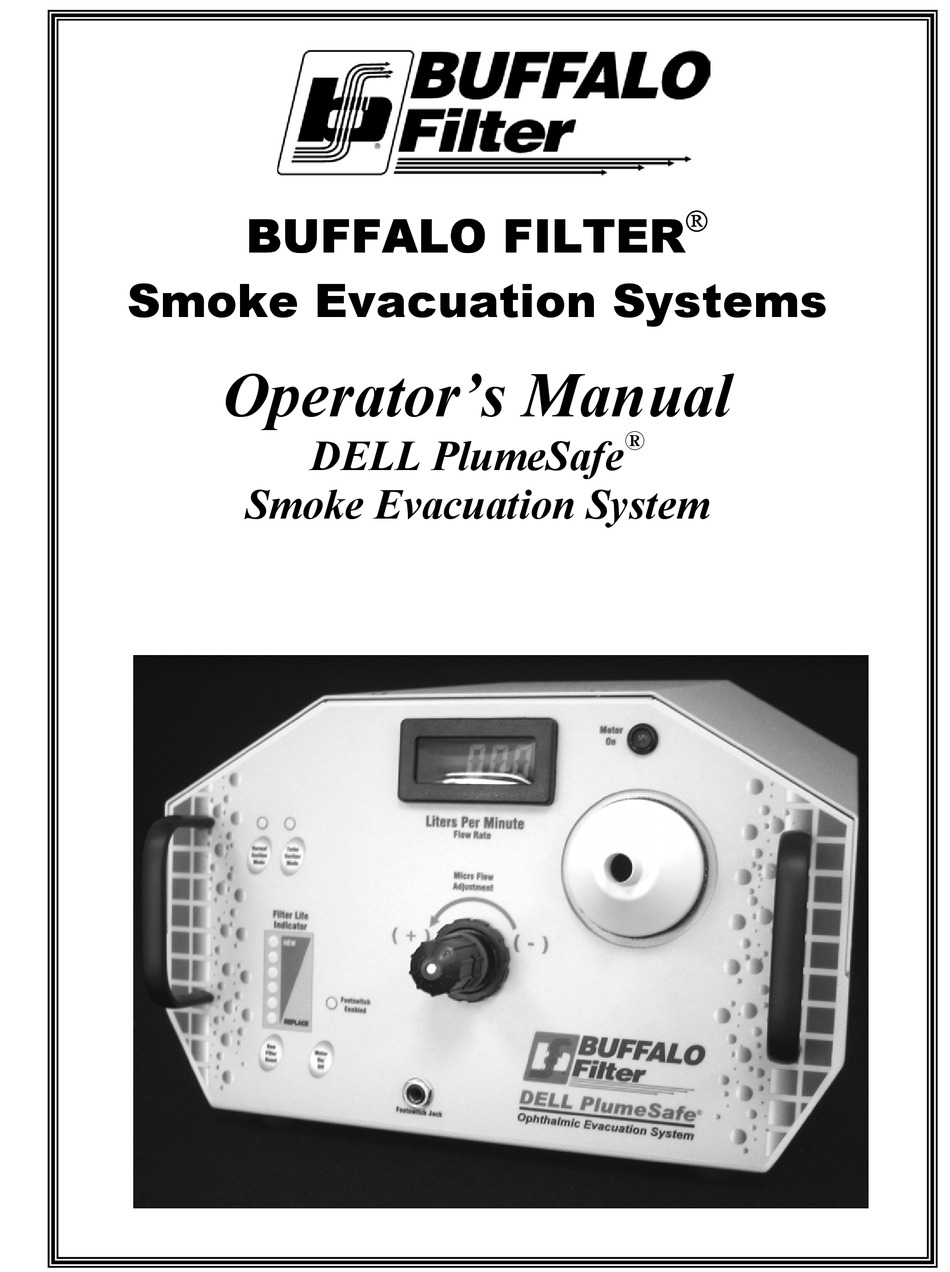

- Page 1 BUFFALO FILTER Smoke Evacuation Systems Operator’s Manual ® DELL PlumeSafe Smoke Evacuation System...
- Page 2 For a period of one (1) year following the date of delivery, BUFFALO FILTER warrants the Dell PlumeSafe® Evacuation System against any defects in material or workmanship. For a period of one (1) year following the date of delivery. BUFFALO FILTER will repair or replace (at BUFFALO FILTER’S option) the same without charge, provided that routine maintenance as specified in this manual has been performed using replacement parts...
-
Page 3: Table Of Contents
Table of Contents Section Title SYSTEM DESCRIPTION Introduction Inspection Operational Information Cautions and Warnings OPERATING INSTRUCTIONS System Controls ViroSafe Filter Instructions Set-up and Operation Specifications MAINTENANCE General Maintenance Information Cleaning Periodic Inspection Troubleshooting CUSTOMER SERVICE Equipment Return Ordering Information TERMS &... -
Page 4: System Description
System Description 1.1 Introduction The Dell PlumeSafe® Smoke Evacuation Systems is designed to remove smoke and noxious odors produced by surgical ablation during laser procedures. The Dell PlumeSafe Smoke Evacuation Systems have been designed with a precision centrifugal action pump. The ultra-quiet motor is used to draw the surgical smoke from the surgical site through the vacuum tubing and into the ViroSafe... - Page 5 ® ® BUFFALO FILTER Dell PlumeSafe Smoke Evacuation System...
-
Page 6: Operational Information
1.3 Operational Information The operational information contained in this section is intended for the customer review of regulatory issues. The information pertains to the use of the products both domestically and internationally: 1. The BUFFALO FILTER Dell PlumeSafe Smoke Evacuation System(s) complies with IEC601.1 electrical specifications in the following systems: 100-120V 50/60Hz, 2. - Page 7 WARNINGS: The BUFFALO FILTER ViroSafe Filters are completely disposable. Please handle these disposable filters according to your local codes or regulations and hospital policy. These filters may be disposed of or incinerated, whichever is appropriate for your institution. • The ViroSafe Filter should be changed according to the prescribed life of the filter. The ViroSafe Filter, used with the Dell PlumeSafe Smoke Evacuation System(s), should not be used for more than the time specified for each filter.
- Page 8 There are no user serviceable components in the Dell PlumeSafe Smoke Evacuation System(s). Refer service to qualified service personnel. Use only with the power cord provided and always plug into a grounded outlet. CAUTIONS: • Do not block either the tubing or the filter. If either becomes occluded or significantly restricted, the motor/blower may overheat and cause the unit to fail.
-
Page 9: Operating Instructions
Operating Instructions 2.1 System Controls The electronic system controls on the Dell PlumeSafe Smoke Evacuation System(s) are designed to be easy to understand and simple to use. The membrane control panel contains the motor on/off switch, suction power adjustment, footswitch enabled, filter life reset button, filter life indicator, TURBO and normal modes (refer to page 2.5). -
Page 10: Virosafe Filter Instructions
• FILTER LIFE INDICATOR (Membrane Control Panel) The filter life indicator on the membrane control panel provides a visual indication of the status of the life of the filter in use. The filter life indicator for the Dell PlumeSafe Smoke Evacuation System(s) ViroSafe filter is one hour. -
Page 11: Set-Up And Operation
Filter Removal Instructions: 1. After the ViroSafe Filter has been exhausted and requires changing, turn the smoke evacuation system off and disconnect any accessory tubing attached to the filter. 2. Pull the ViroSafe Filter from the smoke evacuation system and dispose of in accordance with facility biohazard practice and policy. -
Page 12: Specifications
2.4 Specifications BUFFALO FILTER P/N CONFIGURATION Dell ViroSafe Filters 3/8” port Filter(s) Particle size, µm Filter life Filter life indicator ViroSafe Filter P/N MAX. FLOW SETTING Variable flow control Motor, hp (kW) HOSES/TUBING NOISE LEVEL, dBA FOOTSWITCH SAFETY FEATURES DISPLAYS Data displayed VOLTAGE AVAILABLE... - Page 13 Dell PlumeSafe Smoke Evacuation System Electronic Footswitch FS10003 ® BUFFALO FILTER 1. Motor Suction ON Indicator 2. Liter Per Minute Flow Rate Indicator 3. TURBO Suction Mode 4. Normal Suction Mode 5. Proximal evacuation hose connection to filter 6. Filter Receptacle with filter 7.
-
Page 14: Maintenance
3.1 General Maintenance Information This section contains information for ordinary upkeep of the Dell PlumeSafe Smoke Evacuation System(s). While the system has been designed and manufactured to high industry standards, it is recommended that periodic inspection and performance testing be performed by a qualified Biomedical Technician to ensure continued safe and effective operation. -
Page 15: Customer Service
4.1 Equipment Return For the quickest response to your service needs, please follow these procedures: Step 1: Write down model and the serial number of the Dell PlumeSafe Smoke Evacuation System. Step 2: Call Customer Service at the toll free or local number listed and describe the problem. Step 3: If the problem cannot be resolved over the phone and the equipment must be returned for repair, you must obtain a “Return Goods Authorization”... -
Page 16: Terms & Warranty
Terms & Warranty SPECIFICATIONS: Specifications are subject to change without notice. SHIPMENT OF ORDER: Buffalo Filter will try to accommodate individual customer requests for shipping method. Buffalo Filter reserves the right to decide shipping method on prepaid orders. Care is exercised in the checking and packaging of all merchandise to avoid error, but should discrepancies arise, claims should be made within 24 hours after delivery. - Page 17 2004 BUFFALO FILTER 595 Commerce Drive Buffalo, New York USA 14228 (716) 835-7000 or (716) 835-3414 fax Division of Medtek Devices, Inc. www.buffalofilter.com Customer Service: 800-343-2324 (U.S. Only) – 716-835-7000...
