- Page 1 2 CHANNEL POWERAMP THE ULTIMATE SUBWOOFER TOOL USER MANUAL TA 2D |2 CHANNEL POWERAMP Thank you for purchasing a professional KS AUDIO product. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. ...
- Page 2 TA 2D |2 CHANNEL POWER AMP To prevent electrical shock, do not SHOCK HAZARD remove top or bottom covers. No DO NOT OPEN! User serviceable parts inside. Refer servicing to qualified service personnel. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4.
-
Page 3: Table Of Contents
......................8 UDIO RANSFORMER ..........................8 OWER UPPLY ............................8 OOLING ............................. 8 ROTECTION DANTE ..........................9 OPTION KS R ........................9 EMOTE ONTROL ............................. 9 DISPLAY ............................9 CONTROLS .......................... 9 HANGING VALUES MENU C ................... 10 ONFIGURATION VERVIEW DIMENSIONS ........................ -
Page 4: Prologue

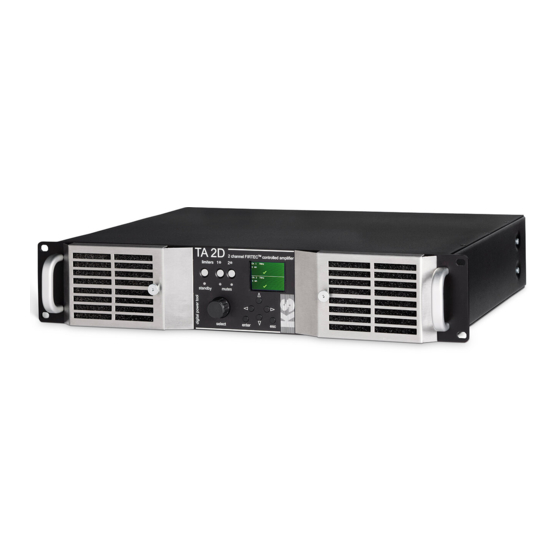

Thank you very much for your confidence in our product line-up and purchasing professional KS AUDIO sound reinforcement tools ! The TA 2D is a 2,000 watt per channel at 4 ohms, 2 channel amplifier with MOSFET technology. This manual should help you to easily use this product. -
Page 5: Front & Rear Panels
Note: Please check when opening the package that there is no obvious damage due to shipment, which could be harmful to the product or the operator. The TA 2D is a 2,000 watt per channel at 4 ohms, 2 channel amplifier with MOSFET technology. ... -
Page 6: Quickstart
We recommend to not using any other connectors than original Neutrik® products. The TA 2D is a 2 channel power amplifier with a built-in digital controller module. When selecting a new program, both the inputs and the outputs are appropriately configured in the correct set up. -
Page 7: Operation
Digital AES/EBU lines should be run with 110 Ohm cable impedance. You can daisy chain as many products you wish, as the XLR male outputs feature an active line transmitter. KS AUDIO recommends employing "balanced input connections”. ... -
Page 8: Power-Outputs /Speakon
The handling of the signal, like equalization, crossover and corrections of the transient attitudes of the components, are taking place entirely in the integrated digital FIR controller. KS AUDIO is offering numerous programs assuring best results no matter which driver configuration has to be handled. All programs feature the... -
Page 9: Output Mute Switches
POWER SUPPLY The KS AUDIO TA 2D power amp uses a state-of-the-art, heavy duty and wide-range switch mode design, with Power-Factor-Correction (PFC) built in. This power supply will accept any AC input from 100–240V, 50/60Hz. It is connected via a Blue Neutrik®-powerCON AC connector with protective leader. -
Page 10: Dante Option
CHANGING VALUES After turning on your amplifier, the TA 2D display will show the KS logo for some seconds. Then you will see the status window. For a moment you can see which KS loudspeaker and in which operating mode the TA 2D is configured. -
Page 11: Menu Configuration Overview
TA 2D |2 CHANNEL POWER AMP MENU CONFIGURATION OVERVIEW TA 2D |OPERATING INSTRUCTIONS 10 | P a g e ... -
Page 12: Dimensions
TA 2D |2 CHANNEL POWER AMP DIMENSIONS ... -
Page 13: Specifications
TA 2D |2 CHANNEL POWER AMP SPECIFICATIONS TA 2D (integrated controller module) number of channels frequency response + / -1dB (without 5 – 50,000Hz controlling) output power per channel 4000W peak at 4 Ohms output impedance min. 2 ohms per channel power supply switch mode power supply with PFC... -
Page 14: Cleaning Of Amplifier
It has however been shown that train or airplane transport without further packaging creates un- due stress on KS products. We recommend for such situations shock resistant flight cases. Significant contamination by dust, etc. is dangerous for Electronic assemblies as it may cause a short circuit. -
Page 15: Limited Warranty
Exclusion of manufacturer’s warranty whenever devices opened respectively customized by third parties non factory-authorized The warranty card shipped within the package is subject of all repairs done in KS AUDIO headquarter or factory-authorized service points. Freight costs generally to be paid by customer... -
Page 16: Ec Declaration Of Conformity
This declaration covers: order code 50.020 – KS AUDIO TA 2D - in ascending order from serial no. 1001 Relevant EC respectively EU directives: low voltage directive (LVD) 2006/95/EC furthermore electromagnetic compatibility directive (EMC) -
Page 17: Appropiate Use Of Your Equipment
TA 2D |2 CHANNEL POWER AMP APPROPIATE USE OF YOUR EQUIPMENT Although KS AUDIO professional products represent heavy duty tools for daily use, please refer to the following information of operating manual under all circumstances. Please avoid water condensation at any electronic device under all circumstances ! ... -
Page 18: Appendix
This results in the best programs with optimal results for each driver. KS AUDIO developed a FIR® (Finite Impulse Response) technology to create the inverse frequency response and operate this via an onboard DSP engine comparing input signals against programs pertinent to the cabinet and its components, in order to execute a complex digital filtering process. - Page 19 Instead of a phase shift as found in an analog cross- over, in the KS AUDIO digital process, the time domain of the low pass signal is only considered, and the rest of the process follows this.
-
Page 20: Notes
TA 2D |2 CHANNEL POWER AMP NOTES CONTACT Model KS BESCHALLUNGSTECHNIK GMBH WESTENDSTRASSE 1 D - 67310 HETTENLEIDELHEIM Serial Number fon +49 6351 12744-0 fax +49 6351 12744-25 www.ks-audio.de Purchase Date TA 2D |OPERATING INSTRUCTIONS 19 | P a g e ...
